CE110R-AWMDEW (1997)

Toyota Corolla Sed/Wg

Production Apr 1997 - Oct 1999
Engine 2CE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9704-9910)

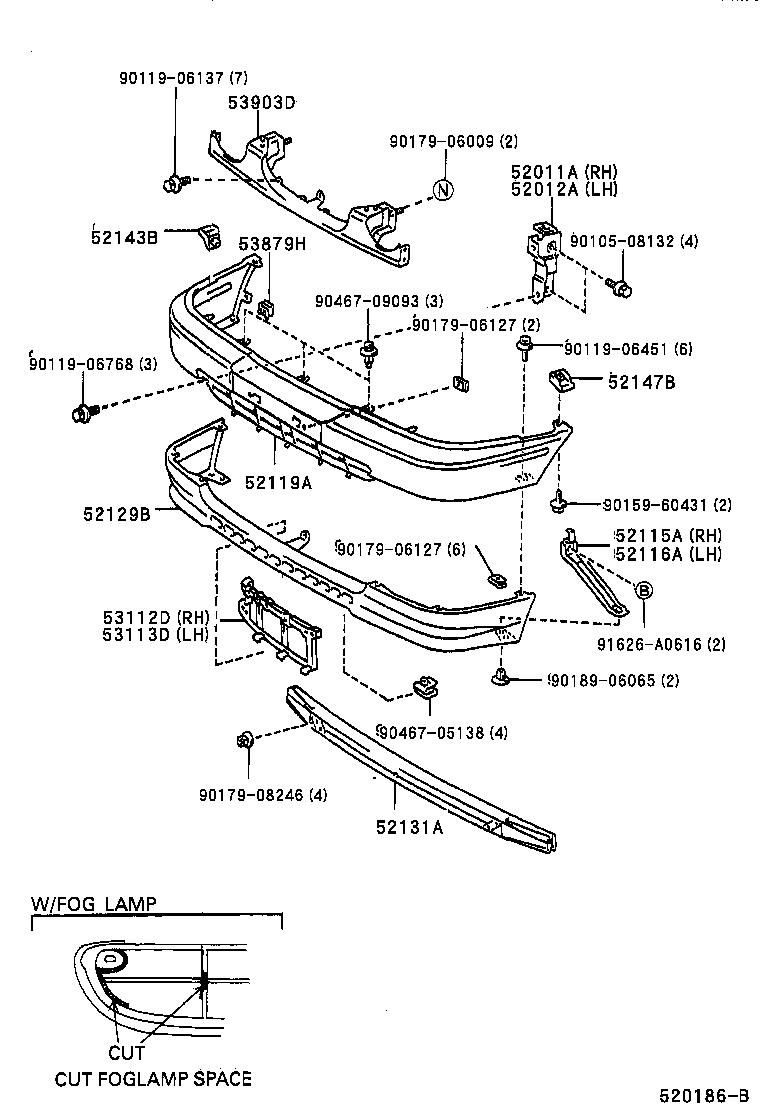

Click highlighted areas on diagram

diagram 52011A 52012A 52115A 52116A 52119A 52129B 52131A 52143B 52147B 53112D 53113D 53879H 53903D 9010508132 9011906137 9011906451 9011906768 9015960431 9017906009 9017906127 9017906127 9017908246 9018906065 9046705138 9046709093 91626A0616
Part # Description Qty Price
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52141-12430

AE11#,CE110,EE11#

 1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52142-12360

AE11#,CE110,EE11#

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-12320

AE11#,CE110,EE11#

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-12290

AE11#,CE110,EE11#

 1
52119A - COVER, FRONT BUMPER
52119-1E020

AE11#,CE110,EE11#

 1
52129B - COVER, FRONT BUMPER, LOWER
52129-12070

AE11#,CE110,EE11#

 1
52131A - REINFORCEMENT, FRONT BUMPER
52131-12180

AE11#,CE110,EE11#

 1
52143B - BRACKET, FRONT BUMPER SIDE
52143-12350

AE11#,CE110,EE11#

 2
52147B - BRACKET, FRONT BUMPER MOUNTING
52147-12190

AE11#,CE110,EE11#

 2
53112D - GRILLE, RADIATOR, LOWER RH
53112-12090

AE11#,CE110,EE11#

 1
53113D - GRILLE, RADIATOR, LOWER LH
53113-12090

AE11#,CE110,EE11#

 1
53879H - RETAINER, FRONT FENDER LINER
53879-12010

AE11#,CE110,EE11#

 2
53903D - EXTENSION SUB-ASSY, FRONT BUMPER, UPR
53903-12080

AE11#,CE110,EE11#

 1
Common parts
90105-08132
90119-06137
90119-06451
90119-06768
90159-60431
90179-06009
90179-06127
90179-08246
90189-06065
90467-05138
90467-09093
91626-A0616
