CE110R-AWMDEW (1997)

Toyota Corolla Sed/Wg

Production Apr 1997 - Oct 1999
Engine 2CE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )

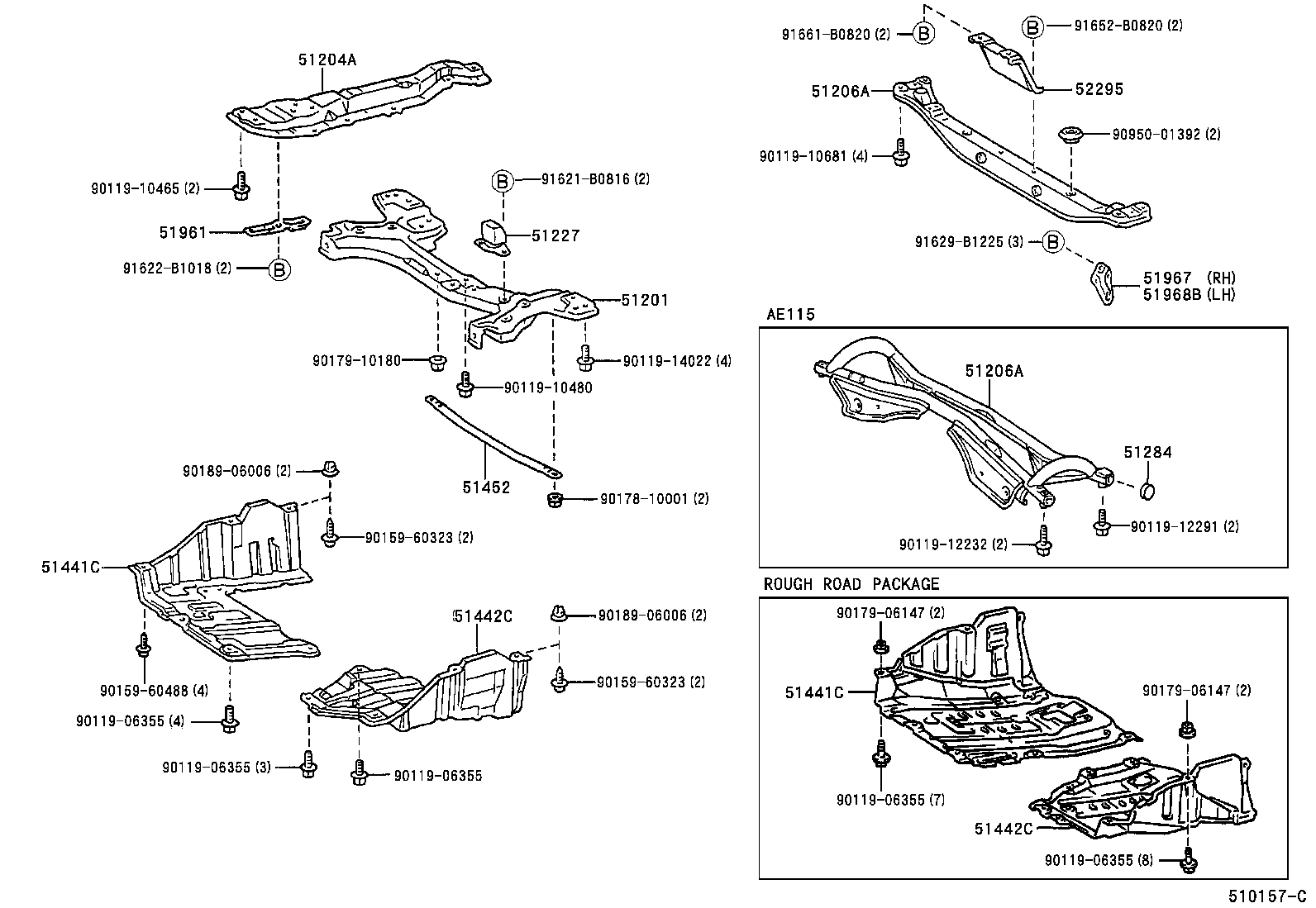

Click highlighted areas on diagram

diagram 51201 51204A 51206A 51206A 51227 51284 51441C 51441C 51442C 51442C 51452 51961 51967 51968B 52295 9011906355 9011906355 9011906355 9011906355 9011906355 9011910465 9011910480 9011910681 9011912232 9011912291 9011914022 9015960323 9015960323 9015960488 9017810001 9017906147 9017906147 9017910180 9018906006 9018906006 9095001392 91621B0816 91622B1018 91629B1225 91652B0820 91661B0820
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-12380

AE111,CE110,EE11#

 1
51204A - MEMBER SUB-ASSY, ENGINE MOUNTING, CENTER
51204-12080

AE111,CE110,EE11#

 1
51204-12081

AE111,CE110,EE11#

 1
51206A - MEMBER SUB-ASSY, REAR SUSPENSION
51206-12040

AE111,CE110,EE11#

 1
51206A - MEMBER SUB-ASSY, REAR SUSPENSION
51206-12040

AE111,CE110,EE11#

 1
51227 - WEIGHT, FRONT SUSPENSION MEMBER DAMPER
51227-12040

AE111,CE110,EE11#

 1
51441C - COVER, ENGINE UNDER, RH
51441-12160

AE11#,CE110,EE11#

 1
51441C - COVER, ENGINE UNDER, RH
51441-12160

AE11#,CE110,EE11#

 1
51442C - COVER, ENGINE UNDER, LH
51442-12120

AE11#,CE110,EE11#..5F

 1
51442C - COVER, ENGINE UNDER, LH
51442-12120

AE11#,CE110,EE11#..5F

 1
51452 - BRACE, FRONT CROSSMEMBER TO FRONT SUSPENSION MEMBER
51452-12010

AE111,CE110,EE111..WG

 1
51961 - HOOK, NO.1
51960-12060

AE11#,CE110,EE11#

 1
51967 - HOOK, TRANSPORT, REAR
51967-12220

AE11#,CE110,EE11#

 1
51968B - HOOK, TRANSPORT, REAR LH
51968-12110

AE11#,CE110,EE11#

 1
52295 - BRACE, REAR SUSPENSION MEMBER, RH
52295-12020

AE111,CE110,EE111..WG

 1
Common parts
90119-06355
90119-10465
90119-10480
90119-10681
90119-12232
90119-12291
90119-14022
90159-60323
90159-60488
90178-10001
90179-06147
90179-10180
90189-06006
90950-01392
91621-B0816
91622-B1018
91629-B1225
91652-B0820
91661-B0820
