CE110R-AWMDEW (1997)
Toyota Corolla Sed/Wg
(9704- )CE110
S50
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105 - CASE SUB-ASSY, TRANSAXLE(MTM) | ||||
| 31105-32070 |
CE110 |
1 | ||
| 31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE) | ||||
| 90311-30006 |
AE115,CE110 |
1 | ||
| 31105F - PLUG(FOR TRANSAXLE CASE) | ||||
| 90341-10065 |
CE110 |
1 | ||
| 33449 - MAGNET, TRANSMISSION | ||||
| 33449-32020 |
CE110 |
1 | ||
| 33481 - GEAR, SPEEDOMETER DRIVE (MTM) | ||||
| 33481-32060 |
CE110 N=25 |
1 | ||
| 41141F - RETAINER, FRONT DIFFERENTIAL SIDE BEARING | ||||
| 41101-32010 |
CE110 |
1 | ||
| 41141G - RING, O(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER) | ||||
| 90301-63004 |
CE110 |
1 | ||
| 41141J - BOLT(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER) | ||||
| 90105-08061 |
CE110 *8-1.25PX26.5-23.5 |
6 | ||
| 41221 - GEAR, FRONT DIFFERENTIAL RING | ||||
| 41221-32080 |
CE110 |
1 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90105-11040 |
AE111,CE110..5F |
8 | ||
| 41311 - CASE, FRONT DIFFERENTIAL | ||||
| 41301-32061 |
CE110 |
1 | ||
| 41301-32060 |
CE110 |
1 | ||
| 41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR) | ||||
| 90564-45001 |
CE110 T=1.90,MARK 01 |
1 | ||
| 90564-45003 |
CE110 T=2.00,MARK 03 |
1 | ||
| 90564-45005 |
CE110 T=2.10,MARK 05 |
1 | ||
| 90564-45011 |
CE110 T=2.40,MARK 11 |
1 | ||
| 90564-45004 |
CE110 T=2.05,MARK 04 |
1 | ||
| 90564-45010 |
CE110 T=2.35,MARK 10 |
1 | ||
| 90564-45013 |
CE110 T=2.50,MARK 13 |
1 | ||
| 90564-45007 |
CE110 T=2.20,MARK 07 |
1 | ||
| 90564-45014 |
CE110 T=2.55,MARK 14 |
1 | ||
| 90564-45008 |
CE110 T=2.25,MARK 08 |
1 | ||
| 90564-45002 |
CE110 T=1.95,MARK 02 |
1 | ||
| 90564-45006 |
CE110 T=2.15,MARK 06 |
1 | ||
| 90564-45015 |
CE110 T=2.60,MARK 15 |
1 | ||
| 90564-45017 |
CE110 T=2.70,MARK 17 |
1 | ||
| 90564-45012 |
CE110 T=2.45,MARK 12 |
1 | ||
| 90564-45016 |
CE110 T=2.65,MARK 16 |
1 | ||
| 90564-45018 |
CE110 T=2.75,MARK 18 |
1 | ||
| 90564-45009 |
CE110 T=2.30,MARK 09 |
1 | ||
| 90564-45019 |
CE110 T=2.80,MARK 19 |
1 | ||
| 41311D - SHIM (FOR FRONT DIFFERENTIAL CASE FRONT) | ||||
| 90564-45011 |
CE110 T=2.40,MARK 11 |
1 | ||
| 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR | ||||
| 90366-40016 |
CE110 |
1 | ||
| 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE | ||||
| 90366-40064 |
CE110 |
1 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-32010 |
CE110 |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-30011 |
CE110 |
2 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-06058 |
EE111..3FC;AE111,CE110 |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-32020 |
CE110 |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-32010 |
CE110 |
2 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-32010 |
CE110 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-22030 |
EE111..3FC;AE111,CE110..5F T=1.10,MARK 03 |
2 | ||
| 41361-22020 |
EE111..3FC;AE111,CE110..5F T=1.00,MARK 02 |
2 | ||
| 41361-22040 |
EE111..3FC;AE111,CE110..5F T=1.20,MARK 04 |
2 | ||
| 41361-22150 |
EE111..3FC;AE111,CE110..5F T=1.05,MARK 15 |
2 | ||
| 41361-22140 |
EE111..3FC;AE111,CE110..5F T=0.95,MARK 14 |
2 | ||
| 41361-22160 |
EE111..3FC;AE111,CE110..5F T=1.15,MARK 16 |
2 | ||
| 41361-22140 |
AE111,CE110..5F T=0.95,MARK 14 |
2 | ||
| 41361-22020 |
AE111,CE110..5F T=1.00,MARK 02 |
2 | ||
| 41361-22150 |
AE111,CE110..5F T=1.05,MARK 15 |
2 | ||
| 41361-22030 |
AE111,CE110..5F T=1.10,MARK 03 |
2 | ||
| 41361-22040 |
AE111,CE110..5F T=1.20,MARK 04 |
2 | ||
| 41361-22160 |
AE111,CE110..5F T=1.15,MARK 16 |
2 | ||

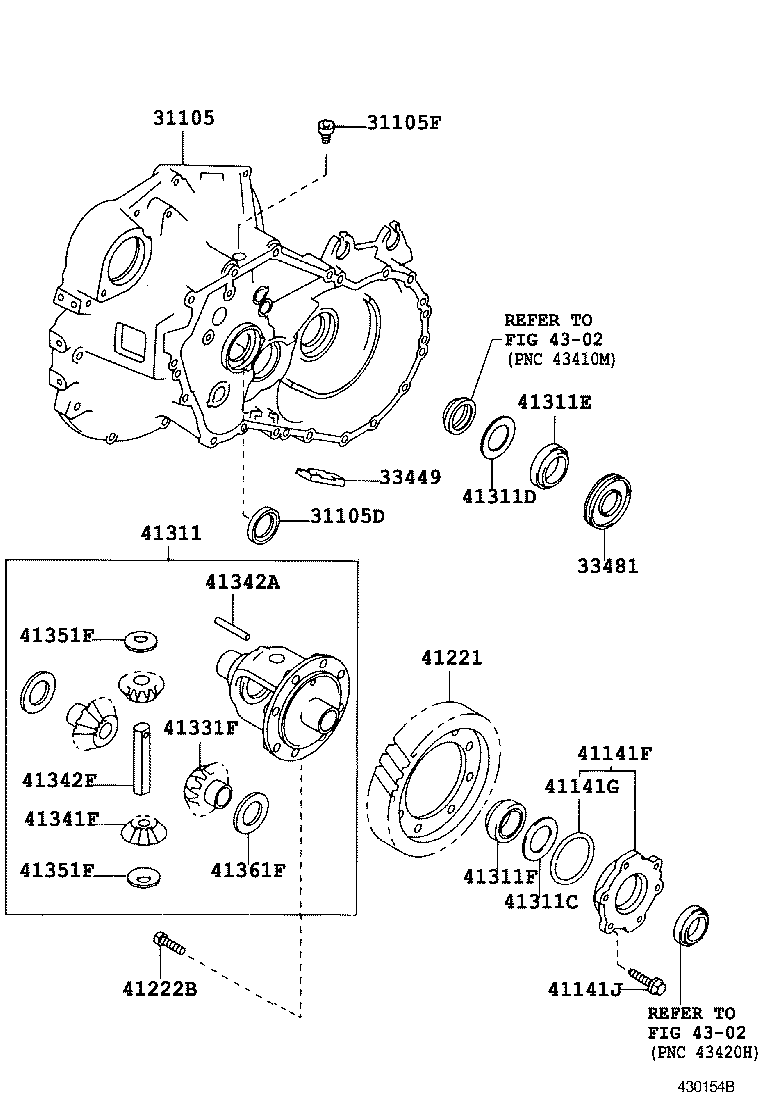

| Linked diagrams | ||||
| 4302 | ||||
