AE111R-AEMDKW (1997)

Toyota Corolla Sed/Wg

Production Apr 1997 - Oct 1999
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9704-9910)AE111..RHD

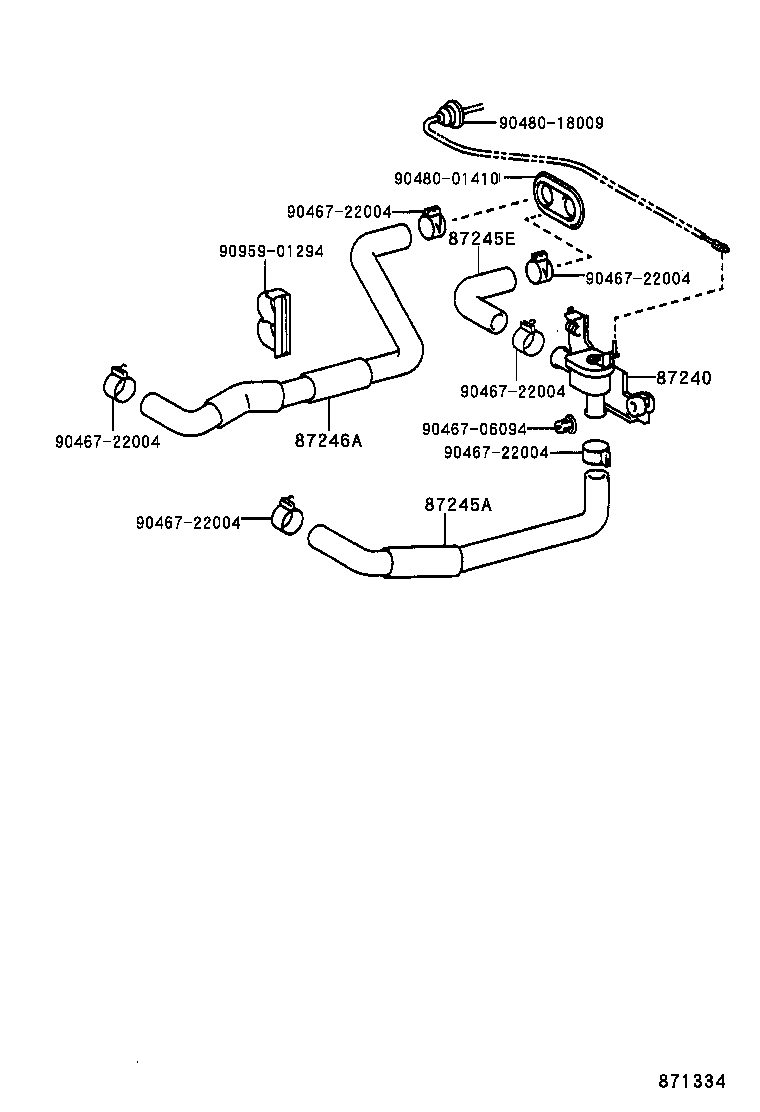

Click highlighted areas on diagram

diagram 87240 87245A 87245E 87246A 9046706094 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9048001410 9048018009 9095901294
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-12250

AE111,CE110,EE111..RHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-1A640

AE111..RHD

 1
87245E - HOSE, HEATER WATER, INLET E
87245-1A440

AE111,CE110,EE111..RHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-1A630

AE111..RHD

 1
Common parts
90467-06094
90467-22004
90480-01410
90480-18009
90959-01294
