AE111L-AWPDKW (1997)
Toyota Corolla Sed/Wg
Production
Apr 1997
-
Oct 1999
Engine
4AFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9704-9910)4FC

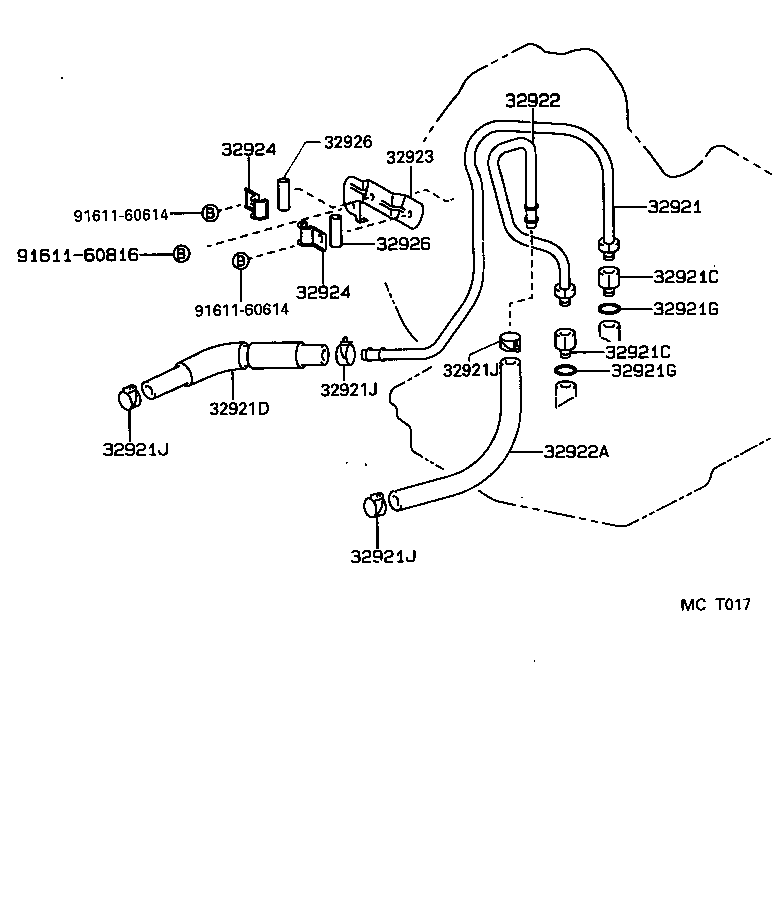

Click highlighted areas on diagram
A240L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-12300 |
AE111..4FC |
1 | ||
| 32921-12301 |
AE111..4FC |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 32901-12030 |
AE111,EE111..ATM INLET |
1 | ||
| 90404-14007 |
AE111..4FC OUTLET |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 32901-12030 |
AE111,EE111..ATM INLET |
1 | ||
| 90404-14007 |
AE111..4FC OUTLET |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 32941-12171 |
AE111..4FC |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
AE111,EE111..ATM |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
AE111,EE111..ATM |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-13039 |
AE111,EE111..ATM |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-13039 |
AE111,EE111..ATM |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-13039 |
AE111,EE111..ATM |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-13039 |
AE111,EE111..ATM |
4 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-12320 |
AE111..4FC |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 90445-15042 |
AE111,EE111..ATM |
1 | ||
| 32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 32923-12200 |
AE111..4FC |
1 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 90462-10082 |
AE111,EE111..ATM |
2 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 90462-10082 |
AE111,EE111..ATM |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-22010 |
AE111..4FC L=35,ID=8 |
1 | ||
| 32926-10010 |
AE111..4FC L=30,ID=8 |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-22010 |
AE111..4FC L=35,ID=8 |
1 | ||
| 32926-10010 |
AE111..4FC L=30,ID=8 |
1 | ||
| Common parts | ||||
| 91611-60614 | ||||
| 91611-60816 | ||||
