AE111L-AWMDKW (1997)
Toyota Corolla Sed/Wg
Production
Apr 1997
-
Oct 1999
Engine
4AFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9704- )AE111,ZZE112..5F

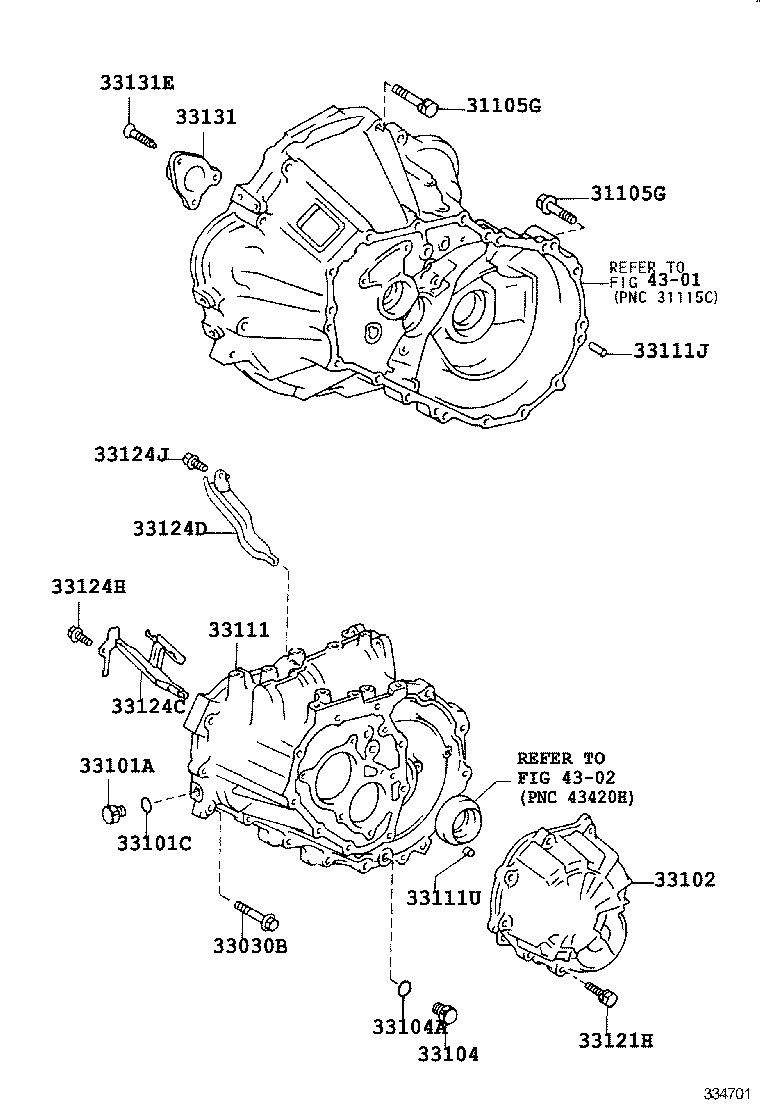

Click highlighted areas on diagram
C50,C52
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 90105-10077 |
AE11#,CE110..5F *10-1.25PX43-26 |
1 | ||
| 90119-12042 |
AE111..5F *12-1.25PX75-30 |
1 | ||
| 90119-12168 |
AE11#..5F *12-1.25PX55-30 |
2 | ||
| 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 90105-10077 |
AE11#,CE110..5F *10-1.25PX43-26 |
1 | ||
| 90119-12042 |
AE111..5F *12-1.25PX75-30 |
1 | ||
| 90119-12168 |
AE11#..5F *12-1.25PX55-30 |
2 | ||
| 33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) | ||||
| 90105-08086 |
AE111..5F *8-1.25PX45-27.5 |
3 | ||
| 90105-08064 |
AE111..5F *8-1.25PX51-28 |
13 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18006 |
AE111,CE110,EE11#..5F |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-18008 |
AE11#,CE110,EE11#..5F |
1 | ||
| 33102 - COVER SUB-ASSY, MANUAL TRANSMISSION CASE | ||||
| 33102-12021 |
AE111..5F |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18006 |
AE11#,CE110,EE11#..5F |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
AE11#,CE110,EE11#..5F |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33111-16062 |
AE111..5F |
1 | ||
| 33111-16063 |
AE111..5F |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
AE11#,EE11#..5F L=23,OD=8 |
4 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-11001 |
AE111..5F L=11,OD=11 |
2 | ||
| 33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER) | ||||
| 91611-60835 |
AE111..5F |
9 | ||
| 33124C - PIPE, OIL RECEIVER, NO.1(MTM) | ||||
| 33124-20050 |
AE111..5F |
1 | ||
| 33124-12012 |
AE111..5F |
1 | ||
| 33124D - PIPE, OIL RECEIVER, NO.2(MTM) | ||||
| 33124-12021 |
AE111..5F |
1 | ||
| 33124H - BOLT(FOR OIL RECEIVER PIPE) | ||||
| 91611-60820 |
AE111,EE11#..5F |
1 | ||
| 33124J - BOLT, W/WASHER | ||||
| 91611-60820 |
AE111,EE11#..5F |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-12080 |
AE111..5F |
1 | ||
| 33131E - SCREW(FOR BEARING RETAINER FRONT) | ||||
| 90149-60028 |
AE111..5F |
3 | ||
| Linked diagrams | ||||
| 4301 | ||||
| 4302 | ||||
