AE111L-AWMDKW (1997)

Toyota Corolla Sed/Wg

Production Apr 1997 - Oct 1999
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9704- )AE11#,CE110,EE11#,ZZE11#..5F ; (0001-)WZE110

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301B 31301C 31301C 31301F 31301J 31321 31324 31324A 31453A 31453B 55107A 55107A 9011906421 9046816142 9165160816 9411051000 9451201000
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-12430

AE11#,CE110,EE11#..LHD..5F

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90905-06029

AE11#,CE110,EE11#..LHD..5F

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

AE11#,CE110,EE11#..LHD..5F

 2
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

AE11#,CE110,EE11#..LHD..5F

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

AE11#,CE110,EE11#..5F

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

AE11#,CE110,EE11#..5F

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

AE11#,CE110,EE11#..5F

 1
31301J - NUT(FOR CLUTCH PEDAL STOPPER)
94120-41000

AE11#,CE110,EE11#..5F

 1
31321 - PAD, CLUTCH PEDAL
31321-12040

AE11#,CE110,EE11#..5F

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10015

AE11#,CE110,EE11#..5F

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

AE11#,CE110,EE11#..5F

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
47148-12010

AE11#,CE110,EE11#..LHD..5F

L=23.5

 1
47148-12030

AE11#,CE110,EE11#..5F

L=30.0

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

AE11#,CE110,EE11#..5F

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-12160

AE11#,CE110,EE11#..LHD..5F

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-12160

AE11#,CE110,EE11#..LHD..5F

 1
Common parts
90119-06421
90468-16142
91651-60816
94110-51000
94512-01000

ILLUST NO. 2 OF 2(9704- )AE111..5F

Click highlighted areas on diagram

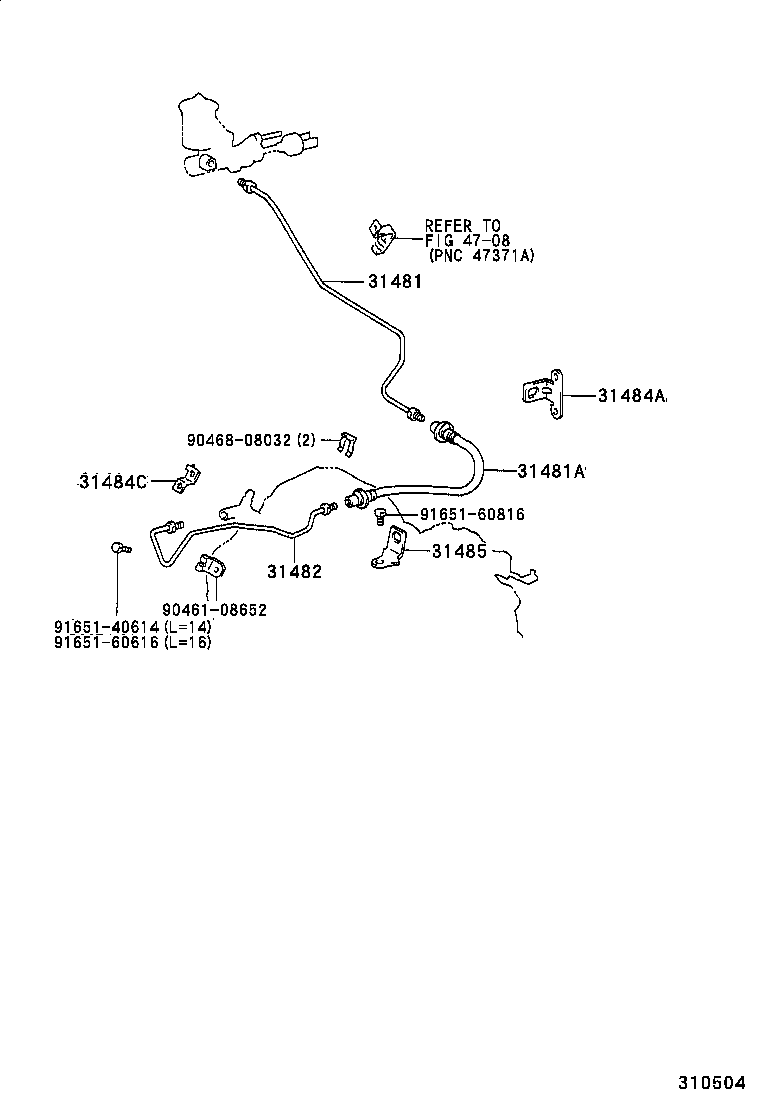

diagram 31481 31481A 31482 31484A 31484C 31485 4708 9046108652 9046808032 9165140614 9165160616 9165160816
Part # Description Qty Price
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-12240

AE111,CE110,EE11#..LHD..5F

 1
31481A - HOSE, CLUTCH, NO.1
90931-01102

AE111,EE11#..LHD..5F

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-12060

AE111..5F

L=571.2

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-12240

AE11#,CE110,EE11#..LHD..5F

 1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-12110

AE111..5F

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-12180

AE111,EE11#..5F

 1
Common parts
90461-08652
90468-08032
91651-40614
91651-60616
91651-60816
Linked diagrams
4708
