AE111L-AWMDKW (1997)
Toyota Corolla Sed/Wg
Production
Apr 1997
-
Oct 1999
Engine
4AFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9704-9910)4AFE..5F

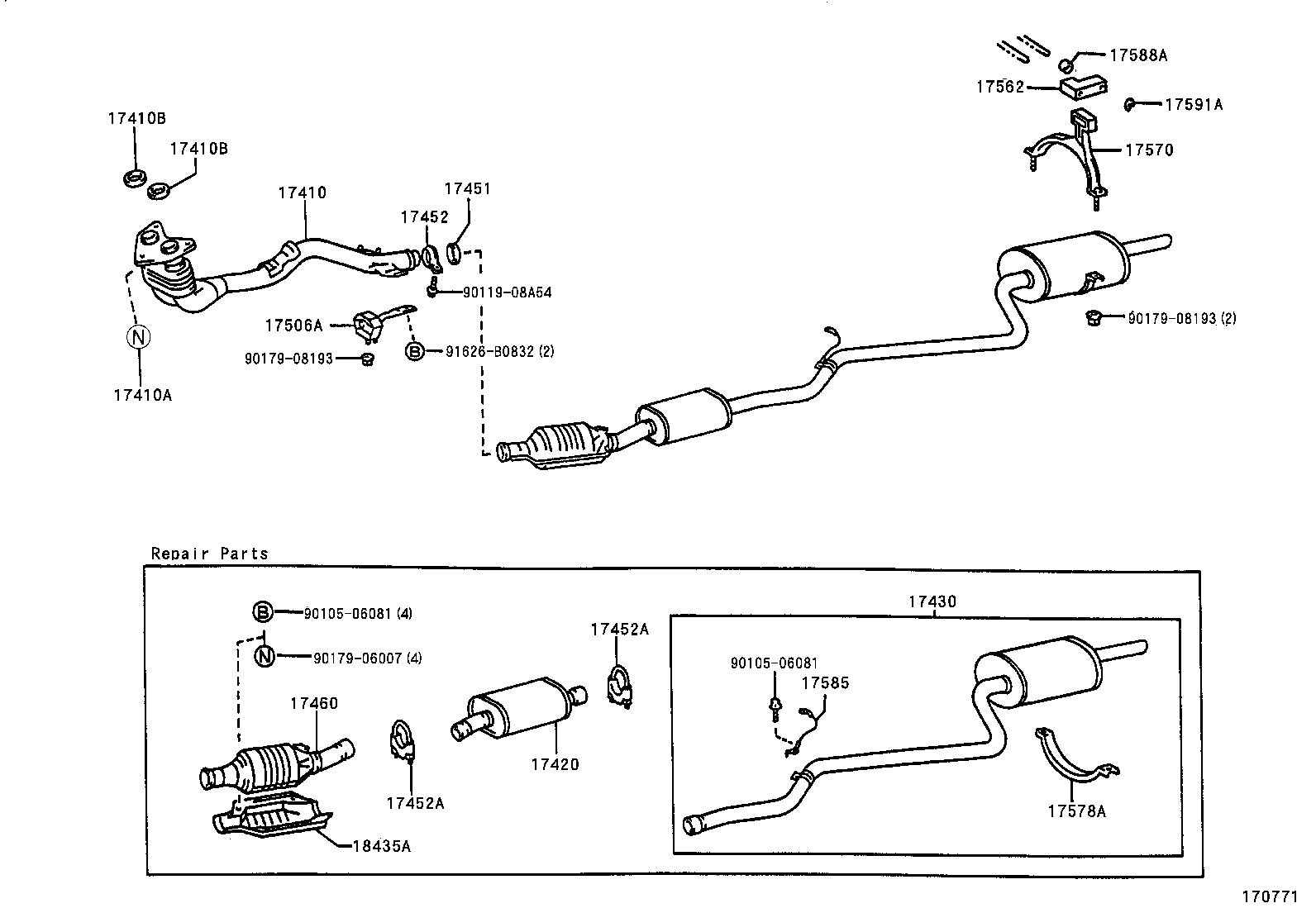

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-1A480 |
4AFE..AE111..5F |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
4AFE,2E..AE111,EE110..5F |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06061 |
4AFE..AE111..5F |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06061 |
4AFE..AE111..5F |
2 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-16720 |
4AFE..AE111 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-1D010 |
4AFE..AE111 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06084 |
4AFE..AE111 |
1 | ||
| 17452 - CLAMP, EXHAUST PIPE | ||||
| 90461-15016 |
4AFE..AE111 |
1 | ||
| 17452A - CLAMP, EXHAUST PIPE | ||||
| 17452-16120 |
4AFE..AE111 REAR |
1 | ||
| 17452-16160 |
4AFE..AE111 FRONT |
1 | ||
| 17452A - CLAMP, EXHAUST PIPE | ||||
| 17452-16120 |
4AFE..AE111 REAR |
1 | ||
| 17452-16160 |
4AFE..AE111 FRONT |
1 | ||
| 17460 - CONVERTER ASSY, CATALYTIC W/PIPE | ||||
| 17460-16260 |
4AFE..AE111..LHD..WG..5F *114=TOYOTA/U10/Y,GERMANY SPEC |
1 | ||
| 17460-16170 |
4AFE..AE111 |
1 | ||
| 17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17506-11100 |
4AFE,2E,4EFE..AE111,EE11# |
1 | ||
| 17562 - SUPPORT, EXHAUST PIPE, NO.2 | ||||
| 17562-16240 |
4AFE,7AFE,2CE,2E,4EFE..AE11#,CE110,EE11# |
1 | ||
| 17570 - BRACKET ASSY, EXHAUST PIPE SUPPORT | ||||
| 17570-16040 |
4AFE,7AFE..AE11# |
1 | ||
| 17578A - CLAMP, MUFFLER | ||||
| 17578-11030 |
4AFE..AE111 |
1 | ||
| 17578-11030 |
4AFE,2E..AE111,EE110 |
1 | ||
| 17585 - HANGER, EXHAUST PIPE | ||||
| 17585-16060 |
4AFE,2E,4EFE..AE111,EE11# |
1 | ||
| 17588A - SPACER, EXHAUST PIPE HANGER | ||||
| 17588-16020 |
4AFE,7AFE,2CE,2E,4EFE..AE11#,CE110,EE11# |
1 | ||
| 17591A - STOPPER, EXHAUST PIPE SUPPORT | ||||
| 17591-16020 |
4AFE,7AFE,2CE,2E,4EFE..AE11#,CE110,EE11# |
2 | ||
| 18435A - PROTECTOR, MONOLITHIC CONVERTER | ||||
| 18435-16170 |
4AFE..AE111 |
1 | ||
| Common parts | ||||
| 90105-06081 | ||||
| 90119-08A54 | ||||
| 90179-06007 | ||||
| 90179-08193 | ||||
| 91626-B0832 | ||||
