AE111L-AEPDKW (1997)

Toyota Corolla Sed/Wg

Production Apr 1997 - Oct 1999
Engine 4AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9704- )

Click highlighted areas on diagram

O RING

diagram 9009914119 9009914120 9009914121 9009914122
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122

ILLUST NO. 1 OF 2(9704- )LHD

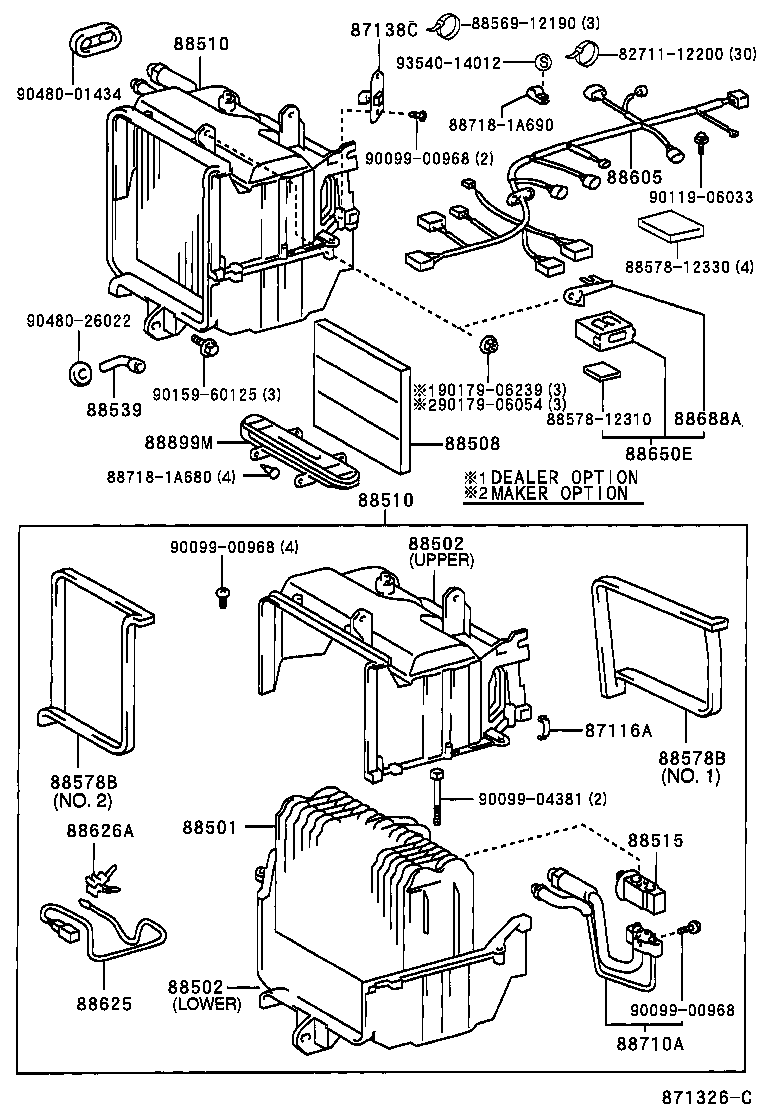

Click highlighted areas on diagram

diagram 8271112200 87116A 87138C 88501 88502 88502 88508 88510 88510 88515 88539 8856912190 8857812310 8857812330 88578B 88578B 88605 88625 88626A 88650E 88688A 88710A 887181A680 887181A690 88899M 9009900968 9009900968 9009900968 9009904381 9011906033 9015960125 9017906054 9017906239 9048001434 9048026022 9354014012
Part # Description Qty Price
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-14010

AE11#,CE110,EE11#

 3
87138C - RESISTOR, BLOWER
87138-12140

AE11#,CE110,EE11#

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-12401

AE11#,CE110,EE11#..LHD

 1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-12210

AE11#,CE110,EE11#..LHD

UPPER

 1
88502-12260

AE11#,CE110,EE11#..LHD

LOWER

 1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-12210

AE11#,CE110,EE11#..LHD

UPPER

 1
88502-12260

AE11#,CE110,EE11#..LHD

LOWER

 1
88508 - FILTER SUB-ASSY, CLEAN AIR
88508-12010

AE11#,CE110,EE11#

 1
88510 - UNIT ASSY, COOLER
88510-1A640

AE11#,CE110,EE11#..LHD

 1
88510 - UNIT ASSY, COOLER
88510-1A640

AE11#,CE110,EE11#..LHD

 1
88515 - VALVE, COOLER EXPANSION
88515-20100

AE11#,CE110,EE11#

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-12160

AE11#,CE110,EE11#

 1
88578B - PACKING, COOLING UNIT, NO.1
88578-20470

AE11#,CE110,EE11#

NO.2

 1
88578-12490

AE11#,CE110,EE11#..LHD

NO.1

 1
88578B - PACKING, COOLING UNIT, NO.1
88578-20470

AE11#,CE110,EE11#

NO.2

 1
88578-12490

AE11#,CE110,EE11#..LHD

NO.1

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-1K270

AE11#..LHD

 1
88625 - THERMISTOR, COOLER, NO.1
88625-12280

AE11#,CE110,EE11#

 1
88626A - HOLDER, THERMISTOR
88626-28010

AE11#,CE110,EE11#

 1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-1E040

AE11#

 1
88688A - BRACKET, COOLER STABILIZER AMPLIFIER
88688-1A090

AE11#,CE110,EE111

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-12340

AE11#,CE110,EE11#..LHD

 1
88899M - PLATE, COVER(FOR AIR FILTER)
88899-12350

AE11#,CE110,EE11#..LHD

 1
Common parts
82711-12200
88569-12190
88578-12310
88578-12330
88718-1A680
88718-1A690
90099-00968
90099-04381
90119-06033
90159-60125
90179-06054
90179-06239
90480-01434
90480-26022
93540-14012
