AE111L-AEPDKW (1997)

Toyota Corolla Sed/Wg

Production Apr 1997 - Oct 1999
Engine 4AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704-9910)4FC

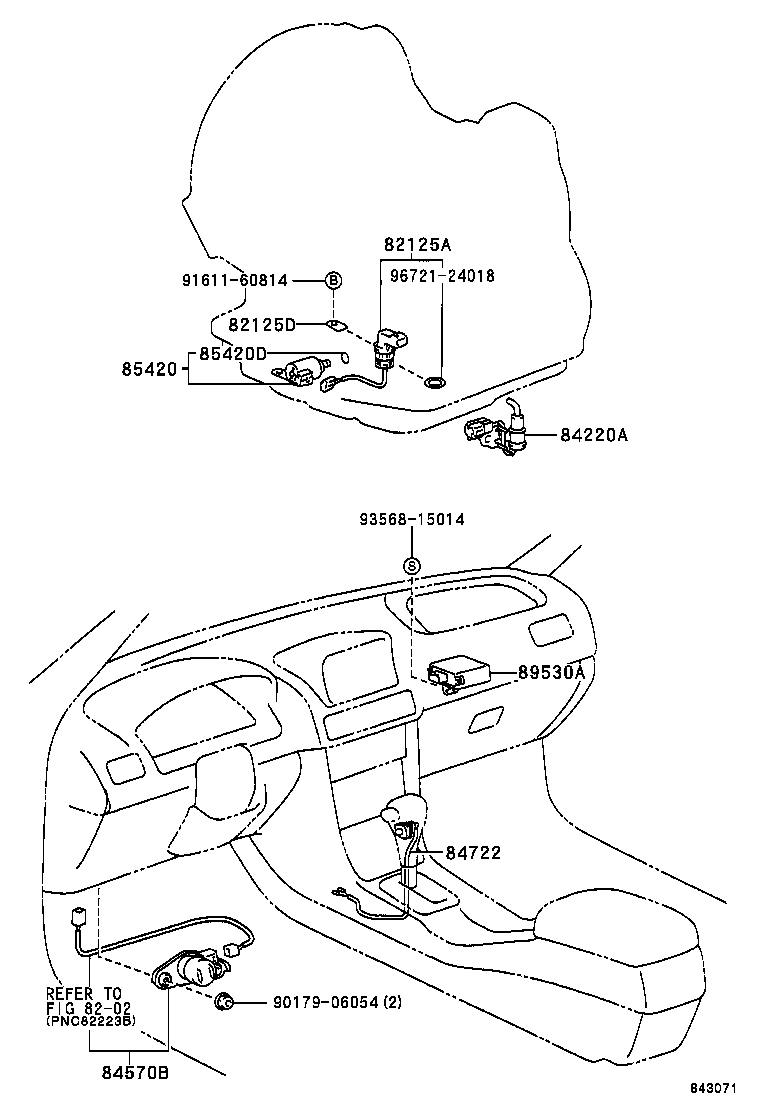

Click highlighted areas on diagram

diagram 8202 82125A 82125D 84220A 84570B 84722 85420 85420D 89530A 9017906054 9161160814 9356815014 9672124018
Part # Description Qty Price
82125A - WIRE, TRANSMISSION
82125-12360

AE111..4FC

 1
82125D - PLATE, TRANSMISSION WIRE LOCK
33485-30020

AE111..4FC

 1
84220A - SWITCH ASSY, TRANSMISSION POSITION INDICATOR
84220-20100

AE111..4FC

 1
84570B - SWITCH ASSY, KICK DOWN
84570-12010

AE111..4FC

 1
84722 - SWITCH, TRANSMISSION CONTROL
84722-12100B1

AE111..SED..4FC

DK.CHARCOAL,TRIM0#,1#

 1
84722-12100B1

AE111..4FC

DK.CHARCOAL,TRIM1#

 1
84722-12100B2

AE111..SED..4FC

SHADOW GRAY,TRIM0#

 1
84722-12100B1

AE111..SED..4FC

DK.CHARCOAL,TRIM0#,10

 1
84722-12100B2

AE111..4FC

SHADOW GRAY,TRIM12

 1
85420 - SOLENOID ASSY, TRANSMISSION
85420-20180

AE111..4FC

 1
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

AE111..4FC

 1
89530A - COMPUTER ASSY, TRANSMISSION CONTROL
89530-12190

AE111..4FC

 1
Common parts
90179-06054
91611-60814
93568-15014
96721-24018
Linked diagrams
8202
