Toyota Corolla sed/wg AE111 WIRING & CLAMP

AE111L-AEPDKW (1997)

Toyota Corolla Sed/Wg

Production Apr 1997 - Oct 1999

Engine 4AFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 7 OF 7(9704- )

Click highlighted areas on diagram

FUSIBLE LINK REPAIR

Part #	Description	Period	Qty	Price
82991 - WIRE, FUSIBLE LINK REPAIR
82991-12070	AE11#,EE11#	04/1997 - 10/1999	1

Part #

Description

Qty

Price

82991 - WIRE, FUSIBLE LINK REPAIR

82991-12070

AE11#,EE11#

ILLUST NO. 4 OF 7(9704- )LHD..SED

Click highlighted areas on diagram

ROOF,DOOR,FLOOR

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-1E010	AE111,CE110,EE11#..LHD..TERRA W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER)	04/1997 - 10/1999	1
82151-1A710	AE11#,CE110,EE11#..LHD..(LUNA,TERRA) W(POWER DOOR LOCK & POWER WINDOW & ELECTRIC REMOTE CONTROL MIRROR W/HEATER)	04/1997 - 10/1999	1
82151-1A700	AE111,CE110,EE11#..LHD..(LUNA,TERRA) W(POWER DOOR LOCK & ELECTRIC REMOTE CONTROL MIRROR W/HEATER)	04/1997 - 10/1999	1
82151-1A890	AE111,CE110,EE11#..STD,TERRA	04/1997 - 10/1999	1
82152 - WIRE, FRONT DOOR, LH
82151-1A890	AE111,CE110,EE11#..STD,TERRA	04/1997 - 10/1999	1
82152-1A420	AE111..LHD..SED SPECIAL SPEC(ISRAEL) & W(POWER WINDOW)	01/1998 - 07/1998	1
82152-1A410	AE111,CE110,EE11#..LHD..(LUNA,TERRA) W(POWER DOOR LOCK & ELECTRIC REMOTE CONTROL MIRROR W/HEATER)	04/1997 - 10/1999	1
82151-1E010	AE111,CE110,EE11#..LHD..TERRA W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER)	04/1997 - 10/1999	1
82152-1A430	AE11#,CE110,EE11#..LHD..(LUNA,TERRA) W(POWER DOOR LOCK & POWER WINDOW---FRONT ONLY)	04/1997 - 10/1999	1
82153 - WIRE, REAR DOOR, NO.1
82153-12310	AE11#,CE110,EE11#..LUNA,TERRA	04/1997 - 10/1999	1
82153-12330	AE111..LHD..SED SPECIAL SPEC(ISRAEL) & W(POWER WINDOW)	01/1998 - 07/1998	1
82154 - WIRE, REAR DOOR, NO.2
82154-12320	AE111..LHD..SED SPECIAL SPEC(ISRAEL) & W(POWER WINDOW)	01/1998 - 07/1998	1
82153-12310	AE11#,CE110,EE11#..LUNA,TERRA	04/1997 - 10/1999	1
82161 - WIRE, FLOOR
82161-1L750	AE111,CE110,EE11#..LHD..SED	04/1997 - 10/1999	1
82161-1L760	AE111,CE110,EE111..LHD..SED W(ABS)	04/1997 - 10/1999	1
82171 - WIRE, ROOF, NO.1
82171-12740	AE111,CE110,EE11#..LHD..SED..(LUNA,TERRA) W(MOON ROOF)	04/1997 - 10/1999	1
82171-12730	AE111,CE110,EE11#..LHD..SED	04/1997 - 10/1999	1
82187 - WIRE, REAR WINDOW, NO.2
82187-12160	AE111,CE110,EE11#..LHD..SED	04/1997 - 10/1999	1
82825C - CONNECTOR, WIRING HARNESS
82824-30130	AE11#,CE110,EE11#..LHD..(LUNA,TERRA) NO.1	04/1997 - 10/1999	1
82824-30130	AE111,CE110,EE11#..LHD..(LUNA,TERRA) NO.2	04/1997 - 10/1999	2
82825C - CONNECTOR, WIRING HARNESS
82824-30130	AE11#,CE110,EE11#..LHD..(LUNA,TERRA) NO.1	04/1997 - 10/1999	1
82824-30130	AE111,CE110,EE11#..LHD..(LUNA,TERRA) NO.2	04/1997 - 10/1999	2
Common parts
90119-06390
90159-60545
90950-06107
90950-06108
Linked diagrams
8401

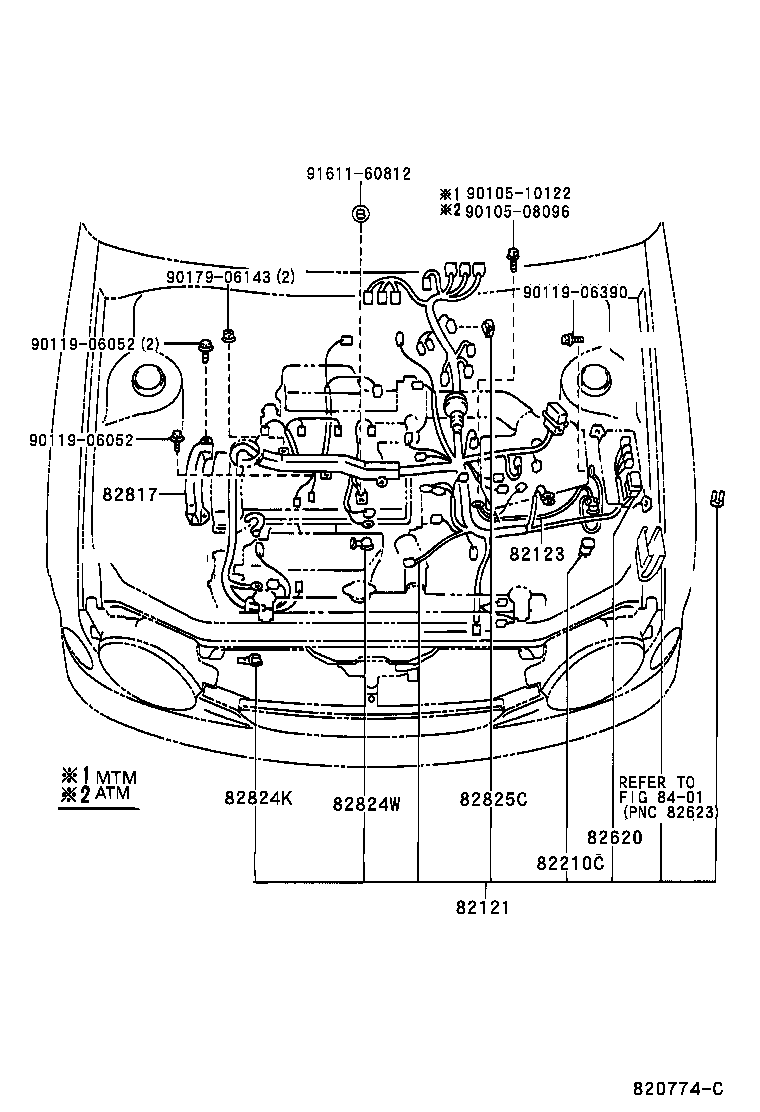

ILLUST NO. 1 OF 7(9704- )AE11#

Click highlighted areas on diagram

ENGINE

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-1N660	AE111..4FC	04/1997 - 10/1999	1
82123 - WIRE, ENGINE, NO.3
82123-12310	AE11#,EE11#..4FC,5F	04/1997 - 10/1999	1
82210C - FUSIBLE LINK
90982-08246	AE11#,CE110,EE11# 100A,TERM.:MALE,BLUE	04/1997 - 10/1999	1
90982-08282	AE11#,CE110,EE11# 50A,TERM.:FEMALE,RED	04/1997 - 10/1999	1
90982-08228	AE11#,CE110,EE111 50A,TERM.:MALE,RED	04/1997 - 10/1999	1
90982-08281	AE111..LHD;AE115,CE110,EE11#;AE111..RHD..TERRA 40A,TERM.:FEMALE,GRN	04/1997 - 10/1999	1
82620 - BLOCK ASSY, FUSIBLE LINK
82620-13020	AE11#,CE110,EE11#	04/1997 - 10/1999	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-1A070	AE11#	04/1997 - 10/1999	1
82824K - CONNECTOR, WIRING HARNESS
82824-12210	AE11#,CE110,EE11#..LHD	04/1997 - 10/1999	1
82824W - CONNECTOR, WIRING HARNESS
82824-30130	AE111..LHD;AE111..RHD..TERRA;CE110,EE11#..LUNA,TERRA NO.2	04/1997 - 10/1999	2
82825C - CONNECTOR, WIRING HARNESS
82824-30130	AE11#,CE110,EE11#..LHD..(LUNA,TERRA) NO.1	04/1997 - 10/1999	1
82824-30130	AE111,CE110,EE11#..LHD..(LUNA,TERRA) NO.2	04/1997 - 10/1999	2
Common parts
90105-08096
90105-10122
90119-06052
90119-06390
90179-06143
91611-60812
Linked diagrams
8401

ILLUST NO. 5 OF 7(9704- )

Click highlighted areas on diagram

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82710-12010
82711-16790
82711-1A750
82711-1E100
82711-1E260
82711-1E300
82711-24420
82711-3H630
82715-10010
82715-10130
82715-12020
82715-12120
82715-12261
82715-12380
82715-12730
82715-16440
91611-60612
91611-60812
91611-60816
91651-B0614

ILLUST NO. 5 OF 7(9704- )

Click highlighted areas on diagram

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82711-10370
82711-1A760
82711-1E350
82711-1E390
82711-1E440
82711-20330
82715-02100
82715-12090
82715-12140
82715-12261
82715-12350
82715-12420
82715-12440
82715-12500
82715-12510
82715-12550
82715-20430
82715-32390
82715-33140
82715-89113
90080-11479
90119-06316
90119-06539
91621-40608
91621-60612
91651-60612
91651-B0614

ILLUST NO. 6 OF 7(9704- )

Click highlighted areas on diagram

CABLE BOND

Part #	Description	Period	Qty

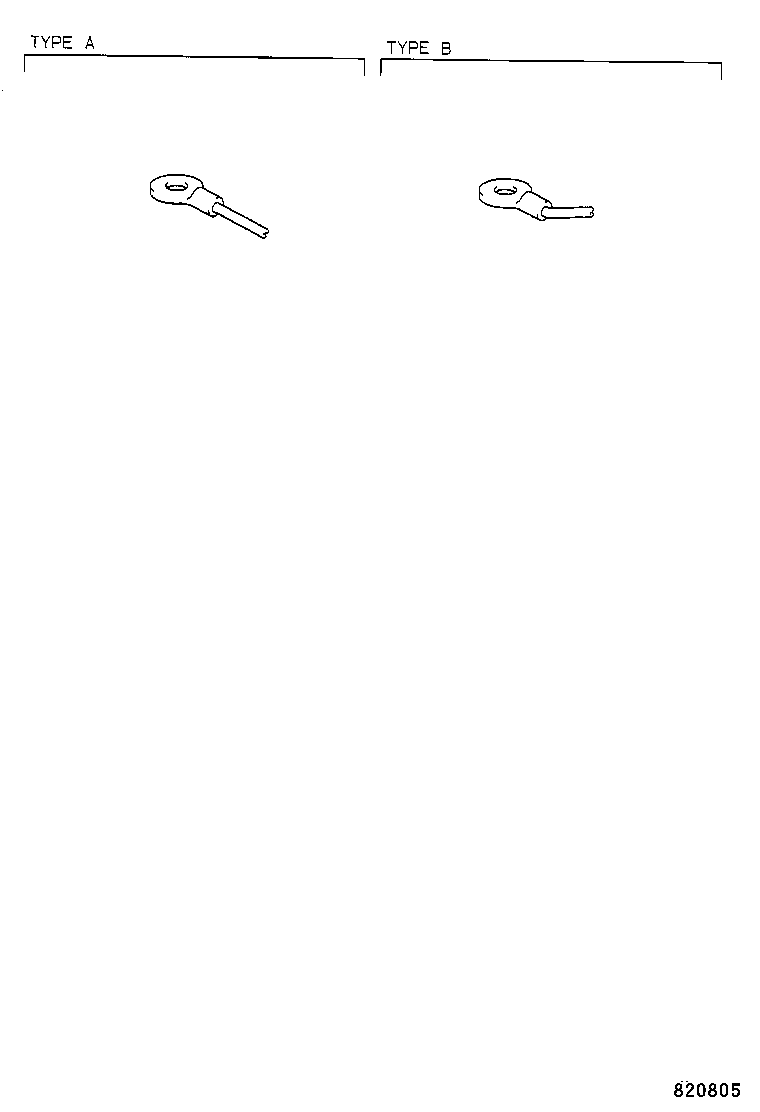

82001 - CABLE, BOND, NO.1
90980-07206	AE11# TYPE A:REFER TO ILLUSTRATION,NO.1	04/1997 - 10/1999	1
90980-07384	AE11# TYPE B:REFER TO ILLUSTRATION,NO.1	04/1997 - 10/1999	1
90980-07351	AE11#,EE11# NO.3	04/1997 - 10/1999	1
90980-07299	AE11# NO.2	04/1997 - 10/1999	1
82001 - CABLE, BOND, NO.1
90980-07206	AE11# TYPE A:REFER TO ILLUSTRATION,NO.1	04/1997 - 10/1999	1
90980-07384	AE11# TYPE B:REFER TO ILLUSTRATION,NO.1	04/1997 - 10/1999	1
90980-07351	AE11#,EE11# NO.3	04/1997 - 10/1999	1
90980-07299	AE11# NO.2	04/1997 - 10/1999	1
82001 - CABLE, BOND, NO.1
90980-07206	AE11# TYPE A:REFER TO ILLUSTRATION,NO.1	04/1997 - 10/1999	1
90980-07384	AE11# TYPE B:REFER TO ILLUSTRATION,NO.1	04/1997 - 10/1999	1
90980-07351	AE11#,EE11# NO.3	04/1997 - 10/1999	1
90980-07299	AE11# NO.2	04/1997 - 10/1999	1
82001 - CABLE, BOND, NO.1
90980-07206	AE11# TYPE A:REFER TO ILLUSTRATION,NO.1	04/1997 - 10/1999	1
90980-07384	AE11# TYPE B:REFER TO ILLUSTRATION,NO.1	04/1997 - 10/1999	1
90980-07351	AE11#,EE11# NO.3	04/1997 - 10/1999	1
90980-07299	AE11# NO.2	04/1997 - 10/1999	1
82001 - CABLE, BOND, NO.1
90980-07206	AE11# TYPE A:REFER TO ILLUSTRATION,NO.1	04/1997 - 10/1999	1
90980-07384	AE11# TYPE B:REFER TO ILLUSTRATION,NO.1	04/1997 - 10/1999	1
90980-07351	AE11#,EE11# NO.3	04/1997 - 10/1999	1
90980-07299	AE11# NO.2	04/1997 - 10/1999	1
Common parts
90119-06375
90119-06390

ILLUST NO. 6 OF 7(9704- )AE11#

Click highlighted areas on diagram

CABLE BOND

Part #	Description	Period	Qty	Price

ILLUST NO. 2 OF 7(9704- )

Click highlighted areas on diagram

ENGINE ROOM

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-1H780	AE11#,EE111..LHD W(ABS & DAY TIME RUNNING LIGHT SYSTEM)	04/1997 - 12/1997	1
82111-1H730	AE11#,EE111..LHD W(AIR CONDITIONER)	04/1997 - 12/1997	1
82111-1H720	AE11#,CE110,EE111..LHD W(ABS)	04/1997 - 12/1997	1
82111-1H800	AE11#,EE111..LHD W(ABS & AIR CONDITIONER & DAY TIME RUNNING LIGHT SYSTEM)	04/1997 - 12/1997	1
82111-1H790	AE11#,EE111..LHD W(AIR CONDITIONER & DAY TIME RUNNING LIGHT SYSTEM)	04/1997 - 12/1997	1
82111-1H770	AE11#,EE111..LHD W(DAY TIME RUNNING LIGHT SYSTEM)	04/1997 - 12/1997	1
82111-1H740	AE11#,EE111..LHD W(ABS) & EUROPEAN POSSESSION SPEC=(AIR CONDITIONER CIRCUIT)	04/1997 - 12/1997	1
82111-1H721	AE11#,CE110,EE111..LHD W(ABS)	12/1997 - 05/1998	1
82111-1H710	AE11#,CE110,EE111..LHD	04/1997 - 12/1997	1
82111-1H741	AE11#,EE111..LHD W(ABS) & ISRAEL SPEC=(AIR CONDITIONER CIRCUIT)	12/1997 - 05/1998	1
82111-1H781	AE11#,EE111..LHD W(ABS & DAY TIME RUNNING LIGHT SYSTEM)	12/1997 - 05/1998	1
82111-1H711	AE11#,CE110,EE111..LHD	12/1997 - 10/1999	1
82111-1H771	AE11#,EE111..LHD W(DAY TIME RUNNING LIGHT SYSTEM)	12/1997 - 10/1999	1
82111-1H731	AE11#,EE111..LHD W(AIR CONDITIONER)	12/1997 - 10/1999	1
82111-1H791	AE11#,EE111..LHD W(AIR CONDITIONER & DAY TIME RUNNING LIGHT SYSTEM)	12/1997 - 10/1999	1
82111-1K270	AE11#,EE111..LHD W(ABS & AIR CONDITIONER)	05/1998 - 10/1999	1
82111-1K290	AE11#,EE111..LHD W(ABS & DAY TIME RUNNING LIGHT SYSTEM)	05/1998 - 10/1999	1
82111-1K260	AE11#,CE110,EE111..LHD W(ABS)	05/1998 - 10/1999	1
82111-1K310	AE11#,EE111..LHD W(ABS & AIR CONDITIONER & DAY TIME RUNNING LIGHT SYSTEM)	05/1998 - 10/1999	1
82114 - WIRE, ENGINE ROOM, NO.4
88605-1K360	AE11#,EE111..LHD	04/1997 - 10/1999	1
82210C - FUSIBLE LINK
90982-08246	AE11#,CE110,EE11# 100A,TERM.:MALE,BLUE	04/1997 - 10/1999	1
90982-08282	AE11#,CE110,EE11# 50A,TERM.:FEMALE,RED	04/1997 - 10/1999	1
90982-08228	AE11#,CE110,EE111 50A,TERM.:MALE,RED	04/1997 - 10/1999	1
90982-08281	AE111..LHD;AE115,CE110,EE11#;AE111..RHD..TERRA 40A,TERM.:FEMALE,GRN	04/1997 - 10/1999	1
82210C - FUSIBLE LINK
90982-08246	AE11#,CE110,EE11# 100A,TERM.:MALE,BLUE	04/1997 - 10/1999	1
90982-08282	AE11#,CE110,EE11# 50A,TERM.:FEMALE,RED	04/1997 - 10/1999	1
90982-08228	AE11#,CE110,EE111 50A,TERM.:MALE,RED	04/1997 - 10/1999	1
90982-08281	AE111..LHD;AE115,CE110,EE11#;AE111..RHD..TERRA 40A,TERM.:FEMALE,GRN	04/1997 - 10/1999	1
Common parts
90099-04337
90119-06390
90119-06539
91515-G0616
Linked diagrams
8401

ILLUST NO. 3 OF 7(9704- )LHD

Click highlighted areas on diagram

COWL,INSTRUMENT

Part #	Description	Period	Qty
82131 - WIRE, COWL
82131-1L680	AE11#,CE110,EE111..LHD W(AIR CONDITIONER)	04/1997 - 08/1998	1
82131-1L660	AE11#,CE110,EE111..LHD	04/1997 - 08/1998	1
82131-1L661	AE11#,CE110,EE111..LHD	08/1998 - 10/1999	1
82131-1L681	AE11#,CE110,EE111..LHD W(AIR CONDITIONER)	08/1998 - 10/1999	1
82141 - WIRE, INSTRUMENT PANEL
82141-1N270	AE111,CE110,EE111..LHD W(*80,DRIVER SIDE & FRONT PASSENGER SIDE & AIR CONDITIONER)	04/1997 - 08/1998	1
82141-1N240	AE111,CE110,EE111..LHD	04/1997 - 08/1998	1
82141-1N310	AE111,CE110,EE111..LHD W(*80,SIDE & DAY TIME RUNNING LIGHT SYSTEM)	04/1997 - 08/1998	1
82141-1N280	AE111,CE110,EE111..LHD W(80,SIDE);W(80,DRIVER SIDE & FRONT PASSENGER SIDE & AIR CONDITIONER)	04/1997 - 08/1998	1
82141-1N250	AE111,CE110,EE111..LHD W(*80, SIDE)	04/1997 - 08/1998	1
82141-1N330	AE111,CE110,EE111..LHD W(AIR CONDITIONER & DAY TIME RUNNING LIGHT SYSTEM)	04/1997 - 08/1998	1
82141-1N340	AE111,CE110,EE111..LHD W(*80,SIDE & AIR CONDITIONER & DAY TIME RUNNING LIGHT SYSTEM)	04/1997 - 08/1998	1
82141-1N251	AE111,CE110,EE111..LHD W(*80,DRIVER SIDE & PASSENGER SIDE)	08/1998 - 10/1999	1
82141-1N271	AE111,CE110,EE111..LHD W(*80,DRIVER SIDE & FRONT PASSENGER SIDE & AIR CONDITIONER)	08/1998 - 10/1999	1
82141-1N311	AE111,CE110,EE111..LHD W(*80,SIDE & DAY TIME RUNNING LIGHT SYSTEM)	08/1998 - 10/1999	1
82141-1N300	AE111,CE110,EE111..LHD W(DAY TIME RUNNING LIGHT SYSTEM)	04/1997 - 08/1998	1
82141-1N281	AE111,CE110,EE111..LHD W(80,SIDE);W(80,DRIVER SIDE & FRONT PASSENGER SIDE & AIR CONDITIONER)	08/1998 - 10/1999	1
82141-1N241	AE111,CE110,EE111..LHD	08/1998 - 10/1999	1
82141-1N341	AE111,CE110,EE111..LHD W(*80,SIDE & AIR CONDITIONER & DAY TIME RUNNING LIGHT SYSTEM)	08/1998 - 10/1999	1
82141-1N301	AE111,CE110,EE111..LHD W(DAY TIME RUNNING LIGHT SYSTEM)	08/1998 - 10/1999	1
82141-1N331	AE111,CE110,EE111..LHD W(AIR CONDITIONER & DAY TIME RUNNING LIGHT SYSTEM)	08/1998 - 10/1999	1
82143 - WIRE, INSTRUMENT PANEL, NO.3
82143-12010	AE111,CE110,EE11#	04/1997 - 10/1999	1
82143-12021	AE111,CE110,EE111 W(*80, SIDE)	08/1997 - 10/1999	1
82210C - FUSIBLE LINK
90982-08246	AE11#,CE110,EE11# 100A,TERM.:MALE,BLUE	04/1997 - 10/1999	1
90982-08282	AE11#,CE110,EE11# 50A,TERM.:FEMALE,RED	04/1997 - 10/1999	1
90982-08228	AE11#,CE110,EE111 50A,TERM.:MALE,RED	04/1997 - 10/1999	1
90982-08281	AE111..LHD;AE115,CE110,EE11#;AE111..RHD..TERRA 40A,TERM.:FEMALE,GRN	04/1997 - 10/1999	1
82223B - WIRE, SWITCH, NO.2
82223-12550	AE111..SED..4FC	04/1997 - 10/1999	1
82285E - WIRE, ILLUMINATION
82285-12020	AE11#,CE110,EE11#	04/1997 - 10/1999	1
82666B - HOLDER, CONNECTOR NO.3
82666-12220	AE11#,CE110,EE11#..LHD	04/1997 - 10/1999	1
82666C - HOLDER, CONNECTOR NO.4
82666-12170	AE11#,CE110,EE11#..LHD	04/1997 - 10/1999	1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-1A620	AE11#,CE110,EE11#	04/1997 - 10/1999	1
82824D - CONNECTOR, WIRING HARNESS
82824-20050	AE11#,CE110,EE11# NO.2	04/1997 - 10/1999	1
82824D - CONNECTOR, WIRING HARNESS
82824-20050	AE11#,CE110,EE11# NO.2	04/1997 - 10/1999	1
82824D - CONNECTOR, WIRING HARNESS
82824-20050	AE11#,CE110,EE11# NO.2	04/1997 - 10/1999	1
82824E - CONNECTOR, WIRING HARNESS
82824-12220	AE11#,CE110,EE11#..STD,TERRA NATURAL	04/1997 - 10/1999	3
82824-30180	AE11#,CE110,EE111..LHD NO.1	04/1997 - 10/1999	1
82824-12200	AE11#,CE110,EE11#	04/1997 - 10/1999	1
82824-12210	AE11#,CE110,EE11# BLACK	04/1997 - 10/1999	1
82824E - CONNECTOR, WIRING HARNESS
82824-12220	AE11#,CE110,EE11#..STD,TERRA NATURAL	04/1997 - 10/1999	3
82824-30180	AE11#,CE110,EE111..LHD NO.1	04/1997 - 10/1999	1
82824-12200	AE11#,CE110,EE11#	04/1997 - 10/1999	1
82824-12210	AE11#,CE110,EE11# BLACK	04/1997 - 10/1999	1
82824F - CONNECTOR, WIRING HARNESS
82824-12200	AE11#,CE110,EE11#..LHD	04/1997 - 10/1999	1
Common parts
90159-70003
Linked diagrams
8121
8401

ILLUST NO. 5 OF 7(9704- )

Click highlighted areas on diagram

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82715-12740
82715-12750
82715-12760
82715-12780
82715-12790
82715-32470
82715-34430
82715-67020
90119-06801
90119-08848
91651-B0614

AE111L-AEPDKW (1997)

ILLUST NO. 7 OF 7(9704- )

ILLUST NO. 4 OF 7(9704- )LHD..SED

ILLUST NO. 1 OF 7(9704- )AE11#

ILLUST NO. 5 OF 7(9704- )

ILLUST NO. 5 OF 7(9704- )

ILLUST NO. 6 OF 7(9704- )

ILLUST NO. 6 OF 7(9704- )AE11#

ILLUST NO. 2 OF 7(9704- )

ILLUST NO. 3 OF 7(9704- )LHD

ILLUST NO. 5 OF 7(9704- )

Part Price Details
