AE111L-AEPDKW (1997)

Toyota Corolla Sed/Wg

Production Apr 1997 - Oct 1999
Engine 4AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )SED

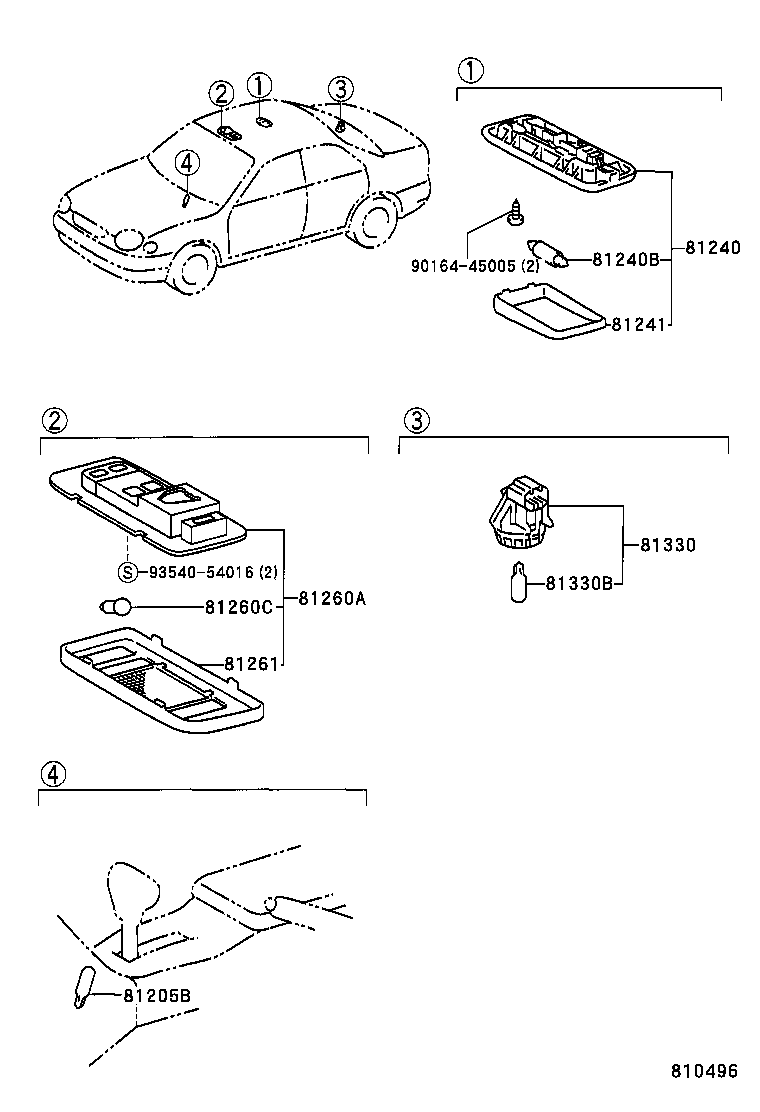

Click highlighted areas on diagram

diagram 81205B 81240 81240B 81241 81260A 81260C 81261 81330 81330B 9016445005 9354054016
Part # Description Qty Price
81205B - BULB, ASH RECEPTACLE LAMP
90981-11018

AE11#,CE110,EE11#

12V 1.2W W/O SOCKET

 1
81240 - LAMP ASSY, ROOM, NO.1
81240-12060B6

AE11#,CE110,EE11#

MD.CHARCOAL,TRIM1#

 1
81240-12060B6

AE111,CE110,EE11#..SED

MD.CHARCOAL,TRIM1#

 1
81240-12060B6

AE11#,CE110,EE11#..LUNA,TERRA

MD.CHARCOAL,TRIM10,12

 1
81240-12060A2

AE111,CE110,EE11#..SED..(LUNA,TERRA)

IVORY,TRIM0#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-14011

AE11#,CE110,EE11#

12V 8W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-12020

AE11#,CE110,EE11#

 1
81260A - LAMP ASSY, MAP
81260-20160B2

AE111,CE110,EE11#..SED..(LUNA,TERRA)

MD.CHARCOAL,TRIM10,12

 1
81260-20160A2

AE111,CE110,EE11#..SED..(LUNA,TERRA)

IVORY,TRIM0#

 1
81260-20160B2

AE111,CE110,EE11#..SED..(LUNA,TERRA)

MD.CHARCOAL,TRIM1#

 1
81260C - BULB(FOR MAP LAMP)
90981-12014

AE11#,CE110,EE11#..LUNA,TERRA

12V 10W,W(MOON ROOF)

 1
81261 - LENS AND COVER, MAP LAMP
81261-20160B4

AE111,CE110,EE11#..SED..(LUNA,TERRA)

MD.CHARCOAL,TRIM1#

 1
81261-20160A1

AE111,CE110,EE11#..SED..(LUNA,TERRA)

IVORY,TRIM0#

 1
81261-20160B4

AE111,CE110,EE11#..SED..(LUNA,TERRA)

MD.CHARCOAL,TRIM10,12

 1
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330-12020

AE111,CE110,EE11#..SED..(LUNA,TERRA)

 1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
90981-11020

AE111,CE110,EE11#..SED..(LUNA,TERRA)

12V 3.8W

 1
Common parts
90164-45005
93540-54016
