AE111L-AEPDKW (1997)

Toyota Corolla Sed/Wg

Production Apr 1997 - Oct 1999
Engine 4AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )AE11#,CE110,EE11#..LHD

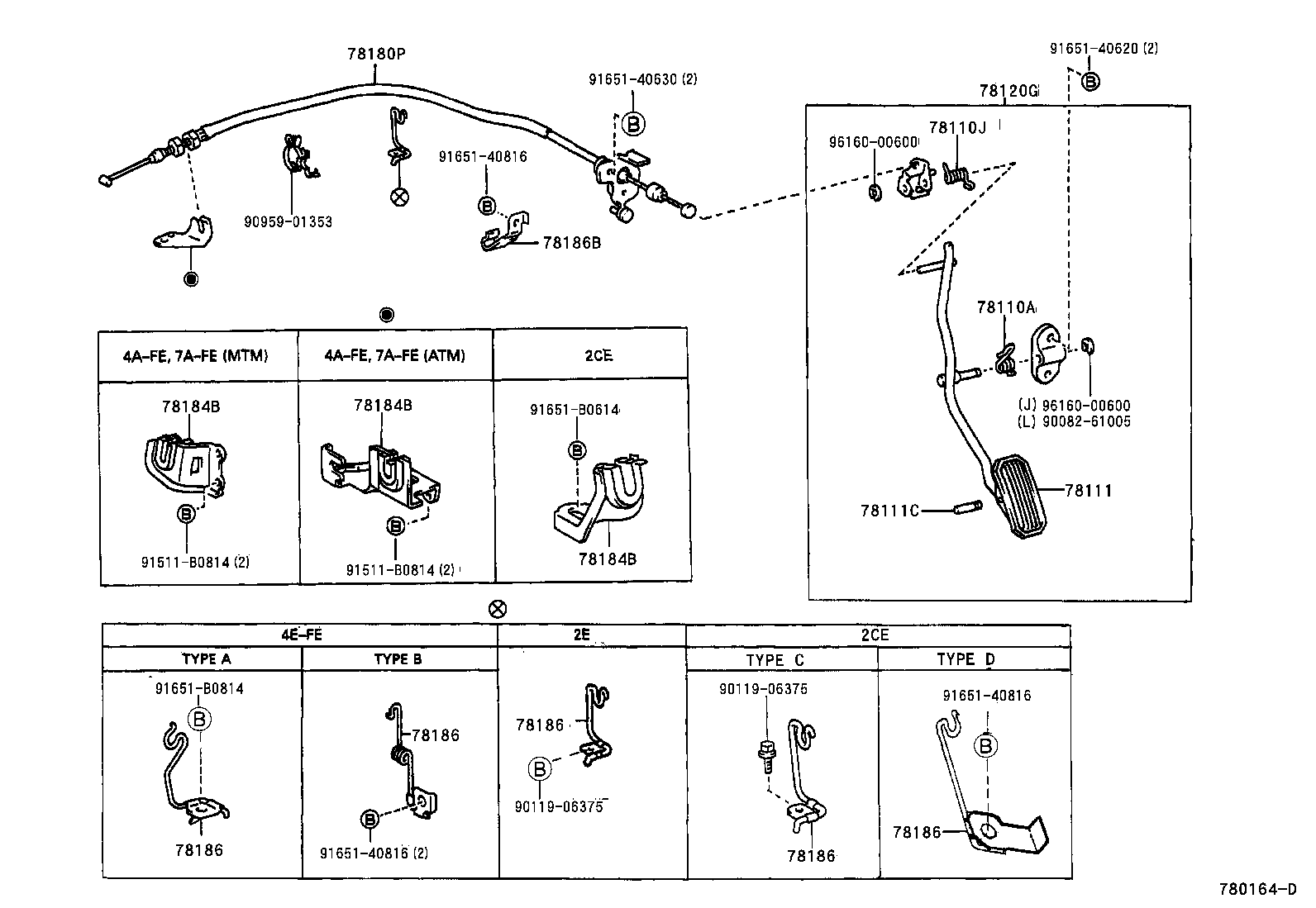

Click highlighted areas on diagram

diagram 78110A 78110J 78111 78111C 78120G 78180P 78184B 78184B 78184B 78186 78186 78186 78186 78186 78186B 9008261005 9011906375 9011906375 9095901353 91511B0814 91511B0814 9165140620 9165140630 9165140816 9165140816 9165140816 91651B0614 91651B0814 9616000600 9616000600
Part # Description Qty Price
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-18025

CE110..LHD;EE111..3FC;AE11#,EE110

 1
78110J - SPRING (FOR ACCELERATOR PEDAL ROD)
90959-03020

AE111..4FC

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-12221

AE111..4FC

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-1A520

AE11#..LHD

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78024-12041

AE111..4FC

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78024-12041

AE111..4FC

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78024-12041

AE111..4FC

 1
Common parts
90082-61005
90119-06375
90959-01353
91511-B0814
91651-40620
91651-40630
91651-40816
91651-B0614
91651-B0814
96160-00600
