AE111L-AEPDKW (1997)

Toyota Corolla Sed/Wg

Production Apr 1997 - Oct 1999
Engine 4AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )SED

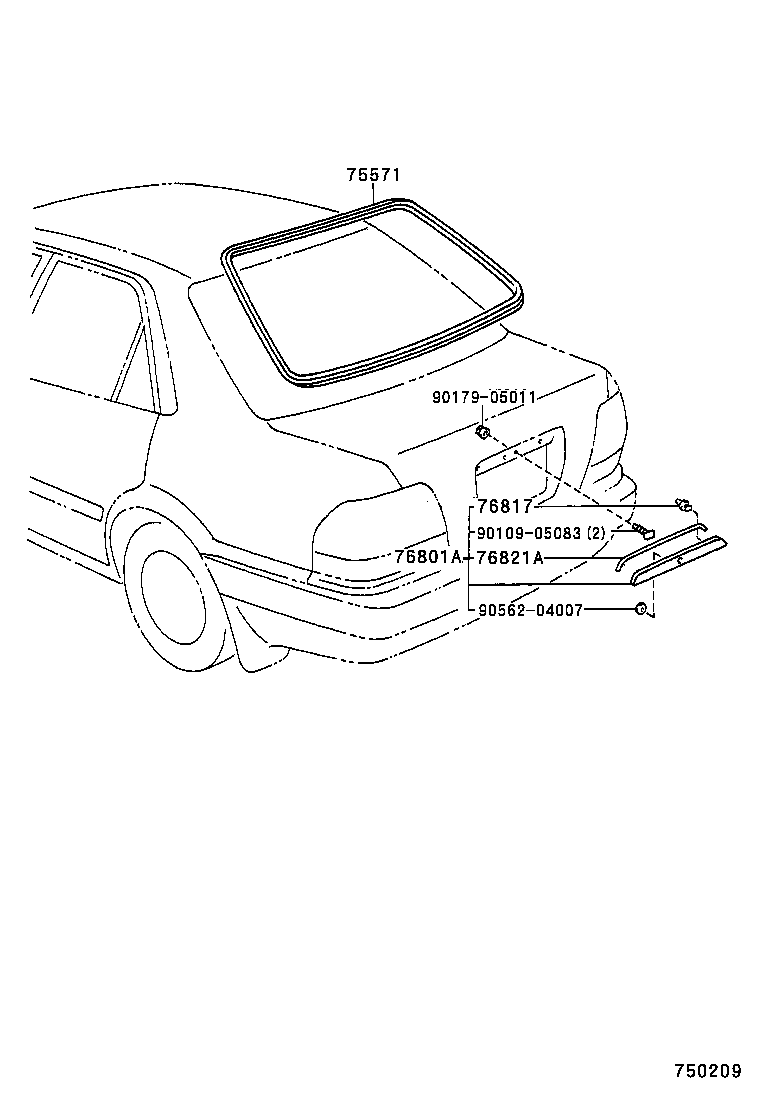

Click highlighted areas on diagram

diagram 75571 76801A 76817 76821A 9010905083 9017905011 9056204007
Part # Description Qty Price
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75571-12680

AE111,CE110,EE11#..SED

 1
76801A - GARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE
76801-12620D3

AE111,CE110,EE111..SED..(LUNA,TERRA)

SUPER RED II,3E5

 1
76801-12610

AE111,CE110,EE11#..SED..(STD,TERRA)

BLACK

 1
76801-12620A0

AE111,CE110,EE111..SED..(LUNA,TERRA)

SUPER WHITE 2,040

 1
76801-12620K1

AE111,CE110,EE111..SED..(LUNA,TERRA)

VIOLET M.M.,944

 1
76801-12620G1

AE111,CE110,EE111..SED..(LUNA,TERRA)

GREEN M.M.,6P5

 1
76801-12620J1

AE111,CE110,EE111..SED..(LUNA,TERRA)

BLUE M.M.,8L5

 1
76801-12620J3

AE111,CE110,EE111..SED..(LUNA,TERRA)

DK.BLUE,8M4

 1
76801-12620B1

AE111,CE110,EE111..SED..(LUNA,TERRA)

SILVER ME,199

 1
76801-12620J4

AE111,CE110,EE111..SED..(LUNA,TERRA)

DK.BLUE M.M.,8L3

 1
76801-12620D1

AE111,CE110,EE111..SED..(LUNA,TERRA)

CORAL REEF M.M.,3L6

 1
76817 - CLIP, BACK DOOR OUTSIDE GARNISH
76817-12050

AE111,CE110,EE11#..SED

 2
76821A - PROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH
76821-12150

AE111,CE110,EE11#..SED

 1
Common parts
90109-05083
90179-05011
90562-04007
