AE111L-AEPDKW (1997)

Toyota Corolla Sed/Wg

Production Apr 1997 - Oct 1999
Engine 4AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )CE110..RHD..SED ; (9704- )AE111,EE111,WZE110,ZZE11#..SED ; (0008-

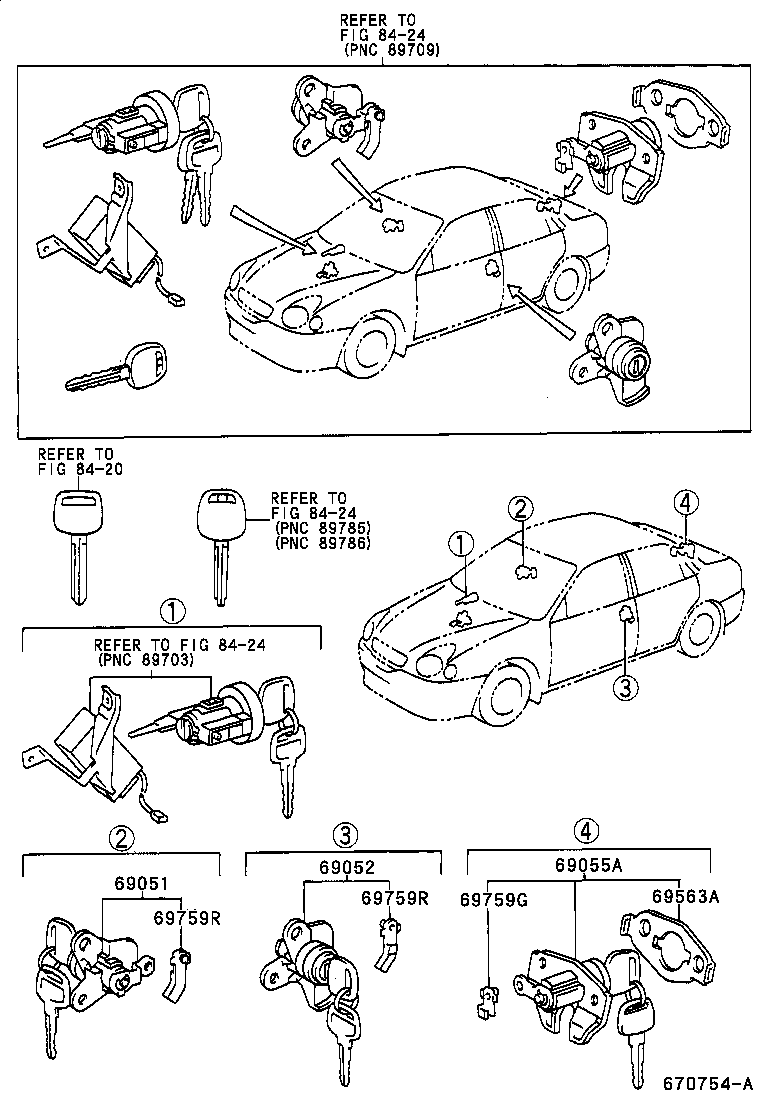

Click highlighted areas on diagram

W(ENGINE IMMOBILIZER SYSTEM)

diagram 69051 69052 69055A 69563A 69759G 69759R 69759R 8420 8424 8424 8424
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-12530

AE11#,CE110,EE11#

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-12530

AE11#,CE110,EE11#

 1
69055A - CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
69055-1A220

AE111,CE110,EE11#..SED

 1
69563A - PAD, LUGGAGE COMPARTMENT DOOR LOCK CYLINDER
69563-12130

AE111,CE110,EE11#..SED

 1
69759G - SNAP, LUGGAGE DOOR LOCK CYLINDER
69759-24090

AE111,CE110,EE11#..SED

 1
69759R - SNAP, FRONT DOOR LOCK CYLINDER
69759-12080

AE11#,CE110,EE11#

RH

 1
69759-12090

AE11#,CE110,EE11#

LH

 1
69759R - SNAP, FRONT DOOR LOCK CYLINDER
69759-12080

AE11#,CE110,EE11#

RH

 1
69759-12090

AE11#,CE110,EE11#

LH

 1
Linked diagrams
8420
8424
