AE111L-AEPDKW (1997)

Toyota Corolla Sed/Wg

Production Apr 1997 - Oct 1999
Engine 4AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )SED

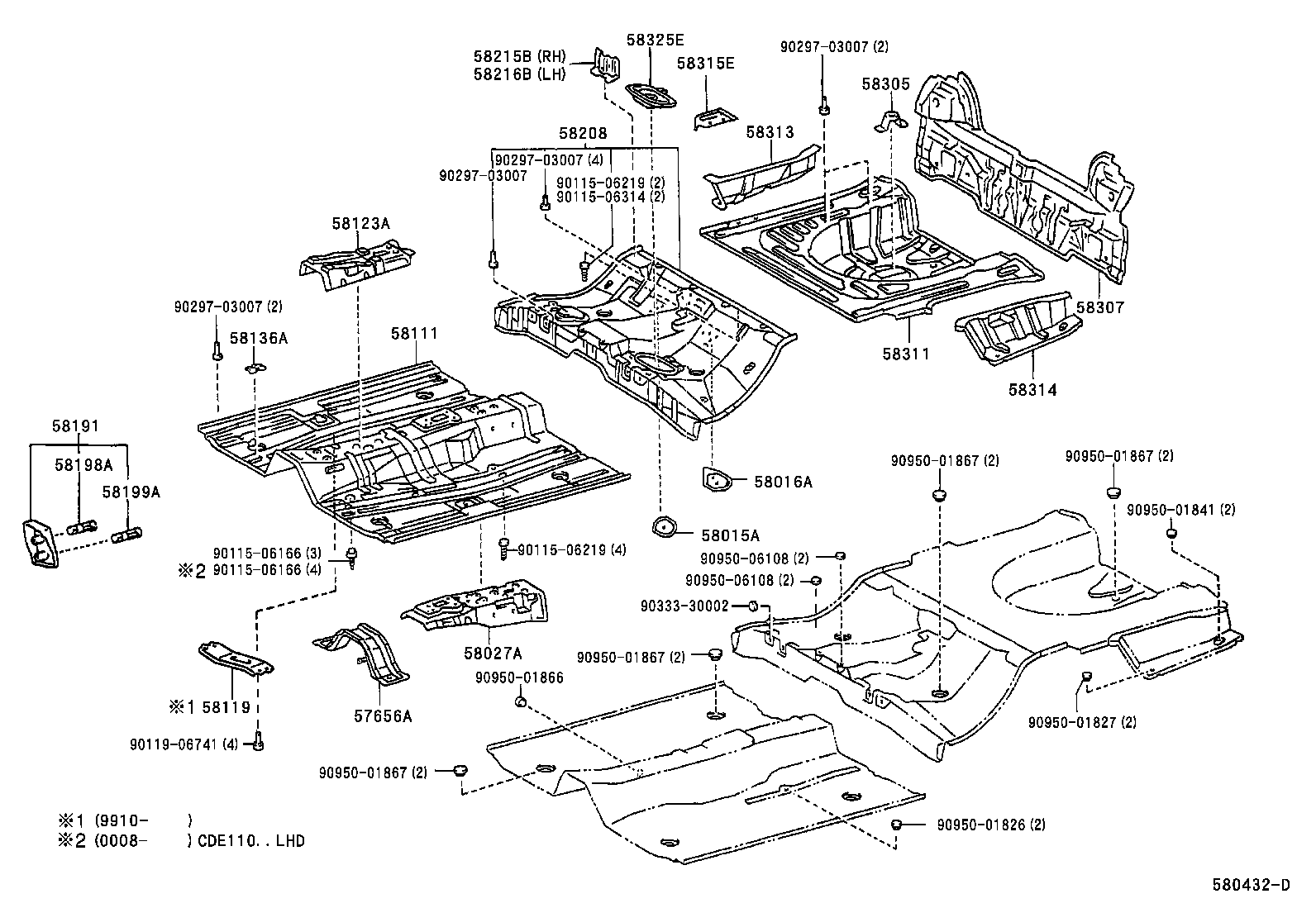

Click highlighted areas on diagram

diagram 57656A 58015A 58016A 58027A 58111 58119 58123A 58136A 58191 58198A 58199A 58208 58215B 58216B 58305 58307 58311 58313 58314 58315E 58325E 9011506166 9011506166 9011506219 9011506219 9011506314 9011906741 9029703007 9029703007 9029703007 9029703007 9033330002 9095001826 9095001827 9095001841 9095001866 9095001867 9095001867 9095001867 9095001867 9095006108 9095006108
Part # Description Qty Price
58015A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58015-12040

AE11#,CE110,EE11#

 1
58016A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58016-12010

AE11#,CE110,EE11#

 1
58027A - REINFORCE SUB-ASSY, SEAT BELT ANCHOR
58027-12121

AE111,CE110,EE11#

 1
58111 - PAN, FRONT FLOOR
58111-12262

AE111,CE110,EE11#

 1
58123A - SUPPORT, SHIFT & SELECT LEVER
58013-12060

AE111,CE110,EE11#

 1
58136A - COVER, FRONT FLOOR SERVICE HOLE
58136-12030

AE11#,CE110,EE11#

 2
58191 - FOOTREST, FRONT FLOOR
58192-12060

AE11#,CE110,EE11#..LHD

 1
58198A - CLIP, FOOTREST, NO.1
58198-12040

AE11#,CE110,EE11#..LHD

 2
58208 - PAN, CENTER FLOOR
58211-12911

AE111,CE110,EE11#..SED

 1
58215B - BRACKET, REAR SEAT MOUNTING, RH
58215-12041

AE111,CE110,EE11#..SED

 1
58216B - BRACKET, REAR SEAT MOUNTING, LH
58216-12040

AE111,CE110,EE11#..SED

 1
58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58351-12040

AE11#,CE110,EE11#

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-1A460

AE111,CE110,EE11#..SED..(LUNA,TERRA)

W(SPLIT TYPE REAR SEAT)

 1
58307-1A470

AE111,CE110,EE11#..SED..(STD,TERRA)

 1
58311 - PAN, REAR FLOOR
58311-12210

AE11#,CE110,EE11#

 1
58313 - PANEL, REAR FLOOR SIDE, RH
58313-12904

AE111,CE110,EE11#..SED

 1
58314 - PANEL, REAR FLOOR SIDE, LH
58314-12250

AE111,CE110,EE11#..SED

 1
58315E - EXTENSION REAR FLOOR SIDE PANEL, FRONT RH
58315-12070

AE11#,CE110,EE11#

 1
58325E - COVER, REAR FLOOR SERVICE HOLE
58325-12100

AE11#,CE110,EE11#

 1
Common parts
90115-06166
90115-06219
90115-06314
90119-06741
90297-03007
90333-30002
90950-01826
90950-01827
90950-01841
90950-01866
90950-01867
90950-06108
