AE111L-AEPDKW (1997)

Toyota Corolla Sed/Wg

Production Apr 1997 - Oct 1999
Engine 4AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )SED

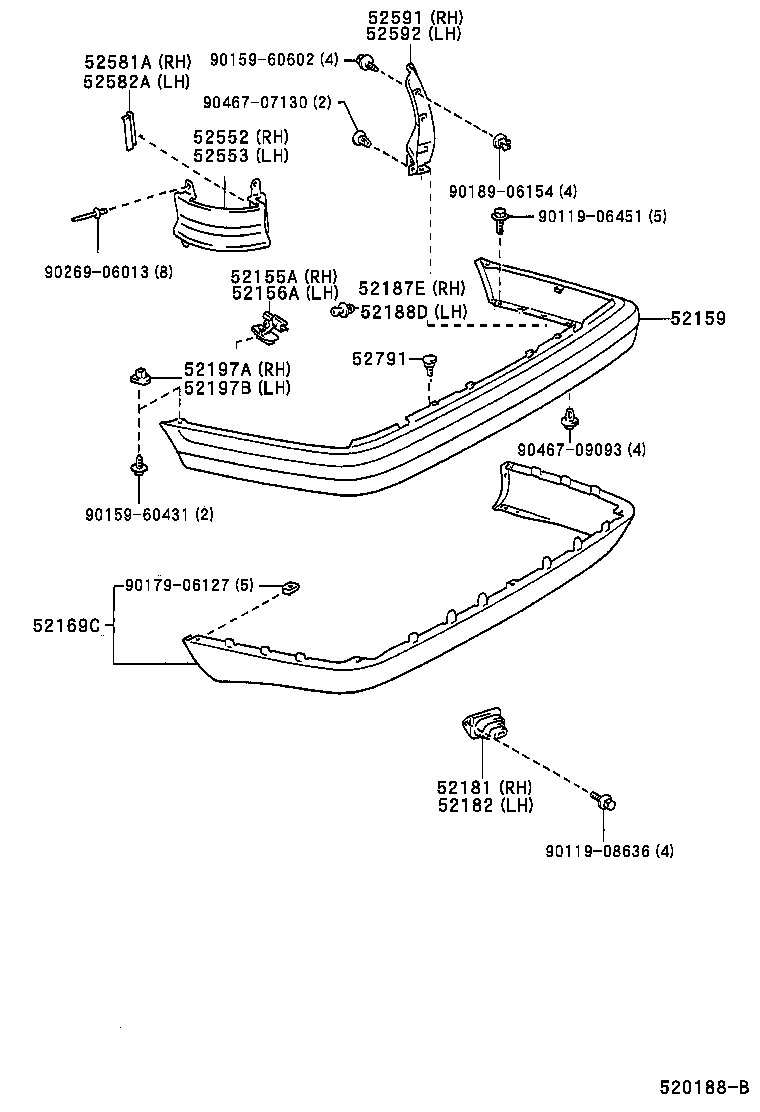

Click highlighted areas on diagram

diagram 52155A 52156A 52159 52169C 52181 52182 52187E 52188D 52197A 52197B 52552 52553 52581A 52582A 52591 52592 52791 9011906451 9011908636 9015960431 9015960602 9017906127 9018906154 9026906013 9046707130 9046709093
Part # Description Qty Price
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-16130

AE111,CE110,EE11#..SED

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52155-16130

AE111,CE110,EE11#..SED

 1
52159 - COVER, REAR BUMPER
52159-1A750

AE111,CE110,EE11#..SED

 1
52159-1A750

AE111,CE110,EE11#..SED

 1
52169C - COVER, REAR BUMPER, LOWER
52169-12110

AE111,CE110,EE11#..SED

 1
52181 - ARM, REAR BUMPER, RH
52181-12400

AE111,CE110,EE11#..SED

 1
52182 - ARM, REAR BUMPER, LH
52182-12320

AE111,CE110,EE11#..SED

 1
52187E - GUIDE, REAR BUMPER LOCATION, RH
52187-16070

AE111,CE110,EE11#..SED

 1
52188D - GUIDE, REAR BUMPER LOCATION, LH
52187-16070

AE111,CE110,EE11#..SED

 1
52197A - BRACKET, REAR BUMPER SEAL, RH
52197-16020

AE11#,CE110,EE11#

 1
52197B - BRACKET, REAR BUMPER SEAL, LH
52197-16020

AE11#,CE110,EE11#

 1
52552 - FILLER, REAR BUMPER, RH
52552-12070

AE111,CE110,EE11#..SED

 1
52553 - FILLER, REAR BUMPER, LH
52553-12070

AE111,CE110,EE11#..SED

 1
52581A - PROTECTOR, REAR BUMPER FILLER
52581-12110

AE111,CE110,EE11#..SED

 1
52582A - PROTECTOR, REAR BUMPER FILLER, LH
52582-12050

AE111,CE110,EE11#..SED

 1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-12110

AE11#,CE110,EE11#

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-12030

AE11#,CE110,EE11#

 1
52791 - BOLT, BUMPER MOULDING SET, NO.1
52791-12030

AE111,CE110,EE11#..SED

 4
Common parts
90119-06451
90119-08636
90159-60431
90159-60602
90179-06127
90189-06154
90269-06013
90467-07130
90467-09093
