AE111L-AEPDKW (1997)

Toyota Corolla Sed/Wg

Production Apr 1997 - Oct 1999
Engine 4AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )AE11#,EE111..LHD

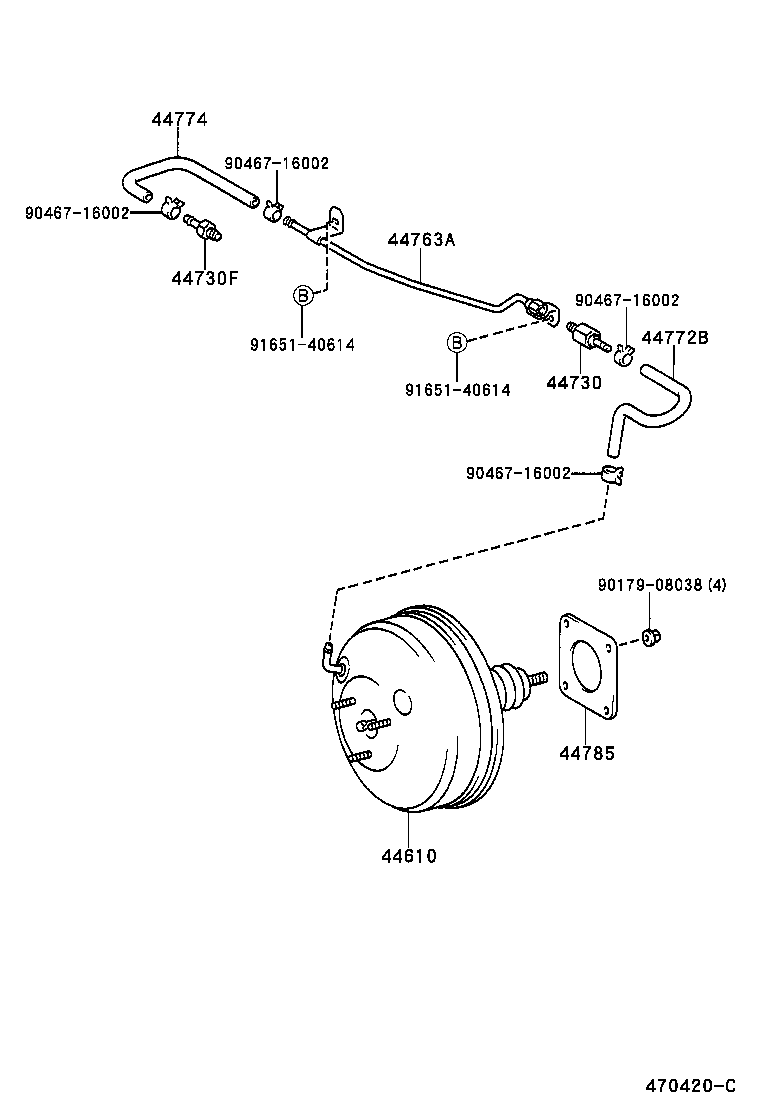

Click highlighted areas on diagram

diagram 44610 44730 44730F 44763A 44772B 44774 44785 9017908038 9046716002 9046716002 9046716002 9046716002 9165140614 9165140614
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-1E360

AE111..LHD..TERRA;EE111..LHD..SED..TERRA

ROUGH ROAD PACKAGE

 1
44610-1E370

AE111,CE110,EE111..LHD

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44580-22030

AE11#,EE11#..LHD

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319

AE11#

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-12300

AE11#..LHD

W(ABS)

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-12440

AE11#,CE110,EE11#..LHD

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-12370

AE111..LHD

 1
44774-12250

AE11#..LHD

W(ABS)

 1
44785 - GASKET, BRAKE BOOSTER
44785-20020

AE11#,CE110,EE11#

 1
Common parts
90179-08038
90467-16002
91651-40614
