AE111L-AEPDKW (1997)

Toyota Corolla Sed/Wg

Production Apr 1997 - Oct 1999
Engine 4AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )AE11#..LHD

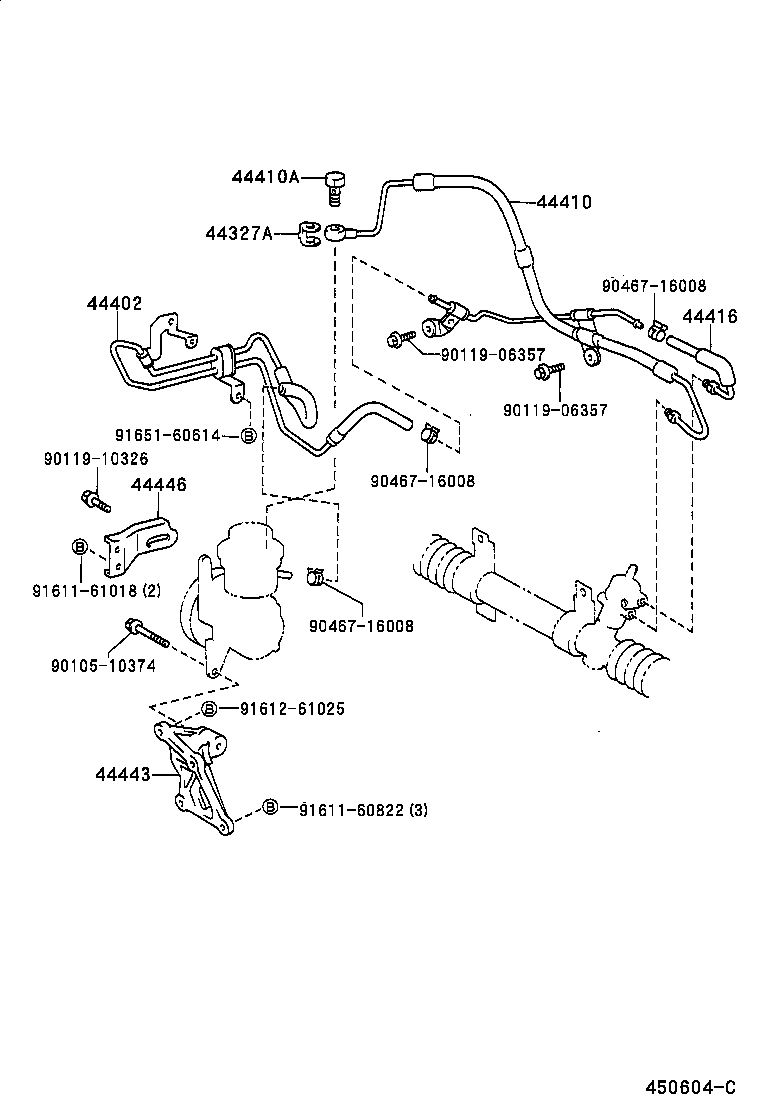

Click highlighted areas on diagram

diagram 44327A 44402 44410 44410A 44416 44443 44446 9010510374 9011906357 9011906357 9011910326 9046716008 9046716008 9046716008 9161160822 9161161018 9161261025 9165160614
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010

AE11#,CE110

 1
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44402-12150

AE11#..LHD

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-12492

AE11#..LHD

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16012

AE11#,CE110

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44406-12160

AE11#,CE110,EE11#..LHD

 1
44443 - BRACKET, PUMP
44443-12100

AE11#

 1
44446 - STRUT, ADJUSTING
44446-12060

AE111

 1
Common parts
90105-10374
90119-06357
90119-10326
90467-16008
91611-60822
91611-61018
91612-61025
91651-60614
