AE111L-AEPDKW (1997)

Toyota Corolla Sed/Wg

Production Apr 1997 - Oct 1999
Engine 4AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )4AFE,7AFE

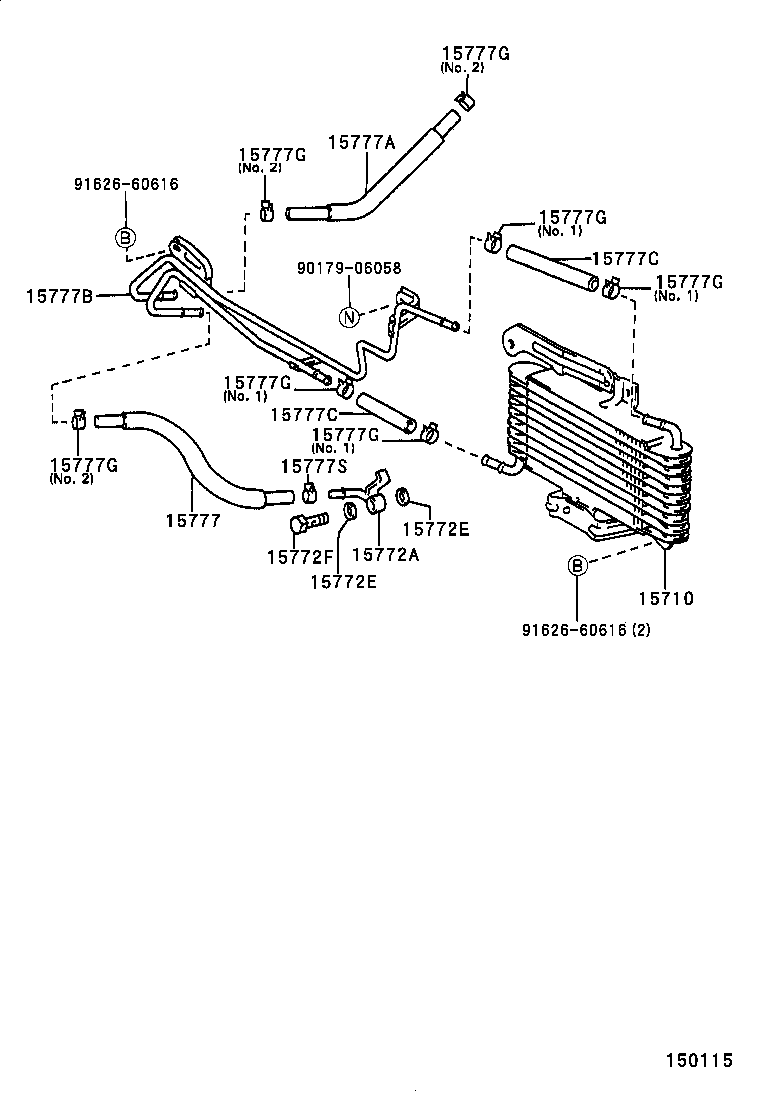

Click highlighted areas on diagram

diagram 15710 15772A 15772E 15772E 15772F 15777 15777A 15777B 15777C 15777C 15777G 15777G 15777G 15777G 15777G 15777G 15777G 15777S 9017906058 9162660616 9162660616
Part # Description Qty Price
15710 - COOLER ASSY, OIL
15700-16100

4AFE,7AFE..AE11#

 1
15772A - UNION(FOR OIL PIPE)
90405-10030

4AFE..AE111

 1
15772E - GASKET(FOR OIL PIPE)
90430-12031

4AFE,7AFE..AE11#

 2
15772E - GASKET(FOR OIL PIPE)
90430-12031

4AFE,7AFE..AE11#

 2
15772F - BOLT, UNION(FOR OIL PIPE)
90401-12009

4AFE,7AFE..AE11#

 1
15777 - HOSE, OIL COOLER
15777-16110

4AFE,7AFE..AE11#

 1
15777A - HOSE, OIL COOLER
15778-16080

4AFE,7AFE..AE11#

 1
15777B - PIPE, OIL COOLER
15767-16140

4AFE,7AFE..AE11#

 1
15777C - HOSE, OIL COOLER
15779-16030

4AFE,7AFE..AE11#

 2
15777C - HOSE, OIL COOLER
15779-16030

4AFE,7AFE..AE11#

 2
15777G - CLAMP OR CRIP, HOSE
90467-15018

4AFE,7AFE..AE11#

NO.1

 4
90467-15025

4AFE,7AFE..AE11#

NO.2

 3
15777G - CLAMP OR CRIP, HOSE
90467-15018

4AFE,7AFE..AE11#

NO.1

 4
90467-15025

4AFE,7AFE..AE11#

NO.2

 3
15777G - CLAMP OR CRIP, HOSE
90467-15018

4AFE,7AFE..AE11#

NO.1

 4
90467-15025

4AFE,7AFE..AE11#

NO.2

 3
15777G - CLAMP OR CRIP, HOSE
90467-15018

4AFE,7AFE..AE11#

NO.1

 4
90467-15025

4AFE,7AFE..AE11#

NO.2

 3
15777G - CLAMP OR CRIP, HOSE
90467-15018

4AFE,7AFE..AE11#

NO.1

 4
90467-15025

4AFE,7AFE..AE11#

NO.2

 3
15777G - CLAMP OR CRIP, HOSE
90467-15018

4AFE,7AFE..AE11#

NO.1

 4
90467-15025

4AFE,7AFE..AE11#

NO.2

 3
15777G - CLAMP OR CRIP, HOSE
90467-15018

4AFE,7AFE..AE11#

NO.1

 4
90467-15025

4AFE,7AFE..AE11#

NO.2

 3
15777S - CLAMP OR CLIP, HOSE
90467-15025

4AFE,7AFE..AE11#

 1
Common parts
90179-06058
91626-60616
