AE101R-AEMNKW (1992)
Toyota Corolla Sed/Wg
ILLUST NO. 3 OF 3(9205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14044 | ||||
| 90099-14045 | ||||
| 90099-14046 | ||||
| 90099-14056 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
ILLUST NO. 2 OF 3(9505- )AE101..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 48094-10010 |
AE101,CE100,EE10# |
1 | ||
| 88374-30010 |
AE10#,CE100,EE10# |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-12020 |
CE100..LHD;AE101,EE101..RHD |
1 | ||
| 88374-30010 |
AE10#,CE100,EE10# |
1 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-24010 |
AE101,CE100,EE10# |
1 | ||
| 88375-30280 |
AE10#,CE100,EE10# |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
AE10#,CE100,EE10# |
1 | ||
| 88375-30270 |
AE101,CE100,EE10# |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02008 |
AE101,CE100,EE101 200G |
3 | ||
| 90986-02004 |
AE101,CE100,EE101 250G |
3 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-50010 |
AE101,CE100,EE10# |
1 | ||
| 88645-20050 |
AE10#,CE100,EE10# |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-12701 |
AE101..RHD |
1 | ||
| 88711-1A160 |
AE103;AE101..RHD |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-12880 |
AE101..RHD |
1 | ||
| 88712-1A130 |
AE101..RHD |
1 | ||
| 88712-1A450 |
AE101..RHD |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-1A240 |
AE101,EE101..RHD |
1 | ||
| 88716-1A020 |
AE101,EE101..RHD |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-12890 |
AE101,EE101..RHD |
1 | ||
| 88716-1A250 |
AE101,EE101..RHD |
1 | ||
| 88716-1A010 |
AE101,EE101..RHD |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-12560 |
AE101,EE101..RHD |
1 | ||
| 88717-12760 |
AE101,EE101..RHD |
1 | ||
| 88717-1A020 |
AE101,EE101..RHD |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-12060 |
AE101,CE100,EE101..RHD |
1 | ||
| 88723-12120 |
AE10#,CE100,EE10# |
1 | ||
| Common parts | ||||
| 88718-1A540 | ||||
| 88718-1A590 | ||||
| 88718-1A640 | ||||
| 90091-20619 | ||||
| 90119-06458 | ||||
| 90179-06032 | ||||
| 93385-56025 | ||||

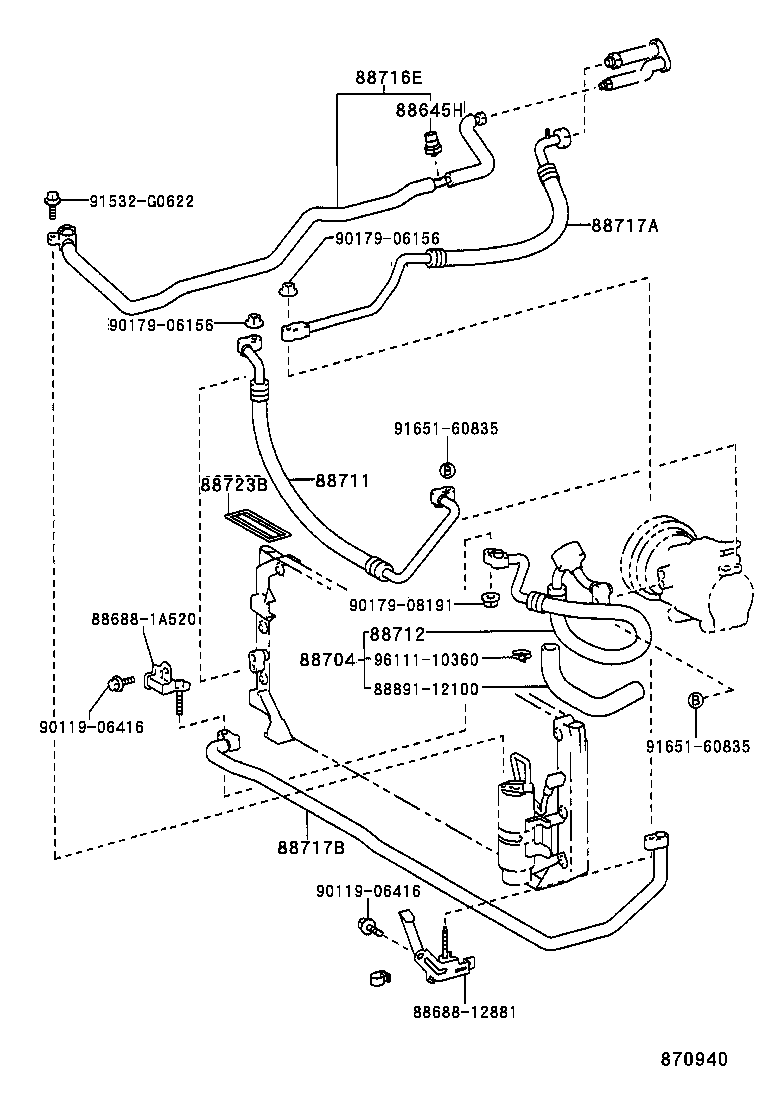

ILLUST NO. 2 OF 3(9205-9505)AE101..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-50010 |
AE101,CE100,EE10# |
1 | ||
| 88645-20050 |
AE10#,CE100,EE10# |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-12490 |
AE101..RHD |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-12701 |
AE101..RHD |
1 | ||
| 88711-1A160 |
AE103;AE101..RHD |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-12880 |
AE101..RHD |
1 | ||
| 88712-1A130 |
AE101..RHD |
1 | ||
| 88712-1A450 |
AE101..RHD |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-12890 |
AE101,EE101..RHD |
1 | ||
| 88716-1A250 |
AE101,EE101..RHD |
1 | ||
| 88716-1A010 |
AE101,EE101..RHD |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-12560 |
AE101,EE101..RHD |
1 | ||
| 88717-12760 |
AE101,EE101..RHD |
1 | ||
| 88717-1A020 |
AE101,EE101..RHD |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-12630 |
AE101,EE101..RHD |
1 | ||
| 88717-12830 |
AE101,EE101..RHD |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-12060 |
AE101,CE100,EE101..RHD |
1 | ||
| 88723-12120 |
AE10#,CE100,EE10# |
1 | ||
| Common parts | ||||
| 88688-12881 | ||||
| 88688-1A520 | ||||
| 88891-12100 | ||||
| 90119-06416 | ||||
| 90179-06156 | ||||
| 90179-08191 | ||||
| 91532-G0622 | ||||
| 91651-60835 | ||||
| 96111-10360 | ||||
ILLUST NO. 1 OF 3(9205-9312)AE101,EE10#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453A - FAN, COOLING | ||||
| 88453-12080 |
AE101,EE101 |
1 | ||
| 88453-10021 |
AE10#;EE101..RHD |
1 | ||
| 88453-10021 |
AE10#,EE101 |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-12130 |
AE101,EE101 |
1 | ||
| 88454-12150 |
AE10#,EE101 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-12410 |
AE101,EE101 |
1 | ||
| 88460-12440 |
AE10#,EE101 |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12100 |
AE10#,CE100,EE10# |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12100 |
AE10#,CE100,EE10# |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-12110 |
AE10#,CE100,EE10# |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-12110 |
AE10#,CE100,EE10# |
2 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88471-60010 |
AE10#,CE100,EE101 |
1 | ||
| 88471-12020 |
AE101,CE100,EE101 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88473-12080 |
AE10#,CE100,EE10# |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02008 |
AE101,CE100,EE101 200G |
3 | ||
| 90986-02004 |
AE101,CE100,EE101 250G |
3 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-12150 |
AE101,EE101 |
1 | ||
| 88550-12130 |
AE101,CE100,EE101 |
1 | ||
| 88550-12160 |
AE10#,EE101 |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-12270 |
AE10#,EE101 |
1 | ||
| 88590-12210 |
AE101,EE101 |
1 | ||
| 88892P - NET, FAN SHROUD | ||||
| 88892-12200 |
AE101,EE10# |
1 | ||
| Common parts | ||||
| 82711-2B640 | ||||
| 88467-12130 | ||||
| 88467-12140 | ||||
| 88569-12280 | ||||
| 88688-1A050 | ||||
| 88897-12250 | ||||
| 88899-12290 | ||||
| 90091-20609 | ||||
| 90099-00192 | ||||
| 90099-04117 | ||||
| 90099-04119 | ||||
| 90119-06336 | ||||
| 90119-06502 | ||||
| 90179-06032 | ||||
| 93385-56025 | ||||
ILLUST NO. 1 OF 3(9312- )AE10#,EE10#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453A - FAN, COOLING | ||||
| 88453-12080 |
AE101,EE101 |
1 | ||
| 88453-10021 |
AE10#;EE101..RHD |
1 | ||
| 88453-10021 |
AE10#,EE101 |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-12130 |
AE101,EE101 |
1 | ||
| 88454-12150 |
AE10#,EE101 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-12410 |
AE101,EE101 |
1 | ||
| 88460-12440 |
AE10#,EE101 |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12100 |
AE10#,CE100,EE10# |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12100 |
AE10#,CE100,EE10# |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-12110 |
AE10#,CE100,EE10# |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-12110 |
AE10#,CE100,EE10# |
2 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88471-60010 |
AE10#,CE100,EE101 |
1 | ||
| 88471-12020 |
AE101,CE100,EE101 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88473-12080 |
AE10#,CE100,EE10# |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02008 |
AE101,CE100,EE101 200G |
3 | ||
| 90986-02004 |
AE101,CE100,EE101 250G |
3 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-12150 |
AE101,EE101 |
1 | ||
| 88550-12130 |
AE101,CE100,EE101 |
1 | ||
| 88550-12160 |
AE10#,EE101 |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-12270 |
AE10#,EE101 |
1 | ||
| 88590-12210 |
AE101,EE101 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88726-12360 |
AE101,CE100,EE101 |
1 | ||
| 88726-12410 |
AE10#,CE100,EE101 |
1 | ||
| Common parts | ||||
| 82711-2B640 | ||||
| 88569-12280 | ||||
| 88897-12250 | ||||
| 88899-12290 | ||||
| 90091-20609 | ||||
| 90099-04117 | ||||
| 90099-04119 | ||||
| 90119-06336 | ||||
| 90119-06502 | ||||
| 93385-56025 | ||||
