AE101R-AEMNKW (1992)
Toyota Corolla Sed/Wg
Production
May 1992
-
Apr 1997
Engine
4AFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9205- )

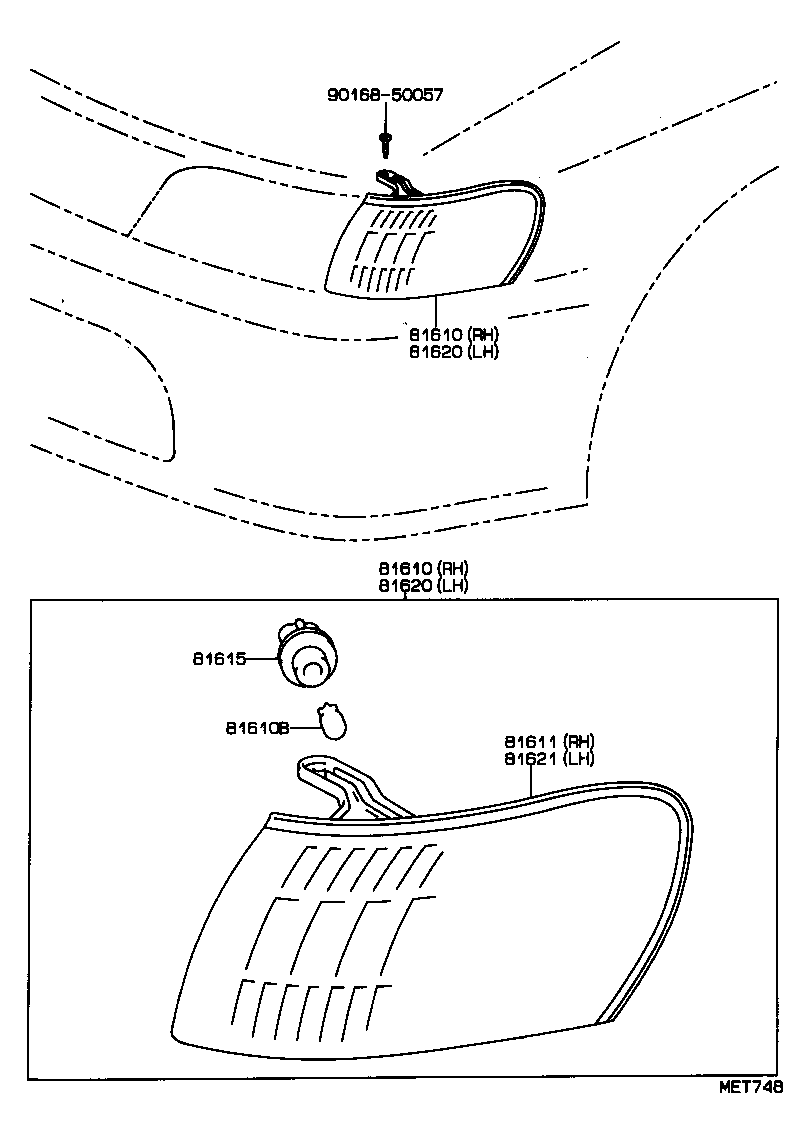

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81610 - LAMP ASSY, PARKING & CLEARANCE, RH | ||||
| 81610-12590 |
AE101,CE100,EE101..RHD |
1 | ||
| 81610-12580 |
AE101,CE100,EE101..RHD RH AIMING |
1 | ||
| 81610 - LAMP ASSY, PARKING & CLEARANCE, RH | ||||
| 81610-12590 |
AE101,CE100,EE101..RHD |
1 | ||
| 81610-12580 |
AE101,CE100,EE101..RHD RH AIMING |
1 | ||
| 81610B - BULB(FOR PARKING & CLEARANCE LAMP) | ||||
| 99132-12050 |
AE10#,CE100,EE10# 12V 5W |
2 | ||
| 81611 - LENS, PARKING & CLEARANCE LAMP, RH | ||||
| 81611-12590 |
AE101,CE100,EE101..RHD |
1 | ||
| 81611-12580 |
AE101,CE100,EE101..RHD RH AIMING |
1 | ||
| 81615 - SOCKET AND WIRE, CLEARANCE LAMP | ||||
| 90075-99079 |
AE101,CE100,EE101..RHD RH AIMING |
2 | ||
| 81615-12590 |
AE101,CE100,EE101..RHD |
2 | ||
| 81620 - LAMP ASSY, PARKING & CLEARANCE, LH | ||||
| 81620-12580 |
AE101,CE100,EE101..RHD RH AIMING |
1 | ||
| 81620-12590 |
AE101,CE100,EE101..RHD |
1 | ||
| 81620 - LAMP ASSY, PARKING & CLEARANCE, LH | ||||
| 81620-12580 |
AE101,CE100,EE101..RHD RH AIMING |
1 | ||
| 81620-12590 |
AE101,CE100,EE101..RHD |
1 | ||
| 81621 - LENS, PARKING & CLEARANCE LAMP, LH | ||||
| 81621-12590 |
AE101,CE100,EE101..RHD |
1 | ||
| 81621-12580 |
AE101,CE100,EE101..RHD RH AIMING |
1 | ||
| Common parts | ||||
| 90168-50057 | ||||
