AE101L-AWMDKW (1992)
Toyota Corolla Sed/Wg
Production
May 1992
-
Apr 1997
Engine
4AFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9205- )WG

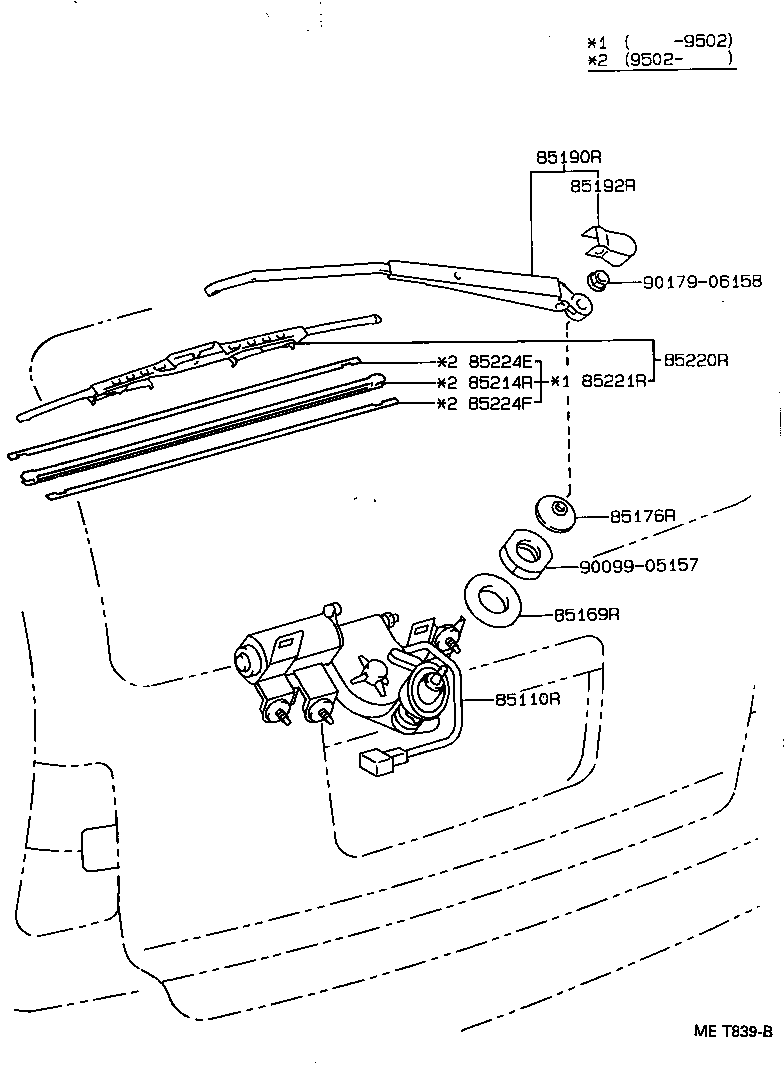

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85110R - MOTOR ASSY, REAR WIPER | ||||
| 85130-13070 |
AE10#,CE100,EE10#..WG |
1 | ||
| 85169R - WASHER, REAR WIPER LINK PIVOT, NO.1 | ||||
| 85134-13060 |
AE10#,CE100,EE10#..WG |
1 | ||
| 85176R - CAP, REAR WIPER LINK | ||||
| 85176-13070 |
AE10#,CE100,EE10#..WG |
1 | ||
| 85190R - ARM ASSY, REAR WIPER | ||||
| 85241-13030 |
AE10#,CE100,EE10#..WG |
1 | ||
| 85241-13010 |
AE101,CE100,EE10#..WG |
1 | ||
| 85192R - COVER, REAR WIPER ARM | ||||
| 85245-13030 |
AE10#,CE100,EE10#..WG |
1 | ||
| 85214R - RUBBER, REAR WIPER | ||||
| 85214-20340 |
AE10#,CE100,EE10#..WG |
1 | ||
| 85220R - BLADE ASSY, REAR WIPER | ||||
| 85242-13010 |
AE101,CE100,EE10#..WG |
1 | ||
| 85242-13030 |
AE10#,CE100,EE10#..WG |
1 | ||
| 85221R - BLADE, REAR WIPER | ||||
| 85243-13010 |
AE101,CE100,EE10#..WG |
1 | ||
| 85224E - PLATE, REAR WIPER RUBBER BACKING, NO.1 | ||||
| 85224-28100 |
AE10#,CE100,EE10#..WG |
1 | ||
| 85224F - PLATE, REAR WIPER RUBBER BACKING, NO.2 | ||||
| 85224-28100 |
AE10#,CE100,EE10#..WG |
1 | ||
| Common parts | ||||
| 90099-05157 | ||||
| 90179-06158 | ||||
