AE101L-AEPNKW (1992)
Toyota Corolla Sed/Wg
ILLUST NO. 3 OF 3(9205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14044 | ||||
| 90099-14045 | ||||
| 90099-14046 | ||||
| 90099-14056 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||

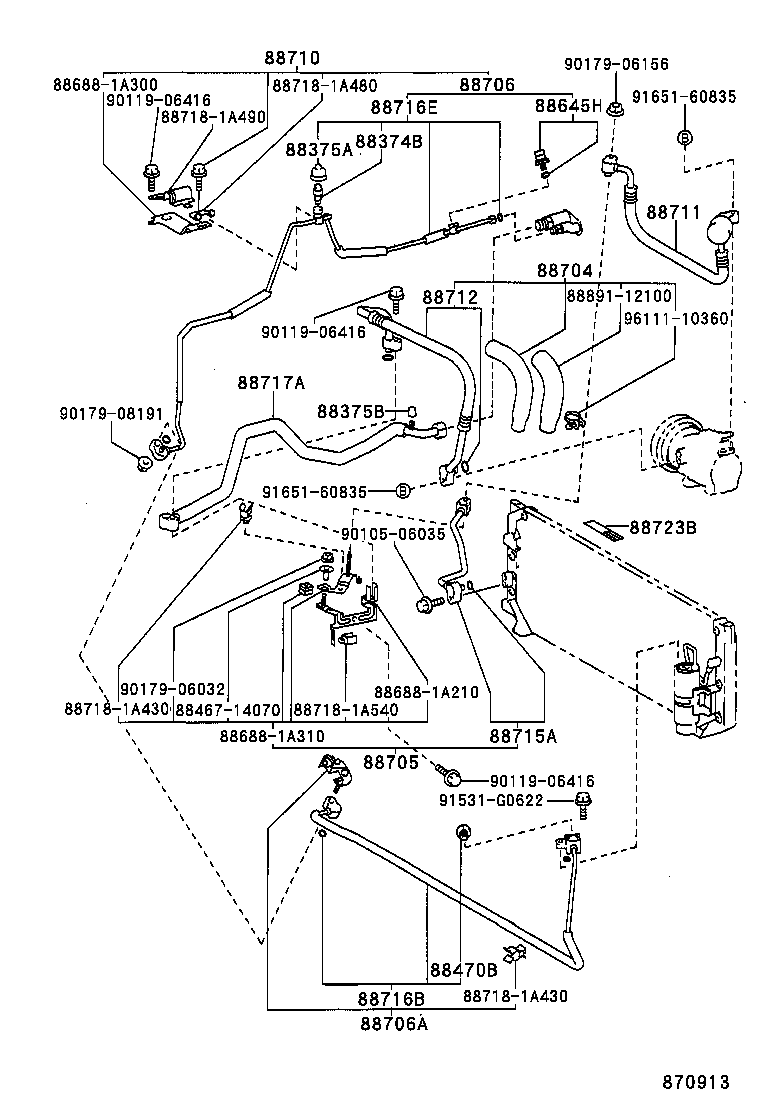

ILLUST NO. 2 OF 3(9205- )AE10#..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 48094-10010 |
AE101,CE100,EE10# |
1 | ||
| 88374-30010 |
CE100,EE101;AE10#,EE100..LHD |
1 | ||
| 88374-30010 |
AE10#,CE100,EE10# |
1 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
CE100,EE101;AE10#,EE100..LHD |
1 | ||
| 88375-24010 |
AE101,CE100,EE10# |
1 | ||
| 88375-30280 |
AE10#,CE100,EE10# |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
CE100,EE101;AE10#,EE100..LHD |
1 | ||
| 88375-30290 |
AE10#,CE100,EE10# |
1 | ||
| 88375-30270 |
AE101,CE100,EE10# |
1 | ||
| 88470B - BOLT, FUSE | ||||
| 88475-12020 |
CE100..LHD;AE101,EE10# |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-50010 |
AE101,CE100,EE10# |
1 | ||
| 88645-20050 |
AE10#,CE100,EE10# |
1 | ||
| 88645-20050 |
CE100,EE101;AE10#,EE100..LHD |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-12420 |
AE101..LHD |
1 | ||
| 88704-12510 |
AE10#..LHD |
1 | ||
| 88705 - PIPE SUB-ASSY, DISCHARGE | ||||
| 88705-12080 |
AE101..LHD |
1 | ||
| 88705-12040 |
AE101..LHD |
1 | ||
| 88706 - PIPE SUB-ASSY, LIQUID | ||||
| 88706-12120 |
AE101..LHD MAKER OPTION |
1 | ||
| 88706-12280 |
AE10#..LHD |
1 | ||
| 88706-12200 |
AE101..LHD DEALER OPTION |
1 | ||
| 88706-12240 |
AE101..LHD W(ABS),DEALER OPTION |
1 | ||
| 88706A - TUBE SUB-ASSY, LIQUID, A | ||||
| 88706-12170 |
AE101,EE10#..LHD |
1 | ||
| 88706-12290 |
AE101,EE10#..LHD |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-12300 |
AE101..LHD |
1 | ||
| 88710-12430 |
AE101..LHD |
1 | ||
| 88710-12260 |
AE101..LHD |
1 | ||
| 88710-12400 |
AE101..LHD |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-12810 |
AE101..LHD MAKER OPTION |
1 | ||
| 88711-12701 |
AE101..LHD DEALER OPTION |
1 | ||
| 88711-1A150 |
AE101..LHD MAKER OPTION |
1 | ||
| 88711-1A160 |
AE101..LHD DEALER OPTION |
1 | ||
| 88711-12870 |
AE101..LHD MAKER OPTION |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-1A170 |
AE10#..LHD |
1 | ||
| 88712-1A030 |
AE101..LHD |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-12420 |
AE101..LHD |
1 | ||
| 88715-12460 |
AE101..LHD |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-1A060 |
AE101,EE10#..LHD |
1 | ||
| 88716-1A220 |
AE10#,EE10#..LHD |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-1A160 |
AE101..LHD W(ABS),DEALER OPTION |
1 | ||
| 88716-1A070 |
AE101..LHD MAKER OPTION |
1 | ||
| 88716-1A100 |
AE101..LHD DEALER OPTION |
1 | ||
| 88716-1A270 |
AE10#..LHD DEALER OPTION |
1 | ||
| 88716-1A210 |
AE101..LHD |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-12570 |
AE101..LHD MAKER OPTION OR W(ABS) & DEALER OPTION |
1 | ||
| 88717-12640 |
AE101..LHD DEALER OPTION |
1 | ||
| 88717-12720 |
AE101..LHD MAKER OPTION OR W(ABS) & DEALER OPTION |
1 | ||
| 88717-12800 |
AE10#..LHD DEALER OPTION |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-12060 |
AE101,CE100,EE101..LHD ENGLISH |
1 | ||
| 88723-33020 |
AE101,CE100,EE101..LHD GERMAN |
1 | ||
| 88723-12120 |
CE100,EE101;AE10#,EE100..LHD |
1 | ||
| 88723-12100 |
AE101,CE100,EE101..LHD MAKER OPTION |
1 | ||
| 88723-12120 |
AE10#,CE100,EE10# |
1 | ||
| Common parts | ||||
| 88467-14070 | ||||
| 88688-1A210 | ||||
| 88688-1A300 | ||||
| 88688-1A310 | ||||
| 88718-1A430 | ||||
| 88718-1A480 | ||||
| 88718-1A490 | ||||
| 88718-1A540 | ||||
| 88891-12100 | ||||
| 90105-06035 | ||||
| 90119-06416 | ||||
| 90179-06032 | ||||
| 90179-06156 | ||||
| 90179-08191 | ||||
| 91531-G0622 | ||||
| 91651-60835 | ||||
| 96111-10360 | ||||

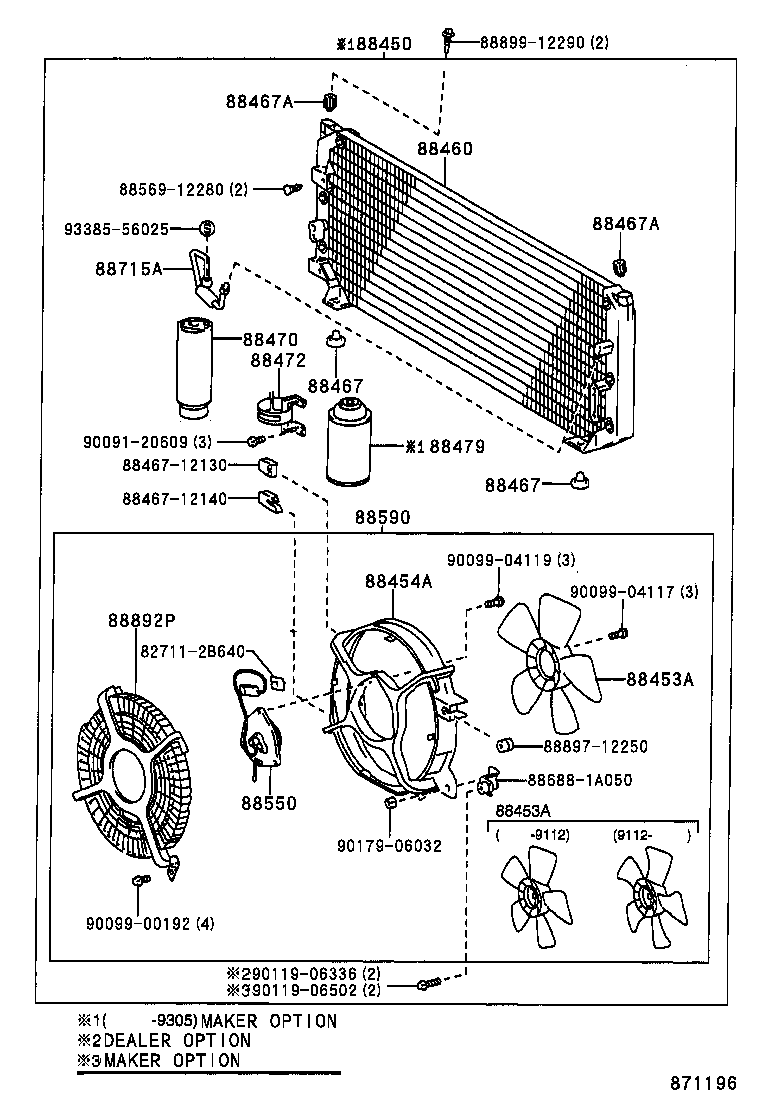

ILLUST NO. 1 OF 3(9205-9312)AE101,EE10#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88450 - CONDENSER ASSY, W/RECEIVER | ||||
| 88450-12110 |
AE101,EE10#..LHD |
1 | ||
| 88453A - FAN, COOLING | ||||
| 88453-12080 |
AE101,EE101 |
1 | ||
| 88453-10021 |
AE10#;EE101..RHD |
1 | ||
| 88453-10021 |
AE10#,EE101 |
1 | ||
| 88453-10022 |
AE101,EE10#..LHD MAKER OPTION |
1 | ||
| 88453-10021 |
AE101,EE101..LHD DEALER OPTION |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-12130 |
AE101,EE101 |
1 | ||
| 88454-12150 |
AE10#,EE101 |
1 | ||
| 88454-12150 |
EE101;AE10#..LHD |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-12410 |
AE101,EE101 |
1 | ||
| 88460-12440 |
AE10#,EE101 |
1 | ||
| 88460-12440 |
EE101;AE10#..LHD |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12100 |
AE10#,CE100,EE10# |
2 | ||
| 88467-12100 |
CE100,EE101;AE10#,EE100..LHD |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12100 |
CE100,EE101;AE10#,EE100..LHD |
2 | ||
| 88467-12100 |
AE10#,CE100,EE10# |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-12110 |
CE100,EE101;AE10#,EE100..LHD |
2 | ||
| 88467-12110 |
AE10#,CE100,EE10# |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-12110 |
CE100,EE101;AE10#,EE100..LHD |
2 | ||
| 88467-12110 |
AE10#,CE100,EE10# |
2 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88471-60010 |
AE10#,CE100,EE101 |
1 | ||
| 88471-60010 |
AE10#..LHD;CE100,EE101 |
1 | ||
| 88471-12020 |
AE101,CE100,EE101 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88473-12080 |
AE10#,CE100,EE10# |
1 | ||
| 88473-12080 |
CE100,EE101;AE10#,EE100..LHD |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02008 |
AE101,CE100,EE101 200G |
3 | ||
| 90986-02004 |
AE101,CE100,EE101 250G |
3 | ||
| 90986-02008 |
AE101,CE100,EE101..LHD 200G |
3 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-12150 |
AE101,EE101 |
1 | ||
| 88550-12130 |
AE101,CE100,EE101 |
1 | ||
| 88550-12160 |
AE10#,EE101 |
1 | ||
| 88550-12160 |
EE101;AE10#..LHD |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-12270 |
AE10#,EE101 |
1 | ||
| 88590-12210 |
AE101,EE101 |
1 | ||
| 88590-12270 |
EE101;AE10#..LHD |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-12420 |
AE101..LHD |
1 | ||
| 88715-12460 |
AE101..LHD |
1 | ||
| 88892P - NET, FAN SHROUD | ||||
| 88892-12200 |
AE101,EE10# |
1 | ||
| Common parts | ||||
| 82711-2B640 | ||||
| 88467-12130 | ||||
| 88467-12140 | ||||
| 88569-12280 | ||||
| 88688-1A050 | ||||
| 88897-12250 | ||||
| 88899-12290 | ||||
| 90091-20609 | ||||
| 90099-00192 | ||||
| 90099-04117 | ||||
| 90099-04119 | ||||
| 90119-06336 | ||||
| 90119-06502 | ||||
| 90179-06032 | ||||
| 93385-56025 | ||||
ILLUST NO. 1 OF 3(9312- )AE10#,EE10#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453A - FAN, COOLING | ||||
| 88453-12080 |
AE101,EE101 |
1 | ||
| 88453-10021 |
AE10#;EE101..RHD |
1 | ||
| 88453-10021 |
AE10#,EE101 |
1 | ||
| 88453-10022 |
AE101,EE10#..LHD MAKER OPTION |
1 | ||
| 88453-10021 |
AE101,EE101..LHD DEALER OPTION |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-12130 |
AE101,EE101 |
1 | ||
| 88454-12150 |
AE10#,EE101 |
1 | ||
| 88454-12150 |
EE101;AE10#..LHD |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-12410 |
AE101,EE101 |
1 | ||
| 88460-12440 |
AE10#,EE101 |
1 | ||
| 88460-12440 |
EE101;AE10#..LHD |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12100 |
CE100,EE101;AE10#,EE100..LHD |
2 | ||
| 88467-12100 |
AE10#,CE100,EE10# |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12100 |
CE100,EE101;AE10#,EE100..LHD |
2 | ||
| 88467-12100 |
AE10#,CE100,EE10# |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-12110 |
CE100,EE101;AE10#,EE100..LHD |
2 | ||
| 88467-12110 |
AE10#,CE100,EE10# |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-12110 |
CE100,EE101;AE10#,EE100..LHD |
2 | ||
| 88467-12110 |
AE10#,CE100,EE10# |
2 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88471-60010 |
AE10#,CE100,EE101 |
1 | ||
| 88471-60010 |
AE10#..LHD;CE100,EE101 |
1 | ||
| 88471-12020 |
AE101,CE100,EE101 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88473-12080 |
AE10#,CE100,EE10# |
1 | ||
| 88473-12080 |
CE100,EE101;AE10#,EE100..LHD |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02008 |
AE101,CE100,EE101 200G |
3 | ||
| 90986-02004 |
AE101,CE100,EE101 250G |
3 | ||
| 90986-02008 |
AE101,CE100,EE101..LHD 200G |
3 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-12150 |
AE101,EE101 |
1 | ||
| 88550-12130 |
AE101,CE100,EE101 |
1 | ||
| 88550-12160 |
AE10#,EE101 |
1 | ||
| 88550-12160 |
EE101;AE10#..LHD |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-12270 |
AE10#,EE101 |
1 | ||
| 88590-12210 |
AE101,EE101 |
1 | ||
| 88590-12270 |
EE101;AE10#..LHD |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88726-12360 |
AE101,CE100,EE101 |
1 | ||
| 88726-12410 |
AE10#,CE100,EE101 |
1 | ||
| 88726-12410 |
AE10#..LHD;CE100,EE101 |
1 | ||
| Common parts | ||||
| 82711-2B640 | ||||
| 88569-12280 | ||||
| 88897-12250 | ||||
| 88899-12290 | ||||
| 90091-20609 | ||||
| 90099-04117 | ||||
| 90099-04119 | ||||
| 90119-06336 | ||||
| 90119-06502 | ||||
| 93385-56025 | ||||
