AE101L-AEPNKW (1992)

Toyota Corolla Sed/Wg

Production May 1992 - Apr 1997
Engine 4AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(9205- )

Click highlighted areas on diagram

diagram 5501 86120 86120A 86211 86211 86212 86212 9014950032 9014950032 9014950032 9014950032 9015350010 9015350010 9356855012 9356855012
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-12520

AE10#,CE100,EE10#

 1
86120-12810

AE101,CE100,EE10#..GLI,XL,XLI

LW/MW/UKW MULTIPLEX ETR CASSETTE 4SPEAKER

 1
86120-12790

AE101,CE100,EE10#

AM/FM CASSETTE

 1
86120-1A080

AE10#,CE100,EE10#..GLI,XL,XLI

LW/MW/UKW MULTIPLEX ETR CASSETTE 4SPEAKER

 1
86120-1A060

AE10#,CE100,EE10#

AM/FM CASSETTE

 1
86120A - KNOB, RADIO RECEIVER SWITCH
86128-17490

AE10#,CE100,EE10#

 2
86211 - BRACKET, RADIO, NO.1
86211-12250

AE10#,CE100,EE10#

LOWER

 1
86211-12320

AE10#,CE100,EE10#..LHD

UPPER

 1
86211 - BRACKET, RADIO, NO.1
86211-12250

AE10#,CE100,EE10#

LOWER

 1
86211-12320

AE10#,CE100,EE10#..LHD

UPPER

 1
86212 - BRACKET, RADIO, NO.2
86212-12310

AE10#,CE100,EE10#..LHD

UPPER

 1
86212-12230

AE10#,CE100,EE10#

LOWER

 1
86212 - BRACKET, RADIO, NO.2
86212-12310

AE10#,CE100,EE10#..LHD

UPPER

 1
86212-12230

AE10#,CE100,EE10#

LOWER

 1
Common parts
90149-50032
90153-50010
93568-55012
Linked diagrams
5501

ILLUST NO. 3 OF 3(9205- )

Click highlighted areas on diagram

diagram 8612817490 8612817490 8612817490 8612817490 8612817490
Part # Description Qty Price
Common parts
86128-17490

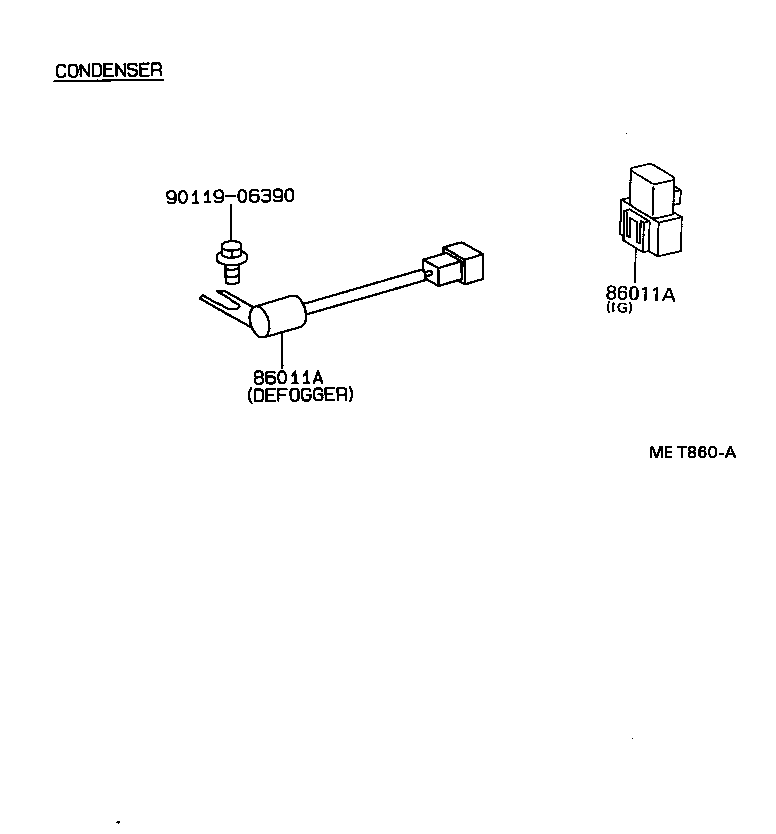

ILLUST NO. 2 OF 3(9205- )

Click highlighted areas on diagram

diagram 86011A 86011A 9011906390
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04105

AE101,CE100,EE10#..LHD

DEFOGGER

 1
86011A - CONDENSER, RADIO SETTING
90980-04105

AE101,CE100,EE10#..LHD

DEFOGGER

 1
Common parts
90119-06390
