AE101L-AEPNKW (1992)

Toyota Corolla Sed/Wg

Production May 1992 - Apr 1997
Engine 4AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9205- )4AFE,7AFE

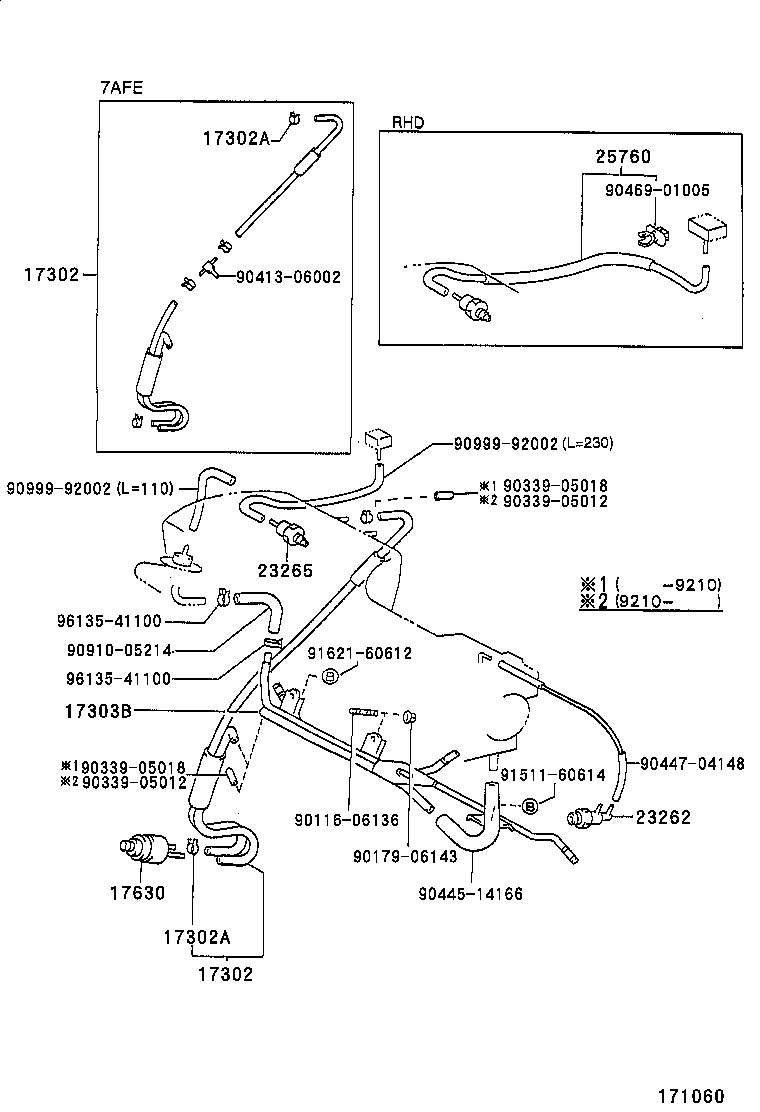

Click highlighted areas on diagram

diagram
Part # Description Qty Price

(9205- )4AFE,7AFE

Click highlighted areas on diagram

diagram 17302 17302 17302A 17302A 17303B 17630 23262 23265 25760 9011606136 9017906143 9033905012 9033905012 9033905018 9033905018 9041306002 9044514166 9044704148 9046901005 9091005214 9099992002 9099992002 9151160614 9162160612 9613541100 9613541100
Part # Description Qty Price
17302 - HOSE SUB-ASSY, AIR
17302-15010

4AFE..AE101

 1
17302 - HOSE SUB-ASSY, AIR
17302-15010

4AFE..AE101

 1
17302A - CLIP, HOSE
96132-51100

4AFE..AE101

 1
96132-51000

4AFE..AE101

 1
96132-51000

4AFE..AE101

W(POWER STEERING)

 2
96132-51000

4AFE..AE101..LHD

W(POWER STEERING)

 2
96132-51000

4AFE..AE101..LHD

 1
17302A - CLIP, HOSE
96132-51100

4AFE..AE101

 1
96132-51000

4AFE..AE101

 1
96132-51000

4AFE..AE101

W(POWER STEERING)

 2
96132-51000

4AFE..AE101..LHD

W(POWER STEERING)

 2
96132-51000

4AFE..AE101..LHD

 1
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-15060

4AFE..AE101

 1
17630 - VALVE ASSY, AIR CONTROL
17630-15080

4AFE,7AFE..AE10#

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05068

4AFE,7AFE..AE10#

 1
23265 - FILTER, GAS, NO.1
90917-11022

4AFE,7AFE..AE10#

 1
Common parts
90116-06136
90179-06143
90339-05012
90339-05018
90413-06002
90445-14166
90447-04148
90469-01005
90910-05214
90999-92002
91511-60614
91621-60612
96135-41100
