AE101L-AEPDKW (1992)
Toyota Corolla Sed/Wg

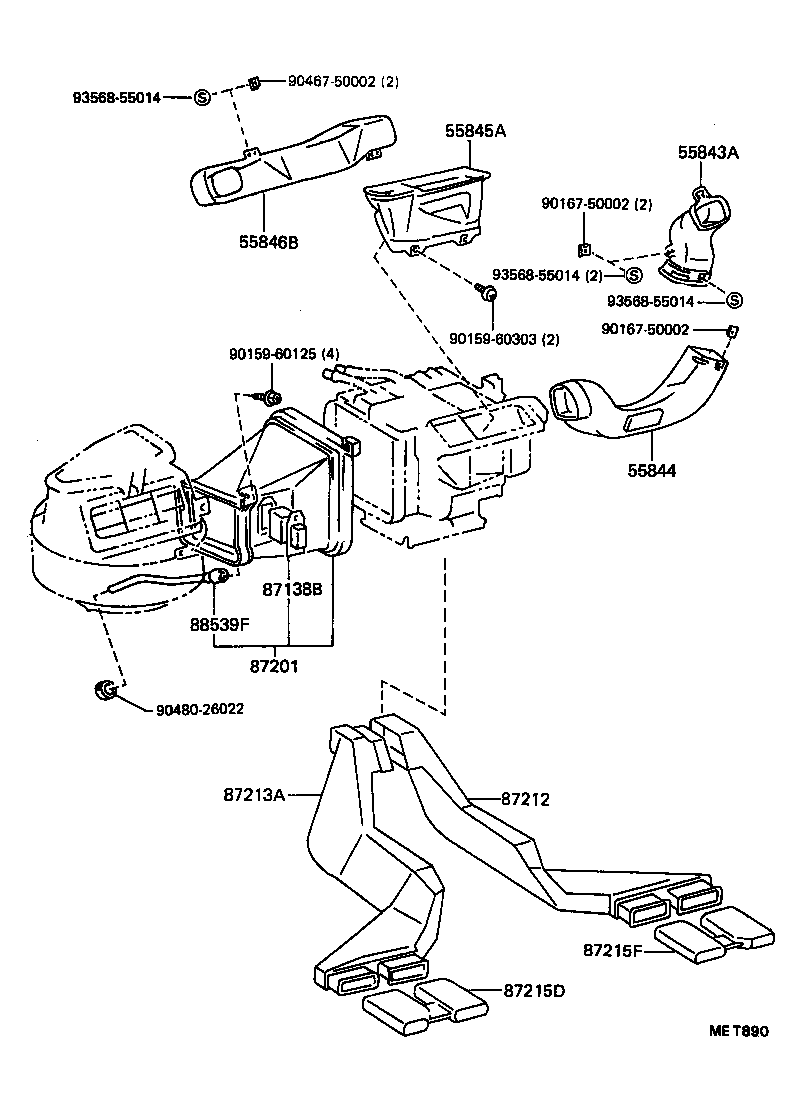

ILLUST NO. 2 OF 2(9205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-12230 |
AE10#,CE100,EE10#..LHD |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-12360 |
AE101,CE100,EE101..LHD W(AIR CONDITIONER) OR W/O(AIR CONDITIONER) |
1 | ||
| 55844-12380 |
AE101,CE100,EE101..LHD W(AIR CONDITIONER) OR W/O(AIR CONDITIONER) |
1 | ||
| 55844-12350 |
AE10#,CE100,EE10#..LHD |
1 | ||
| 55844-12380 |
AE101,CE100,EE10#..LHD W(AIR CONDITIONER) |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-12170 |
AE101,CE100,EE10#..LHD |
1 | ||
| 55845-12180 |
AE101,CE100,EE101..LHD W(*80,DRIVER SIDE & PASSENGER SIDE) |
1 | ||
| 55846B - DUCT, HEATER TO REGISTER, NO.4 | ||||
| 55846-12180 |
AE101,CE100,EE10#..LHD |
1 | ||
| 55846-12210 |
AE101,CE100,EE101..LHD W(*80,DRIVER SIDE & PASSENGER SIDE) & W(AIR CONDITIONER) |
1 | ||
| 55846-12200 |
AE101,CE100,EE101..LHD W(*80,DRIVER SIDE & PASSENGER SIDE) |
1 | ||
| 55846-12190 |
AE101,CE100,EE10#..LHD W(AIR CONDITIONER) |
1 | ||
| 87138B - RESISTOR, HEATER BLOWER | ||||
| 87138-02010 |
AE10#,CE100,EE10#..LHD NUMMI |
1 | ||
| 87138-12140 |
AE10#,CE100,EE10#..LHD DENSO |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87201-12420 |
AE10#,CE100,EE10#..LHD DENSO |
1 | ||
| 87201-02040 |
AE10#,CE100,EE10#..LHD NUMMI |
1 | ||
| 87201-02050 |
AE10#,CE100,EE10#..LHD COLD SPEC,NUMMI |
1 | ||
| 87201-12430 |
AE10#,CE100,EE10#..LHD COLD SPEC,DENSO |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-12080 |
AE101,CE100,EE10#..LHD |
1 | ||
| 87213A - DUCT, AIR REAR NO.2 | ||||
| 87213-12050 |
AE101,CE100,EE10#..LHD |
1 | ||
| 87215D - DUCT, AIR, REAR NO.4 | ||||
| 87216-12010 |
AE10#,CE100,EE10#..LHD |
1 | ||
| 87215F - DUCT, AIR, REAR NO.3 | ||||
| 87215-12020 |
AE101,CE100,EE10#..LHD |
1 | ||
| 88539F - HOSE, DRAIN | ||||
| 88539-02010 |
AE10#,CE100,EE10#..LHD |
1 | ||
| 88539-12110 |
AE10#,CE100,EE10#..LHD COLD SPEC |
1 | ||
| Common parts | ||||
| 90159-60125 | ||||
| 90159-60303 | ||||
| 90167-50002 | ||||
| 90467-50002 | ||||
| 90480-26022 | ||||
| 93568-55014 | ||||

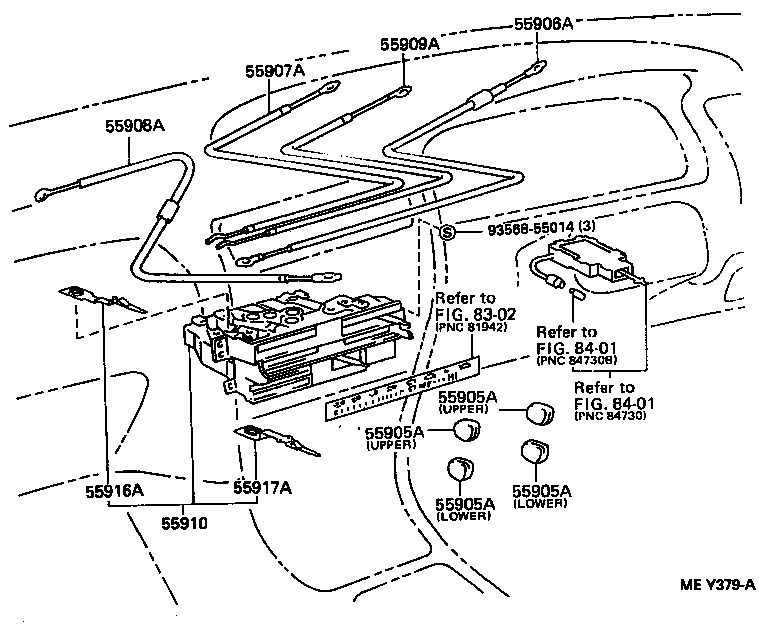

ILLUST NO. 1 OF 2(9205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12150 |
AE10#,CE100,EE10# LOWER |
2 | ||
| 55905-12140 |
AE10#,CE100,EE10# UPPER |
2 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12150 |
AE10#,CE100,EE10# LOWER |
2 | ||
| 55905-12140 |
AE10#,CE100,EE10# UPPER |
2 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12150 |
AE10#,CE100,EE10# LOWER |
2 | ||
| 55905-12140 |
AE10#,CE100,EE10# UPPER |
2 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12150 |
AE10#,CE100,EE10# LOWER |
2 | ||
| 55905-12140 |
AE10#,CE100,EE10# UPPER |
2 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-12330 |
AE101,CE100,EE10# |
1 | ||
| 55906-12330 |
AE10#,CE100,EE10#..LHD |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-12401 |
AE10#,CE100,EE10#..LHD |
1 | ||
| 55907-12400 |
AE101,CE100,EE10#..LHD |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-12260 |
AE101,CE100,EE10# |
1 | ||
| 55908-12260 |
AE10#,CE100,EE10#..LHD |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-12270 |
AE10#,CE100,EE10# |
1 | ||
| 55909-12240 |
AE101,CE100,EE10# |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-12571 |
AE10#,CE100,EE10#..LHD |
1 | ||
| 55910-12570 |
AE101,CE100,EE10#..LHD |
1 | ||
| 55917A - LEVER, TEMPERATURE DAMPER CONTROL | ||||
| 55917-12130 |
AE10#,CE100,EE10#..LHD |
1 | ||
| Common parts | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8401 | ||||
