AE101L-AEPDKW (1992)

Toyota Corolla Sed/Wg

Production May 1992 - Apr 1997
Engine 4AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9205- )SED

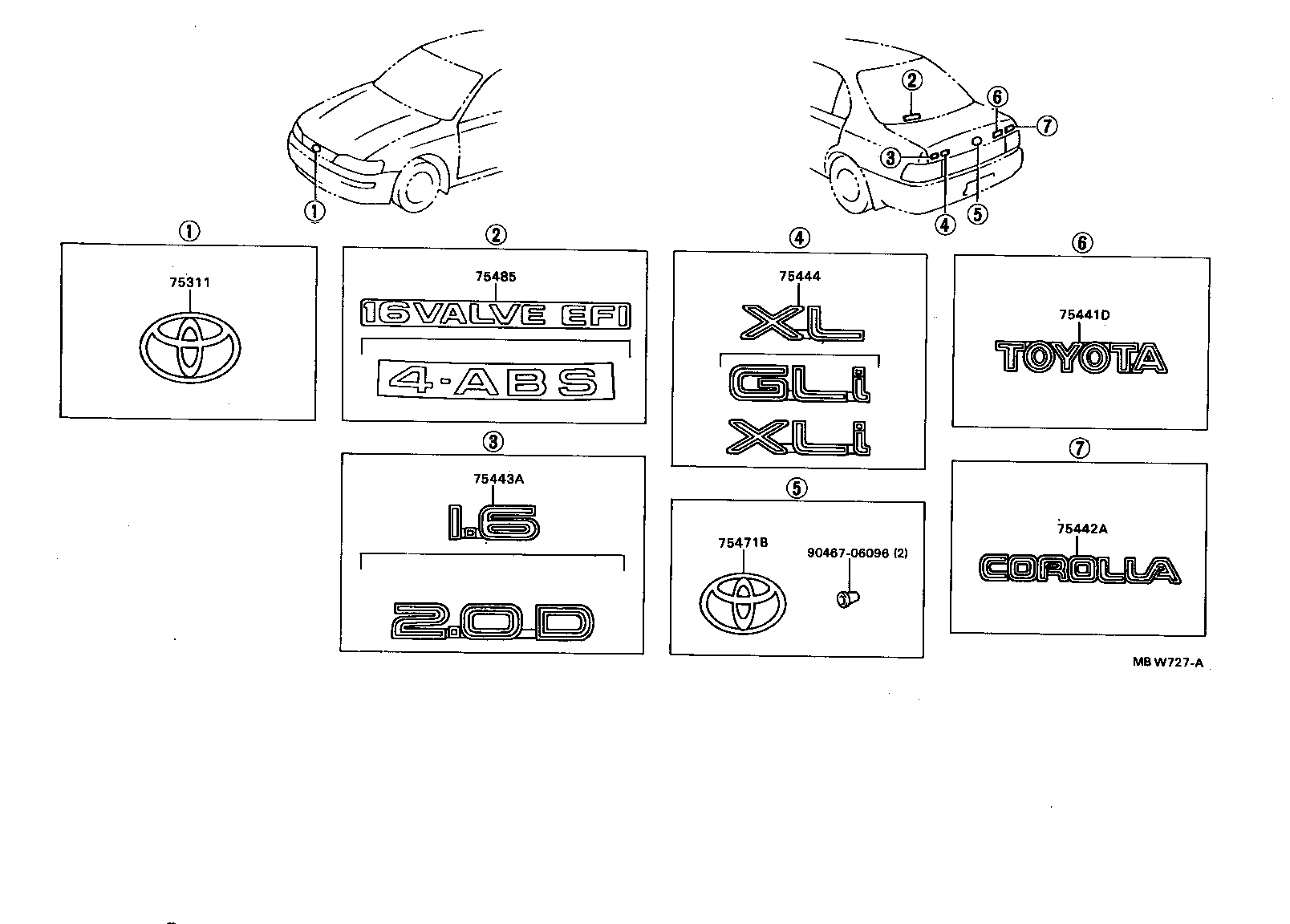

Click highlighted areas on diagram

diagram 75311 75441D 75442A 75443A 75444 75471B 75485 9046706096
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-1A740

AE10#,CE100,EE10#

 1
75441D - PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1
75441-12650

AE10#,CE100,EE10#

TOYOTA

 1
75442A - PLATE, BACK DOOR NAME, NO.2
75442-1A180

AE10#,CE100,EE10#

COROLLA

 1
75443A - PLATE, LUGGAGE COMPARTMENT DOOR, NO.3
75443-1A590

AE101..SED

1.6

 1
75444 - PLATE, LUGGAGE COMPARTMENT DOOR, NO.4
75444-1A140

AE10#,EE101..XLI

XLI

 1
75471B - PLATE, REAR BODY NAME, NO.1
75471-12020

AE101,CE100,EE10#..SED

 1
75485 - PLATE, BACK WINDOW NAME
75485-12210

AE101..SED;EE101..LHD..GLI;EE101..SED..(STD,XLI)

4-ABS,W(*66)

 1
75485-12310

AE101..SED;EE101..LHD..GLI;EE101..SED..(STD,XLI)

16 VALVE EFI

 1
75485-12260

AE101..SED;EE101..LHD..GLI;EE101..SED..(STD,XLI)

16 VALVE EF1

 1
Common parts
90467-06096
