EE80R-ELHDS (1984)

Toyota Corolla Sed/Lb

Production Oct 1984 - Apr 1987
Engine 2EL
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )2EL#

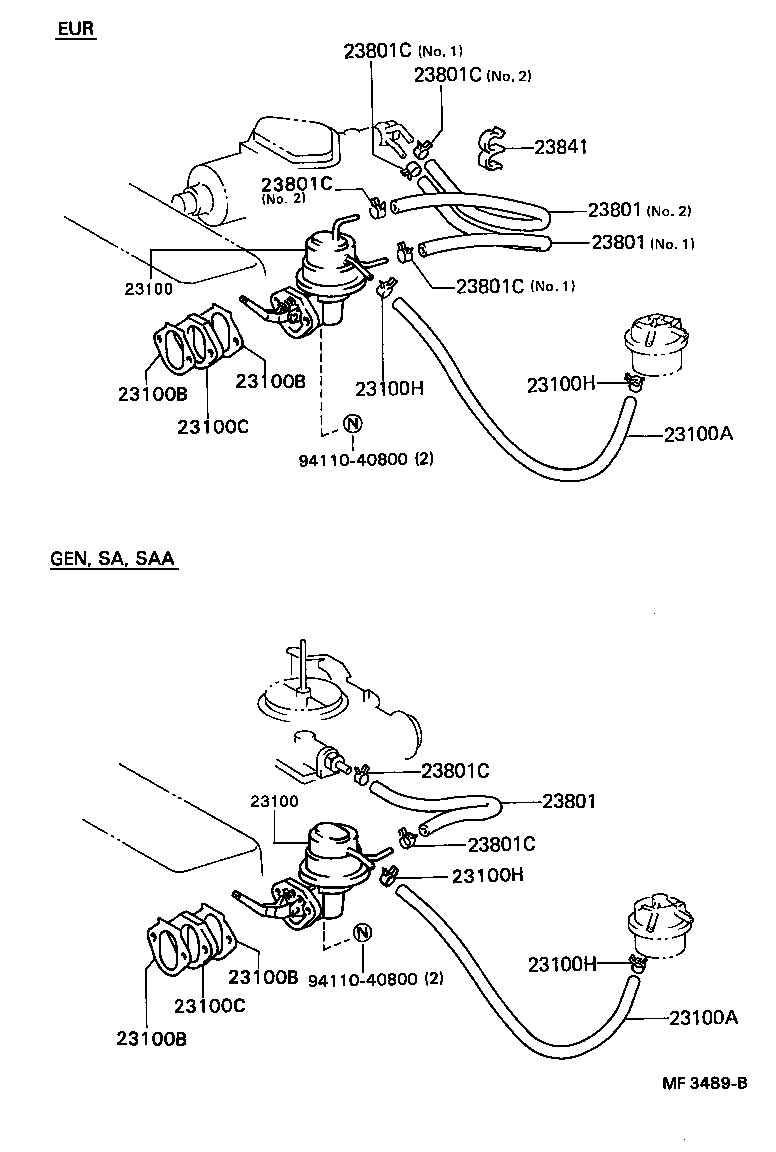

Click highlighted areas on diagram

diagram 23100 23100 23100A 23100A 23100B 23100B 23100B 23100B 23100C 23100C 23100H 23100H 23100H 23100H 23801 23801 23801 23801C 23801C 23801C 23801C 23801C 23801C 23841 9411040800 9411040800
Part # Description Qty Price
23100A - HOSE, FUEL
95332-06040

2EL#..EE80

*H,L=360

 1
95333-06036

2EL#..EE80

*H,L=360

 1
23100A - HOSE, FUEL
95332-06040

2EL#..EE80

*H,L=360

 1
95333-06036

2EL#..EE80

*H,L=360

 1
23100H - CLIP(FOR FUEL HOSE)
96132-30600

2EL#..EE80

 2
23100H - CLIP(FOR FUEL HOSE)
96132-30600

2EL#..EE80

 2
23100H - CLIP(FOR FUEL HOSE)
96132-30600

2EL#..EE80

 2
23100H - CLIP(FOR FUEL HOSE)
96132-30600

2EL#..EE80

 2
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
95332-06010

2EL..EE80..GEN,SA,SAA

*H,L=100

 1
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
95332-06010

2EL..EE80..GEN,SA,SAA

*H,L=100

 1
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
95332-06010

2EL..EE80..GEN,SA,SAA

*H,L=100

 1
Common parts
94110-40800
