EE80R-ELHDS (1984)

Toyota Corolla Sed/Lb

Production Oct 1984 - Apr 1987
Engine 2EL
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8305-8511)4ALC..ARL ; (8305-8511)4ALC..SDZ ; (8305-8511)2AL#,4AL,1CL ; (8511- )

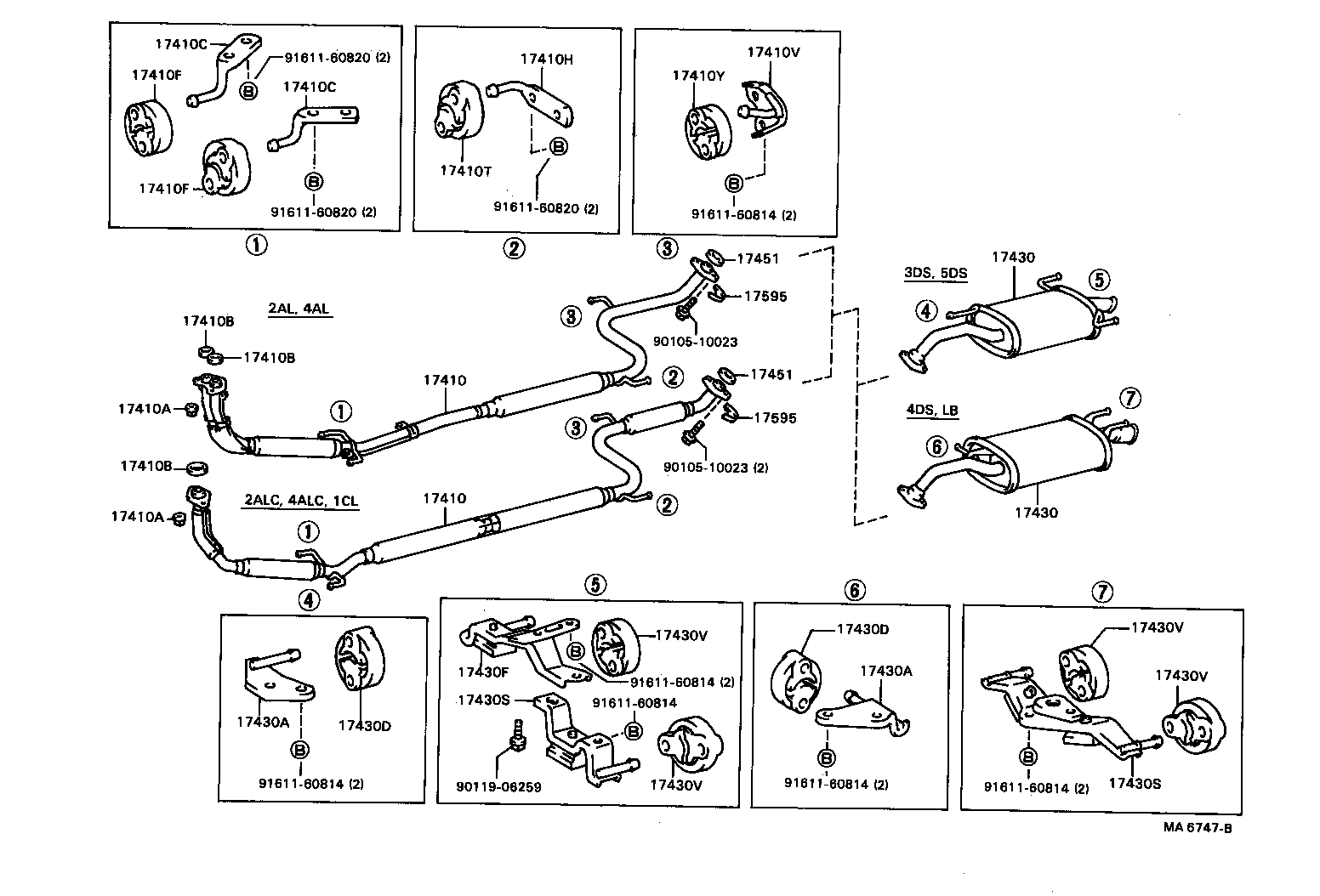

Click highlighted areas on diagram

diagram 17410 17410 17410A 17410A 17410B 17410B 17410B 17410C 17410C 17410F 17410F 17410H 17410T 17410V 17410Y 17430 17430 17430A 17430A 17430D 17430D 17430F 17430S 17430S 17430V 17430V 17430V 17430V 17451 17451 17595 17595 9010510023 9010510023 9011906259 9161160814 9161160814 9161160814 9161160814 9161160814 9161160814 9161160820 9161160820 9161160820
Part # Description Qty Price
17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR)
17588-14010

4AGEL,2EL..AE82,EE80

RH

 1
17587-14010

4AGEL,2EL..AE82,EE80

LH

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17508-64020

2AL#,4AG#,4AL#,1CL,2EL#..AE8#,CE80,EE80..4DS,5D

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17508-64020

2AL#,4AG#,4AL#,1CL,2EL#..AE8#,CE80,EE80..4DS,5D

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17565-63030

2AL#,4AGEL,4AL#,1CL,2EL#..AE8#,CE80,EE80

 1
17565-63030

4ALC..AE82..ARL;4ALC..AE82..SDZ;2ALC,4AGEL,4AL,1CL,2EL#..AE8#,CE80,EE80

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17565-63030

2AL#,4AGEL,4AL#,1CL,2EL#..AE8#,CE80,EE80

 1
17565-63030

4ALC..AE82..ARL;4ALC..AE82..SDZ;2ALC,4AGEL,4AL,1CL,2EL#..AE8#,CE80,EE80

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17565-63030

2AL#,4AGEL,4AL#,1CL,2EL#..AE8#,CE80,EE80

 2
17565-63030

4ALC..AE82..ARL;4ALC..AE82..SDZ;2ALC,4AGEL,4AL,1CL,2EL#..AE8#,CE80,EE80

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17565-63030

2AL#,4AGEL,4AL#,1CL,2EL#..AE8#,CE80,EE80

 2
17565-63030

4ALC..AE82..ARL;4ALC..AE82..SDZ;2ALC,4AGEL,4AL,1CL,2EL#..AE8#,CE80,EE80

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17565-63030

2AL#,4AGEL,4AL#,1CL,2EL#..AE8#,CE80,EE80

 2
17565-63030

4ALC..AE82..ARL;4ALC..AE82..SDZ;2ALC,4AGEL,4AL,1CL,2EL#..AE8#,CE80,EE80

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17565-63030

2AL#,4AGEL,4AL#,1CL,2EL#..AE8#,CE80,EE80

 2
17565-63030

4ALC..AE82..ARL;4ALC..AE82..SDZ;2ALC,4AGEL,4AL,1CL,2EL#..AE8#,CE80,EE80

 2
17451 - GASKET, EXHAUST PIPE
90917-06004

4ALC..AE82..ARL;4ALC..AE82..SDZ;2AL#,4AL,1CL,2EL#..AE8#,CE80,EE80

 1
17451 - GASKET, EXHAUST PIPE
90917-06004

4ALC..AE82..ARL;4ALC..AE82..SDZ;2AL#,4AL,1CL,2EL#..AE8#,CE80,EE80

 1
17595 - PROTECTOR, EXHAUST PIPE, LOWER NO.3
17597-14010

2AL#,4AG#,4AL#,1CL,2EL#..AE8#,CE80,EE80

 1
17595 - PROTECTOR, EXHAUST PIPE, LOWER NO.3
17597-14010

2AL#,4AG#,4AL#,1CL,2EL#..AE8#,CE80,EE80

 1
Common parts
90105-10023
90119-06259
91611-60814
91611-60820

(8410- )4AGEL,2EL#

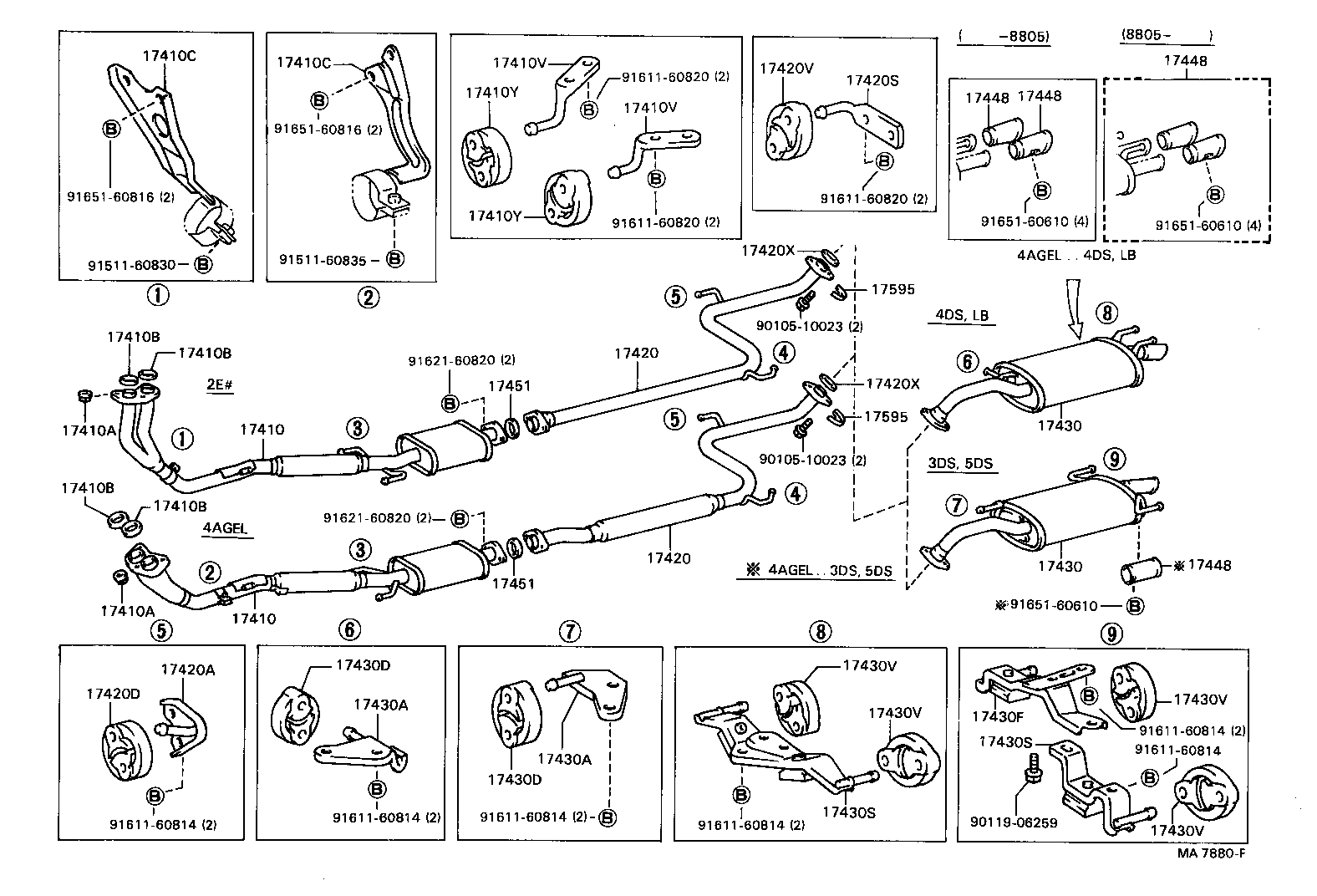

Click highlighted areas on diagram

diagram 17410 17410 17410A 17410A 17410B 17410B 17410B 17410B 17410C 17410C 17410V 17410V 17410Y 17410Y 17420 17420 17420A 17420D 17420S 17420V 17420X 17420X 17430 17430 17430A 17430A 17430D 17430D 17430F 17430S 17430S 17430V 17430V 17430V 17430V 17448 17448 17448 17448 17451 17451 17595 17595 9010510023 9010510023 9011906259 9151160830 9151160835 9161160814 9161160814 9161160814 9161160814 9161160814 9161160814 9161160820 9161160820 9161160820 9162160820 9162160820 9165160610 9165160610 9165160610 9165160816 9165160816
Part # Description Qty Price
17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR)
17588-14010

4AGEL,2EL..AE82,EE80

RH

 1
17587-14010

4AGEL,2EL..AE82,EE80

LH

 1
17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR)
17588-14010

4AGEL,2EL..AE82,EE80

RH

 1
17587-14010

4AGEL,2EL..AE82,EE80

LH

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17508-64020

2AL#,4AG#,4AL#,1CL,2EL#..AE8#,CE80,EE80..4DS,5D

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17508-64020

2AL#,4AG#,4AL#,1CL,2EL#..AE8#,CE80,EE80..4DS,5D

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17565-63030

2AL#,4AGEL,4AL#,1CL,2EL#..AE8#,CE80,EE80

 1
17565-63030

4ALC..AE82..ARL;4ALC..AE82..SDZ;2ALC,4AGEL,4AL,1CL,2EL#..AE8#,CE80,EE80

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17565-63030

2AL#,4AGEL,4AL#,1CL,2EL#..AE8#,CE80,EE80

 1
17565-63030

4ALC..AE82..ARL;4ALC..AE82..SDZ;2ALC,4AGEL,4AL,1CL,2EL#..AE8#,CE80,EE80

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17565-63030

2AL#,4AGEL,4AL#,1CL,2EL#..AE8#,CE80,EE80

 2
17565-63030

4ALC..AE82..ARL;4ALC..AE82..SDZ;2ALC,4AGEL,4AL,1CL,2EL#..AE8#,CE80,EE80

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17565-63030

2AL#,4AGEL,4AL#,1CL,2EL#..AE8#,CE80,EE80

 2
17565-63030

4ALC..AE82..ARL;4ALC..AE82..SDZ;2ALC,4AGEL,4AL,1CL,2EL#..AE8#,CE80,EE80

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17565-63030

2AL#,4AGEL,4AL#,1CL,2EL#..AE8#,CE80,EE80

 2
17565-63030

4ALC..AE82..ARL;4ALC..AE82..SDZ;2ALC,4AGEL,4AL,1CL,2EL#..AE8#,CE80,EE80

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17565-63030

2AL#,4AGEL,4AL#,1CL,2EL#..AE8#,CE80,EE80

 2
17565-63030

4ALC..AE82..ARL;4ALC..AE82..SDZ;2ALC,4AGEL,4AL,1CL,2EL#..AE8#,CE80,EE80

 2
17451 - GASKET, EXHAUST PIPE
90917-06004

4ALC..AE82..ARL;4ALC..AE82..SDZ;2AL#,4AL,1CL,2EL#..AE8#,CE80,EE80

 1
17451 - GASKET, EXHAUST PIPE
90917-06004

4ALC..AE82..ARL;4ALC..AE82..SDZ;2AL#,4AL,1CL,2EL#..AE8#,CE80,EE80

 1
17595 - PROTECTOR, EXHAUST PIPE, LOWER NO.3
17597-14010

2AL#,4AG#,4AL#,1CL,2EL#..AE8#,CE80,EE80

 1
17595 - PROTECTOR, EXHAUST PIPE, LOWER NO.3
17597-14010

2AL#,4AG#,4AL#,1CL,2EL#..AE8#,CE80,EE80

 1
Common parts
90105-10023
90119-06259
91511-60830
91511-60835
91611-60814
91611-60820
91621-60820
91651-60610
91651-60816
