EE80R-EHMNS (1984)

Toyota Corolla Sed/Lb

Production Oct 1984 - Apr 1987
Engine 2EL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )EE80

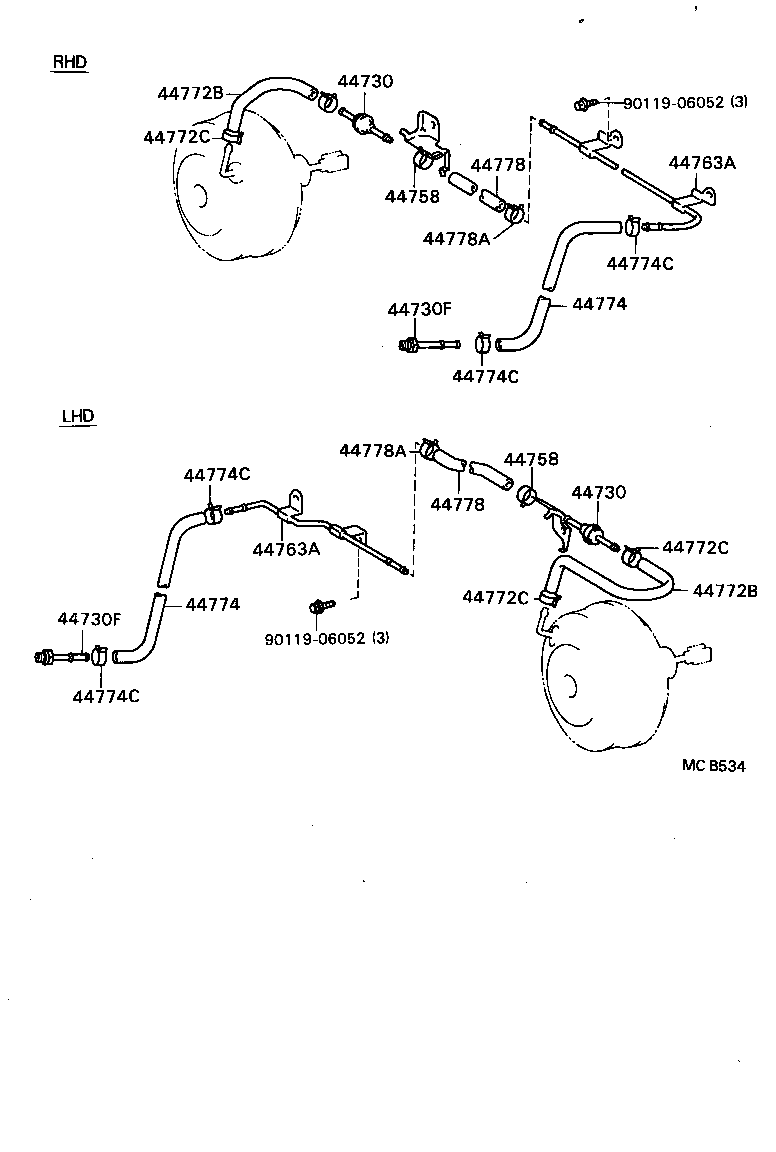

Click highlighted areas on diagram

diagram 44730 44730 44730F 44730F 44758 44758 44763A 44763A 44772B 44772B 44772C 44772C 44772C 44774 44774 44774C 44774C 44774C 44774C 44778 44778 44778A 44778A 9011906052 9011906052
Part # Description Qty Price
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-10010

AE8#,EE80

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-10010

AE8#,EE80

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-12210

AE8#,EE80..RHD..(CS,CSX,DX,GL,S,SE,STD,XL)

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-12210

AE8#,EE80..RHD..(CS,CSX,DX,GL,S,SE,STD,XL)

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-12010

AE8#,EE80..RHD..(CS,CSX,DX,GL,S,SE,STD,XL)

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-12010

AE8#,EE80..RHD..(CS,CSX,DX,GL,S,SE,STD,XL)

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-12190

AE8#,EE80..RHD..(CS,CSX,DX,GL,S,SE,STD,XL)

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-12190

AE8#,EE80..RHD..(CS,CSX,DX,GL,S,SE,STD,XL)

 1
44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
90467-16002

AE8#,EE80

 2
44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
90467-16002

AE8#,EE80

 2
44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
90467-16002

AE8#,EE80

 2
44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16002

AE8#,EE80..RHD..(CS,CSX,DX,GL,S,SE,STD,XL)

 2
44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16002

AE8#,EE80..RHD..(CS,CSX,DX,GL,S,SE,STD,XL)

 2
44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16002

AE8#,EE80..RHD..(CS,CSX,DX,GL,S,SE,STD,XL)

 2
44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16002

AE8#,EE80..RHD..(CS,CSX,DX,GL,S,SE,STD,XL)

 2
44778 - HOSE, CONNECTOR TO CHECK VALVE
95441-09140

AE8#,EE80..RHD..(CS,CSX,DX,GL,S,SE,STD,XL)

 1
44778 - HOSE, CONNECTOR TO CHECK VALVE
95441-09140

AE8#,EE80..RHD..(CS,CSX,DX,GL,S,SE,STD,XL)

 1
44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE)
90467-16002

AE8#,EE80..RHD..(CS,CSX,DX,GL,S,SE,STD,XL)

 1
44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE)
90467-16002

AE8#,EE80..RHD..(CS,CSX,DX,GL,S,SE,STD,XL)

 1
Common parts
90119-06052
