EE80R-EHHNS (1984)

Toyota Corolla Sed/Lb

Production Oct 1984 - Apr 1987
Engine 2EL
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )3DS,5DS

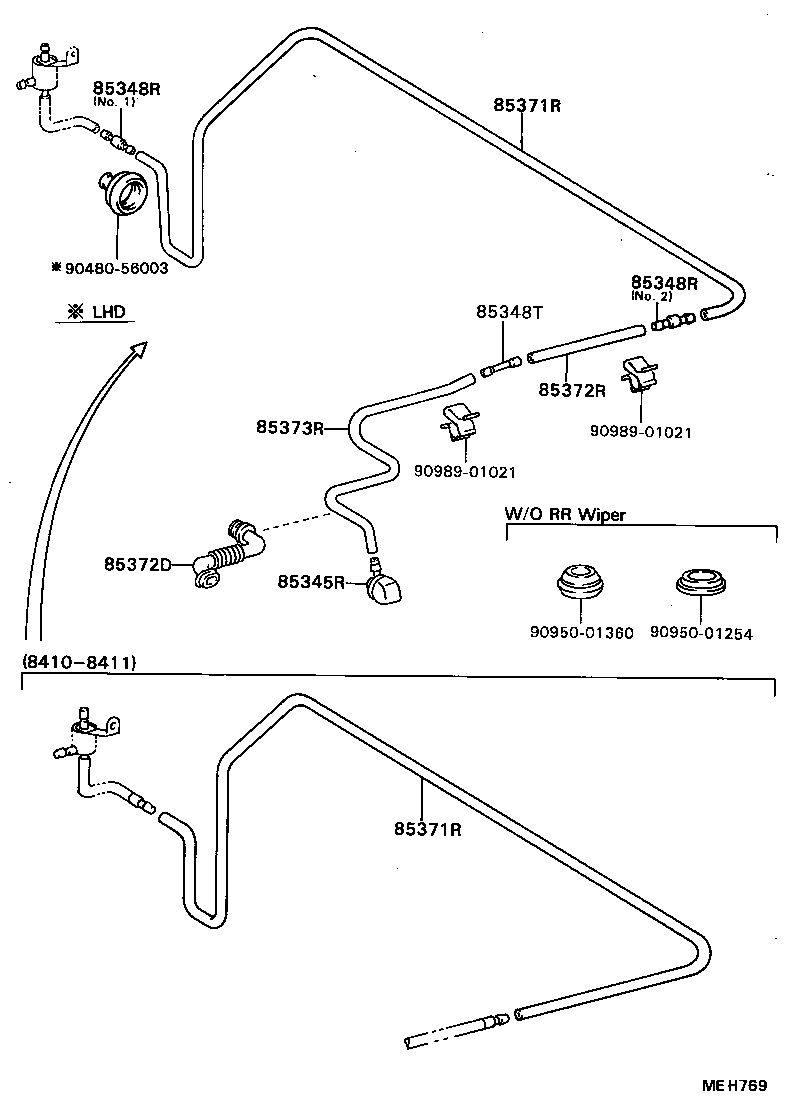

Click highlighted areas on diagram

diagram 85345R 85348R 85348R 85348T 85371R 85371R 85372D 85372R 85373R 9048056003 9095001254 9095001360 9098901021 9098901021
Part # Description Qty Price
85345R - NOZZLE, REAR WASHER
85035-12160

AE8#,CE80,EE80..(3DS,5D,5DS)..(EUR,GEN,SAA)

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-89122

AE8#,CE80,EE80..(3DS,5DS)..(EUR,GEN)

NO.1

 1
85349-89122

AE8#,CE80,EE80..(3DS,5DS)..(EUR,GEN)

NO.2

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-89122

AE8#,CE80,EE80..(3DS,5DS)..(EUR,GEN)

NO.1

 1
85349-89122

AE8#,CE80,EE80..(3DS,5DS)..(EUR,GEN)

NO.2

 1
85348T - JOINT, REAR WASHER HOSE, NO.2
85355-20080

AE8#,CE80,EE80..(3DS,5D,5DS)..(EUR,GEN,SAA)

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90446-07001

AE8#,CE80,EE80..5D

*H,L=600

 1
90099-33445

AE8#,CE80,EE80..3DS,5DS

*H,L=3150

 1
90099-33490

AE8#,CE80,EE80..(3DS,5DS)..(EUR,GEN)

L=3050

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90446-07001

AE8#,CE80,EE80..5D

*H,L=600

 1
90099-33445

AE8#,CE80,EE80..3DS,5DS

*H,L=3150

 1
90099-33490

AE8#,CE80,EE80..(3DS,5DS)..(EUR,GEN)

L=3050

 1
85372D - GROMMET, REAR WASHER HOSE
85372-14020

AE8#,CE80,EE80..(3DS,5D,5DS)..(EUR,GEN,SAA)

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90099-33299

AE8#,CE80,EE80..(3DS,5DS)..(EUR,GEN)

*H,L=100

 1
90099-33409

AE8#,CE80,EE80..5D

L=2420

 1
Common parts
90480-56003
90950-01254
90950-01360
90989-01021
