EE80R-EHHNS (1984)

Toyota Corolla Sed/Lb

Production Oct 1984 - Apr 1987
Engine 2EL
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )2EL#

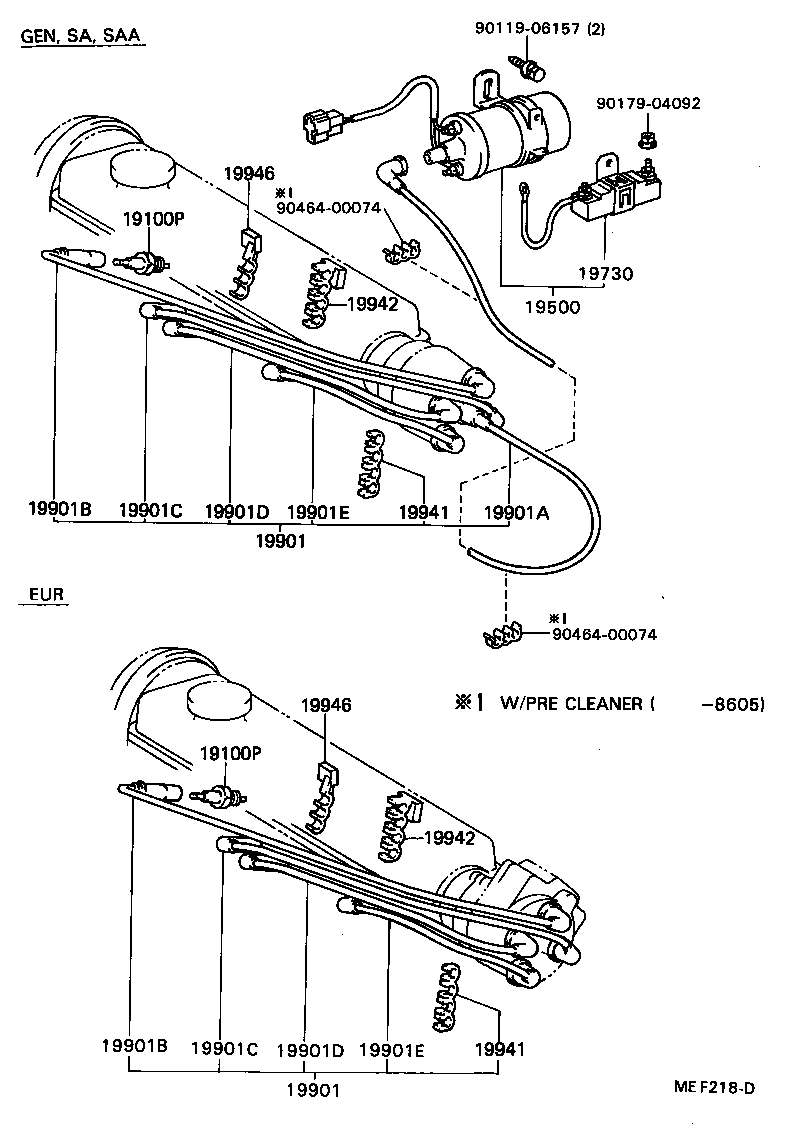

Click highlighted areas on diagram

diagram 19100P 19100P 19500 19730 19901 19901 19901A 19901B 19901B 19901C 19901C 19901D 19901D 19901E 19901E 19941 19941 19942 19942 19946 19946 9011906157 9017904092 9046400074 9046400074
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01083

2EL..EE80..GEN,SAA

W20EX-U,W20EX-U

 4
90919-01137

2EL..EE80..GEN,SAA

W20EX-U

 4
19100P - PLUG, SPARK
90919-01083

2EL..EE80..GEN,SAA

W20EX-U,W20EX-U

 4
90919-01137

2EL..EE80..GEN,SAA

W20EX-U

 4
19500 - COIL ASSY, IGNITION
90919-02148

2EL..EE80..GEN,SA,SAA

 1
19730 - RESISTOR, IGNITION COIL
90919-04040

2EL..EE80..GEN,SA,SAA

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21366

2EL..EE80..GEN,SA,SAA

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21366

2EL..EE80..GEN,SA,SAA

 1
19901A - CORD, COIL RESISTIVE
90919-13240

2EL..EE80..GEN,SA,SAA

 1
Common parts
90119-06157
90179-04092
90464-00074
