EE80R-EHHDSW (1984)

Toyota Corolla Sed/Lb

Production Oct 1984 - Apr 1987
Engine 2EL
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8410-8505)2EL..EUG ; (8505-8605)2EL..MTM..EUG

Click highlighted areas on diagram

diagram 17303B 17368A 23262 23265 23275 23281 9033903002 9033903002 9033903005 9033903005 9041404002 9041404006 9044704055 9044704057 9044711001 9046400154 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9161160812
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-11050

2EL..EE80..EUG

 1
17303-11051

2EL..EE80..EUG

 1
17368A - SUPPORT, AIR TUBE
17368-11010

2EL..EE80..EUG

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05035

2EL..EE80..EUG

NO.2

 1
90925-05076

2EL..EE80..3FC..EUG

NO.1

 1
23275 - VALVE, VACUUM CONTROL, NO.1
90925-03155

2EL#..EE80..EUR

NO.1

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01014

2EL..EE80..EUR,SAA

 1
90925-01041

2EL..EE80..EUR,SAA

 1
90925-01014

2EL..EE80..EUG

 1
Common parts
90339-03002
90339-03005
90414-04002
90414-04006
90447-04055
90447-04057
90447-11001
90464-00154
90999-92002
91611-60812

(8505-8511)2EL..3FC..EUG

Click highlighted areas on diagram

(8509-8511)NEW ZEALAND SPEC

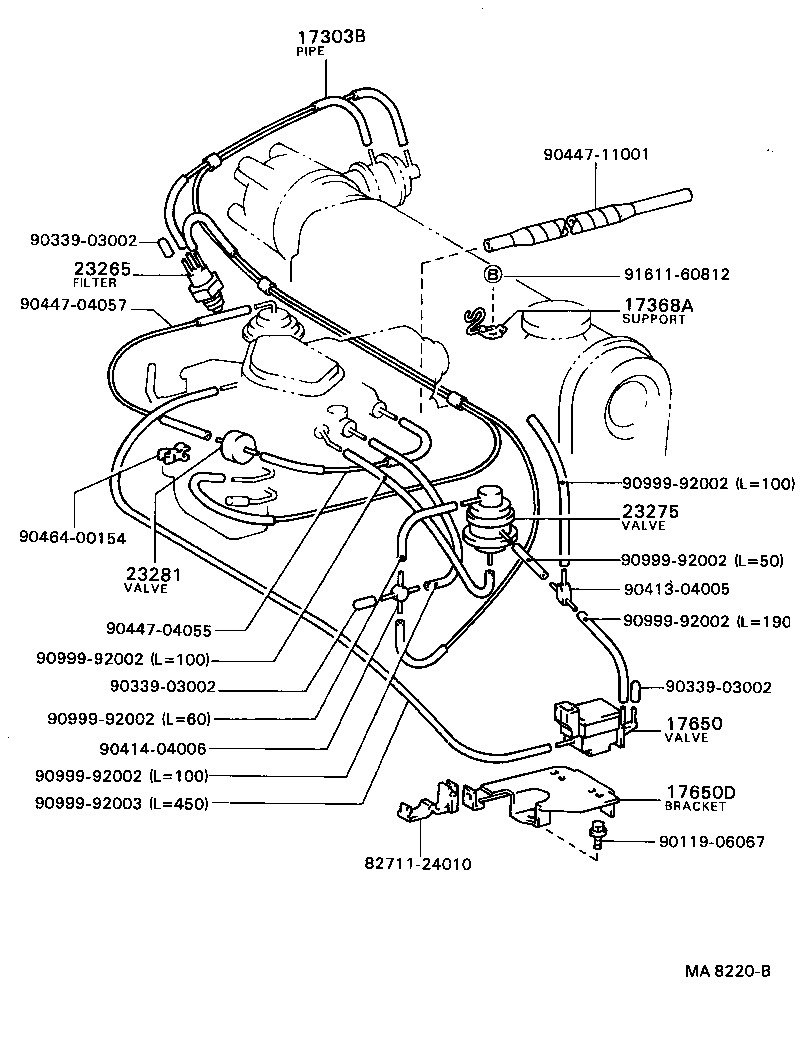

diagram 17303B 17368A 17650 17650D 23265 23275 23281 8271124010 9011906067 9033903002 9033903002 9033903002 9041304005 9041404006 9044704055 9044704057 9044711001 9046400154 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003 9161160812
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-11050

2EL..EE80..EUG

 1
17303-11051

2EL..EE80..EUG

 1
17368A - SUPPORT, AIR TUBE
17368-11010

2EL..EE80..EUG

 1
17650 - VALVE ASSY, VACUUM SWITCHING
90910-12006

2EL..EE80..3FC..EUG

 1
17650D - BRACKET, VACUUM SWITCHING VALVE
21999-11010

2EL..EE80..3FC..EUG

 1
23275 - VALVE, VACUUM CONTROL, NO.1
90925-03155

2EL#..EE80..EUR

NO.1

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01014

2EL..EE80..EUR,SAA

 1
90925-01041

2EL..EE80..EUR,SAA

 1
90925-01014

2EL..EE80..EUG

 1
Common parts
82711-24010
90119-06067
90339-03002
90413-04005
90414-04006
90447-04055
90447-04057
90447-11001
90464-00154
90999-92002
90999-92003
91611-60812

(8511-8605)2EL..3FC..EUG

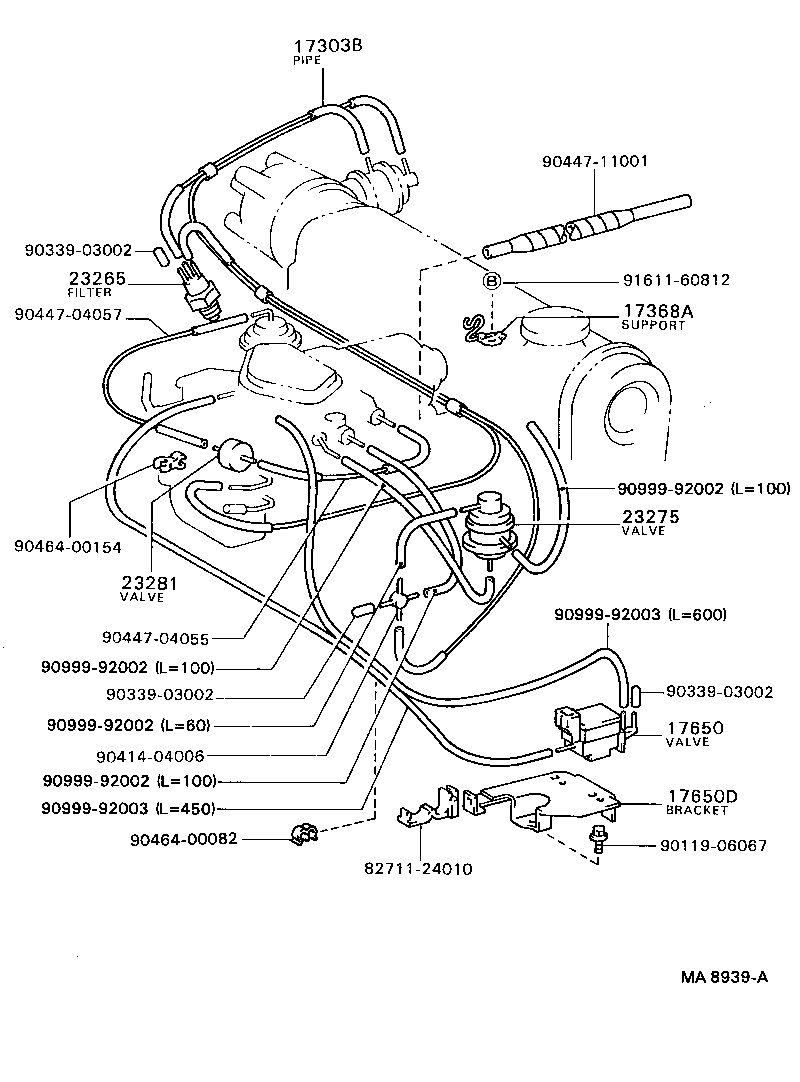

Click highlighted areas on diagram

(8511- )NEW ZEALAND SPEC

diagram 17303B 17368A 17650 17650D 23265 23275 23281 8271124010 9011906067 9033903002 9033903002 9033903002 9041404006 9044704055 9044704057 9044711001 9046400082 9046400154 9099992002 9099992002 9099992002 9099992002 9099992003 9099992003 9161160812
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-11050

2EL..EE80..EUG

 1
17303-11051

2EL..EE80..EUG

 1
17368A - SUPPORT, AIR TUBE
17368-11010

2EL..EE80..EUG

 1
17650 - VALVE ASSY, VACUUM SWITCHING
90910-12006

2EL..EE80..3FC..EUG

 1
17650D - BRACKET, VACUUM SWITCHING VALVE
21999-11010

2EL..EE80..3FC..EUG

 1
23275 - VALVE, VACUUM CONTROL, NO.1
90925-03155

2EL#..EE80..EUR

NO.1

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01014

2EL..EE80..EUR,SAA

 1
90925-01041

2EL..EE80..EUR,SAA

 1
90925-01014

2EL..EE80..EUG

 1
Common parts
82711-24010
90119-06067
90339-03002
90414-04006
90447-04055
90447-04057
90447-11001
90464-00082
90464-00154
90999-92002
90999-92003
91611-60812

(8605- )2EL..3FC..EUG

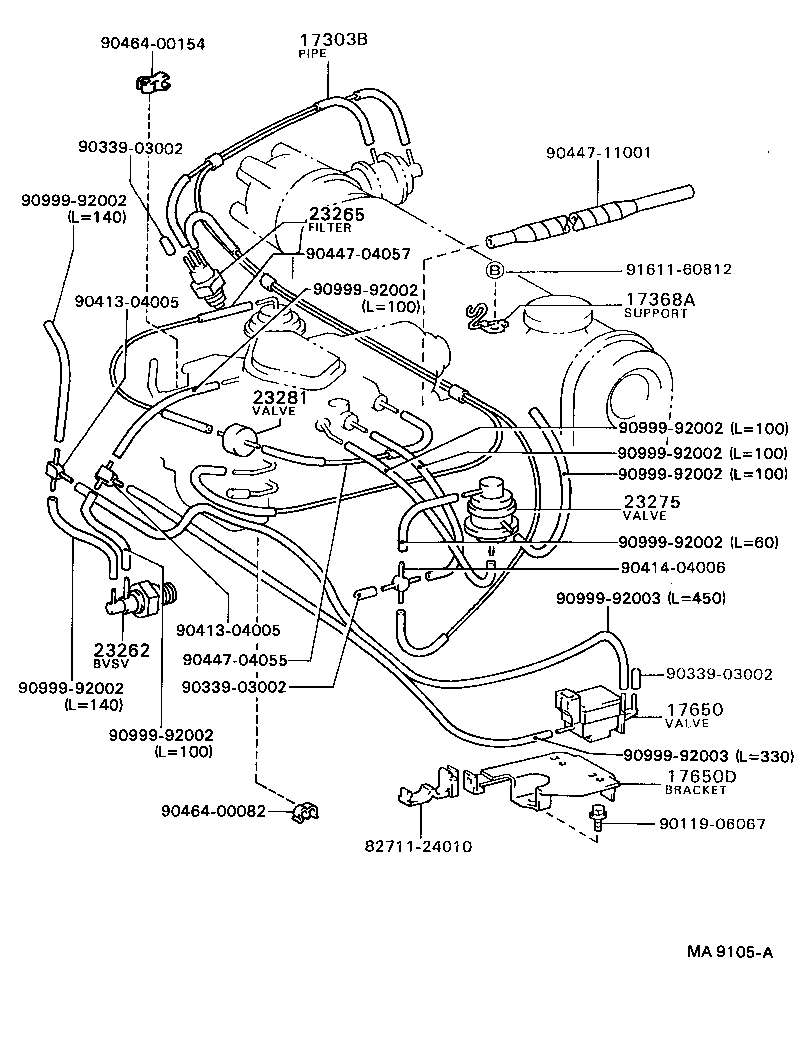

Click highlighted areas on diagram

diagram 17303B 17368A 17650 17650D 23262 23265 23275 23281 8271124010 9011906067 9033903002 9033903002 9033903002 9041304005 9041304005 9041404006 9044704055 9044704057 9044711001 9046400082 9046400154 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003 9099992003 9161160812
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-11050

2EL..EE80..EUG

 1
17303-11051

2EL..EE80..EUG

 1
17368A - SUPPORT, AIR TUBE
17368-11010

2EL..EE80..EUG

 1
17650 - VALVE ASSY, VACUUM SWITCHING
90910-12006

2EL..EE80..3FC..EUG

 1
17650D - BRACKET, VACUUM SWITCHING VALVE
21999-11010

2EL..EE80..3FC..EUG

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05035

2EL..EE80..EUG

NO.2

 1
90925-05076

2EL..EE80..3FC..EUG

NO.1

 1
23275 - VALVE, VACUUM CONTROL, NO.1
90925-03155

2EL#..EE80..EUR

NO.1

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01014

2EL..EE80..EUR,SAA

 1
90925-01041

2EL..EE80..EUR,SAA

 1
90925-01014

2EL..EE80..EUG

 1
Common parts
82711-24010
90119-06067
90339-03002
90413-04005
90414-04006
90447-04055
90447-04057
90447-11001
90464-00082
90464-00154
90999-92002
90999-92003
91611-60812
