EE80R-EGMNSW (1984)

Toyota Corolla Sed/Lb

Production Oct 1984 - Apr 1987
Engine 2EL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )3DS

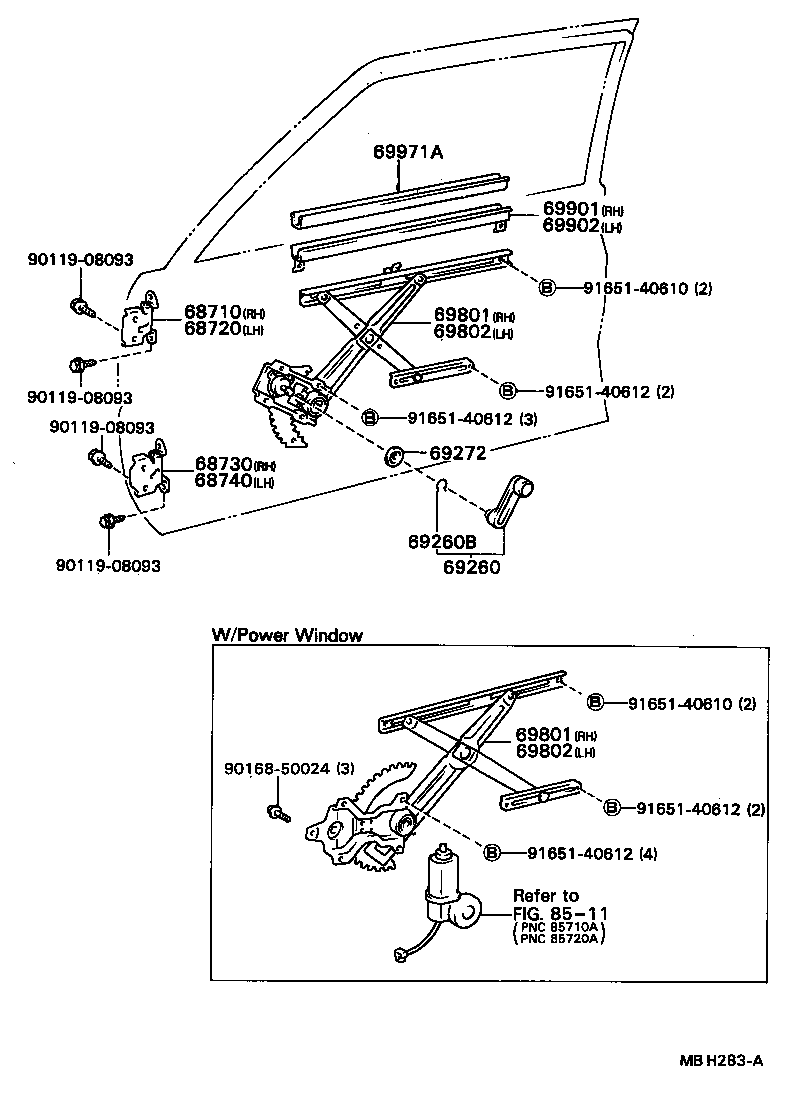

Click highlighted areas on diagram

diagram 68710 68720 68730 68740 69260 69260B 69272 69801 69801 69802 69802 69901 69902 69971A 8511 9011908093 9011908093 9011908093 9011908093 9016850024 9165140610 9165140610 9165140612 9165140612 9165140612 9165140612
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-12090

AE8#,CE80,EE80

T=4.0

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-12090

AE8#,CE80,EE80

T=4.0

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-24010

AE8#,CE80,EE80

T=4.0

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-24010

AE8#,CE80,EE80

T=4.0

 1
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01002

AE8#,CE80,EE80

 2
69272 - PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
69268-16010

AE8#,CE80,EE80

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-12190

AE82,CE80,EE80..3DS

 1
69810-12270

AE82,CE80,EE80..3DS

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-12190

AE82,CE80,EE80..3DS

 1
69810-12270

AE82,CE80,EE80..3DS

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-12190

AE82,CE80,EE80..3DS

 1
69820-12270

AE82,CE80,EE80..3DS

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-12190

AE82,CE80,EE80..3DS

 1
69820-12270

AE82,CE80,EE80..3DS

 1
69901 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
69901-12170

AE82,CE80,EE80..3DS

W/GLASS,T=3.5

 1
69901-12171

AE82,CE80,EE80..3DS

W/GLASS,T=3.5

 1
69902 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
69902-12110

AE82,CE80,EE80..3DS

W/GLASS,T=3.5

 1
69902-12111

AE82,CE80,EE80..3DS

W/GLASS,T=3.5

 1
69971A - FILLER, FRONT DOOR GLASS CHANNEL
69971-12040

AE8#,CE80,EE80

 2
Common parts
90119-08093
90168-50024
91651-40610
91651-40612
Linked diagrams
8511
