EE80R-EGMDSW (1984)

Toyota Corolla Sed/Lb

Production Oct 1984 - Apr 1987
Engine 2EL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )3DS,5DS

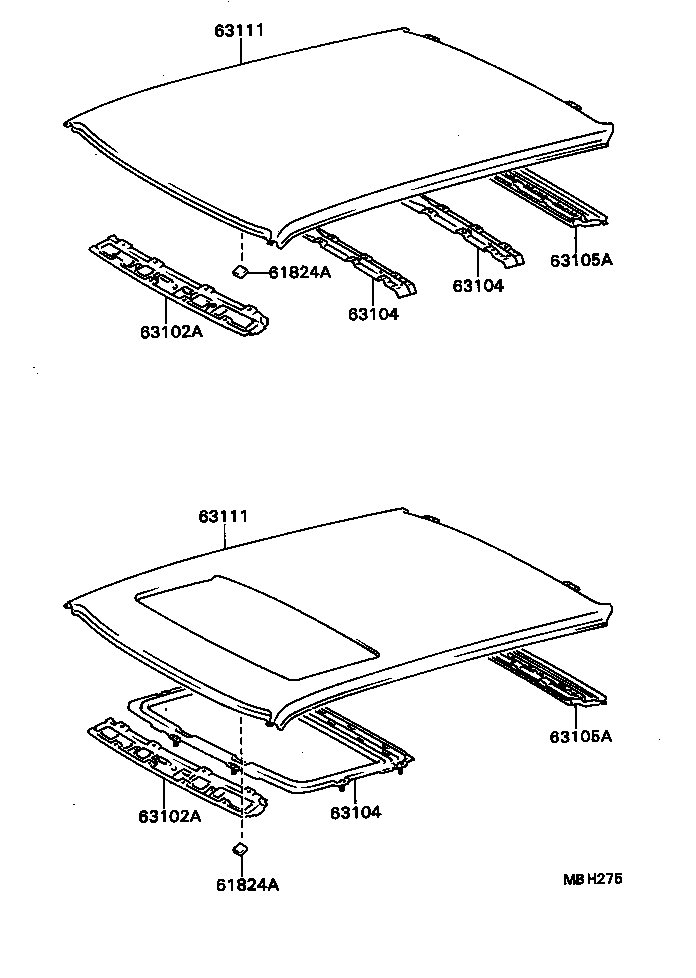

Click highlighted areas on diagram

diagram 61824A 61824A 63102A 63102A 63104 63104 63104 63105A 63105A 63111 63111
Part # Description Qty Price
61824A - PLATE, NOISE CONTROL, NO.1
61824-12010

AE8#,CE80,EE80..3DS,5D,5DS

 2
61824A - PLATE, NOISE CONTROL, NO.1
61824-12010

AE8#,CE80,EE80..3DS,5D,5DS

 2
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-12020

AE8#,CE80,EE80..SED

 1
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-12020

AE8#,CE80,EE80..SED

 1
63105A - FRAME SUB-ASSY, BACK DOOR OPENING
63105-12150

AE82,CE80,EE80..(3DS,5DS)..EUR

 1
63105-12130

AE8#,CE80,EE80..3DS,5DS

 1
63105A - FRAME SUB-ASSY, BACK DOOR OPENING
63105-12150

AE82,CE80,EE80..(3DS,5DS)..EUR

 1
63105-12130

AE8#,CE80,EE80..3DS,5DS

 1
63111 - PANEL, ROOF
63111-12290

AE82,CE80,EE80..(3DS,5DS)..(DX,GL,GT,XL)..(EUR,GEN)

W/SUN ROOF

 1
63111 - PANEL, ROOF
63111-12290

AE82,CE80,EE80..(3DS,5DS)..(DX,GL,GT,XL)..(EUR,GEN)

W/SUN ROOF

 1
