EE80R-EGMDSW (1984)

Toyota Corolla Sed/Lb

Production Oct 1984 - Apr 1987
Engine 2EL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )2EL#

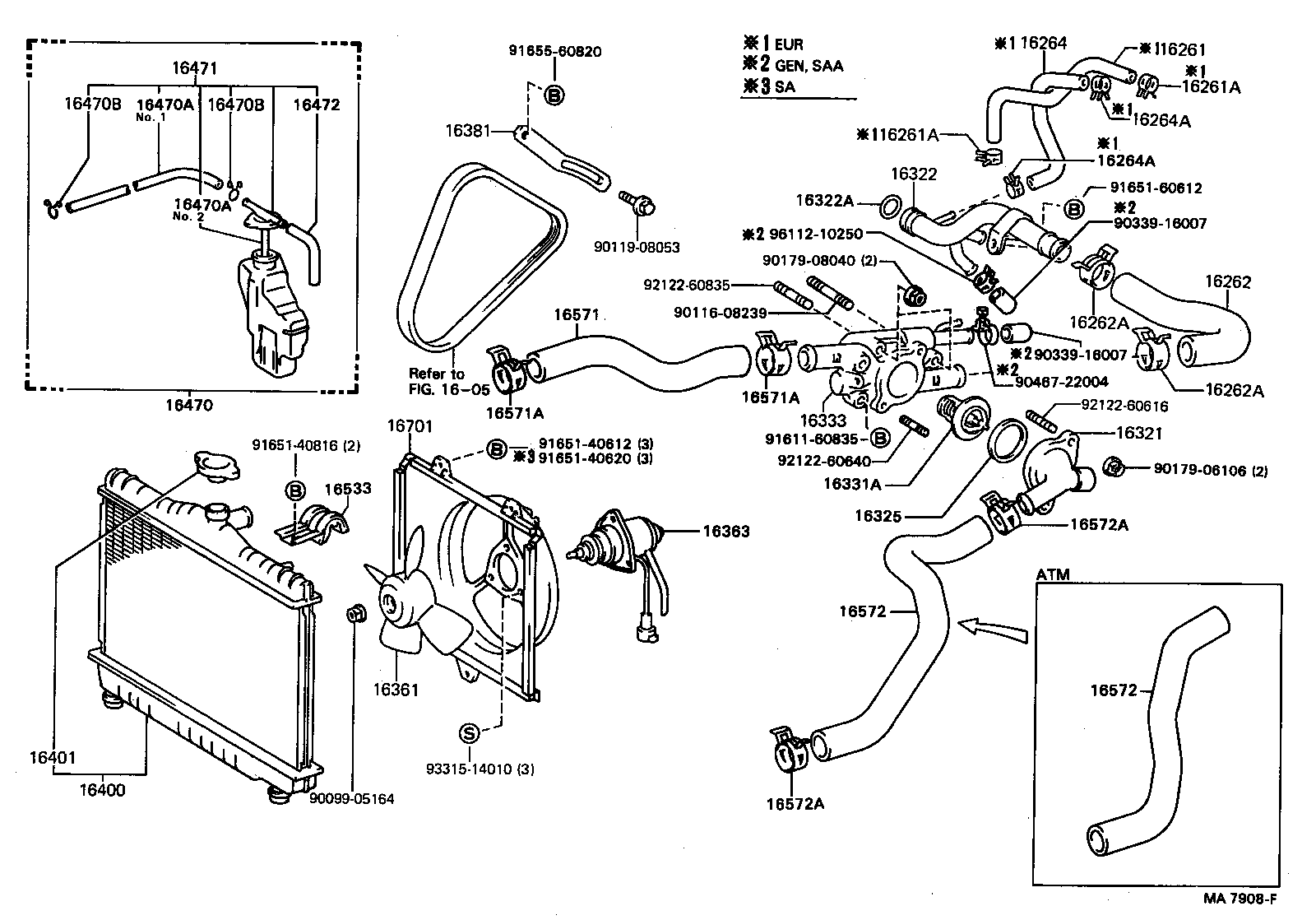

Click highlighted areas on diagram

diagram 1605 16261 16261A 16261A 16262 16262A 16262A 16264 16264A 16264A 16321 16322 16322A 16325 16331A 16333 16361 16363 16381 16400 16401 16470 16470A 16470A 16470B 16470B 16471 16472 16533 16571 16571A 16571A 16572 16572 16572A 16572A 16701 9009905164 9011608239 9011908053 9017906106 9017908040 9033916007 9033916007 9046722004 9161160835 9165140612 9165140612 9165140816 9165160612 9165560820 9212260616 9212260640 9212260835 9331514010 9611210250
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
16261-11010

2EL#..EE80..EUR

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-11009

2EL#..EE80..EUR

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-11009

2EL#..EE80..EUR

 2
16262A - CLIP(FOR WATER INLET HOSE)
90467-34002

2EL#..EE80

 2
16262A - CLIP(FOR WATER INLET HOSE)
90467-34002

2EL#..EE80

 2
16264 - HOSE, WATER BY-PASS, NO.2
16264-11010

2EL#..EE80..EUR

 1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-11009

2EL#..EE80..EUR

 4
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-11009

2EL#..EE80..EUR

 4
16321 - INLET, WATER
16321-11010

2EL..EE80

 1
16322 - PIPE, WATER INLET
16322-11010

2EL#..EE80..EUR

 1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-63010

2EL#..EE80

 1
16331A - THERMOSTAT
90916-03046

2EL#..EE80

*WAX 82-95

 1
16333 - HOUSING, WATER OUTLET
16303-10011

2EL#..EE80

 1
16303-10010

2EL#..EE80

 1
16303-11070

2EL..EE80..EUG

 1
16361 - FAN
16361-63030

2EL..EE80

 1
16363 - MOTOR, COOLING FAN
16363-15090

2EL..EE80

 1
16381 - BAR, FAN BELT ADJUSTING
16381-10040

2EL#..EE80

 1
16400 - RADIATOR ASSY
16400-11010

2EL#..EE80..MTM..EUR

W/CAP

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-63010

2EL#..EE80

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-15020

2EL#..EE80

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

2EL#..EE80

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

2EL#..EE80

 2
16471 - CAP SUB-ASSY, RESERVE TANK
16405-15030

2EL#..EE80

 1
16472 - HOSE, BREATHER
85338-30010

2EL#..EE80

 1
16701 - SHROUD SUB-ASSY, FAN
16711-15140

2EL..EE80

 1
Common parts
90099-05164
90116-08239
90119-08053
90179-06106
90179-08040
90339-16007
90467-22004
91611-60835
91651-40612
91651-40816
91651-60612
91655-60820
92122-60616
92122-60640
92122-60835
93315-14010
96112-10250
Linked diagrams
1605
