EE80R-EGMDSW (1984)

Toyota Corolla Sed/Lb

Production Oct 1984 - Apr 1987
Engine 2EL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )2EL#

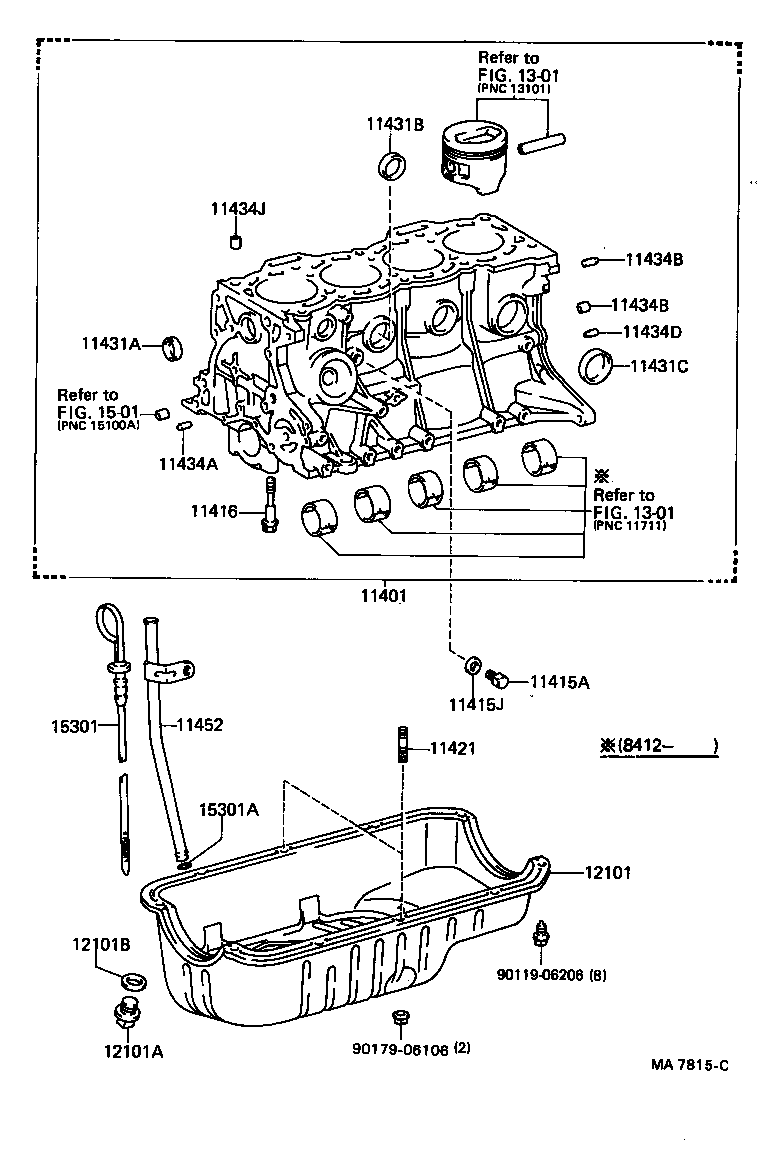

Click highlighted areas on diagram

diagram 11401 11415A 11415J 11416 11421 11431A 11431B 11431C 11434A 11434B 11434B 11434D 11434J 11452 12101 12101A 12101B 1301 1301 1501 15301 15301A 9011906206 9017906106
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-19295

2EL..EE80..EUG

 1
11401-19297

2EL#..EE80..EUR

 1
11401-19296

2EL..EE80..EUG

 1
11401-19298

2EL#..EE80..EUR

 1
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-43000

2EL#..EE80

OD=30

 6
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10052

2EL#..EE80

L=20,OD=10,L=20,OD=10

 1
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10052

2EL#..EE80

L=20,OD=10,L=20,OD=10

 1
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06068

2EL#..EE80

L=11,OD=6

 2
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-10020

2EL#..EE80

 1
Common parts
90119-06206
90179-06106
Linked diagrams
1301
1501
