EE80R-EEMDSN (1985)

Toyota Corolla Sed/Lb

Production Feb 1985 - Apr 1988
Engine 2EL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8605- )4DS,5D..ARL,SA

Click highlighted areas on diagram

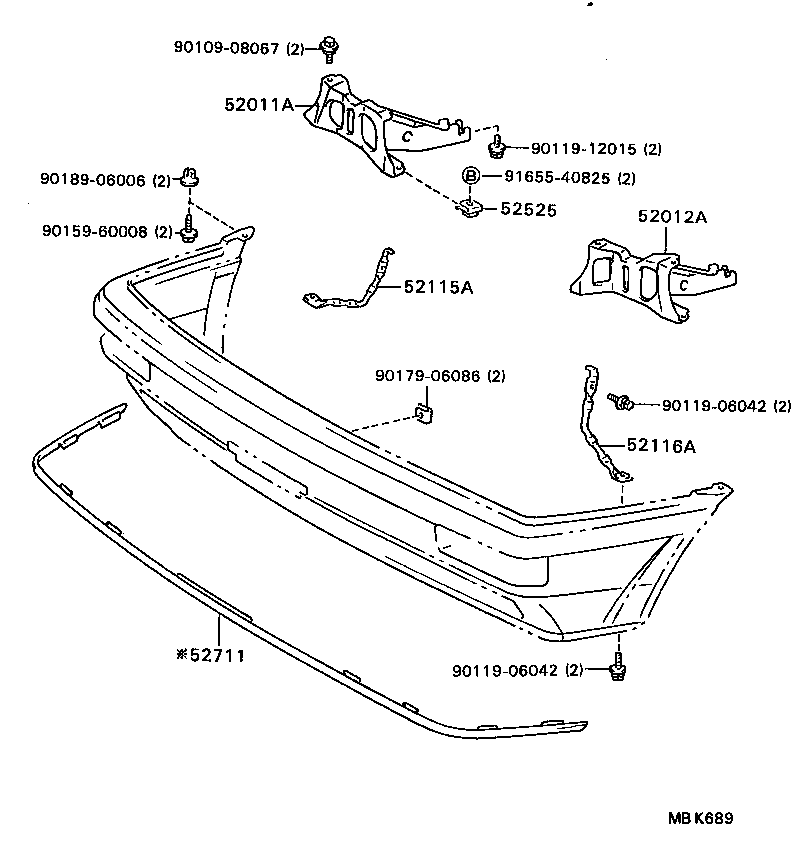

diagram 52011A 52012A 52115A 52116A 52525 52711 9010908067 9011906042 9011906042 9011912015 9015960008 9017906086 9018906006 9165540825
Part # Description Qty Price
52525 - RETAINER, FRONT BUMPER, LOWER CENTER
52565-12040

AE8#,CE80,EE80..ARL,EUR,GEN,SA

 4
Common parts
90109-08067
90119-06042
90119-12015
90159-60008
90179-06086
90189-06006
91655-40825
