EE80R-EEKRS (1984)

Toyota Corolla Sed/Lb

Production Oct 1984 - Apr 1987
Engine 2EL
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )EE80..MTM

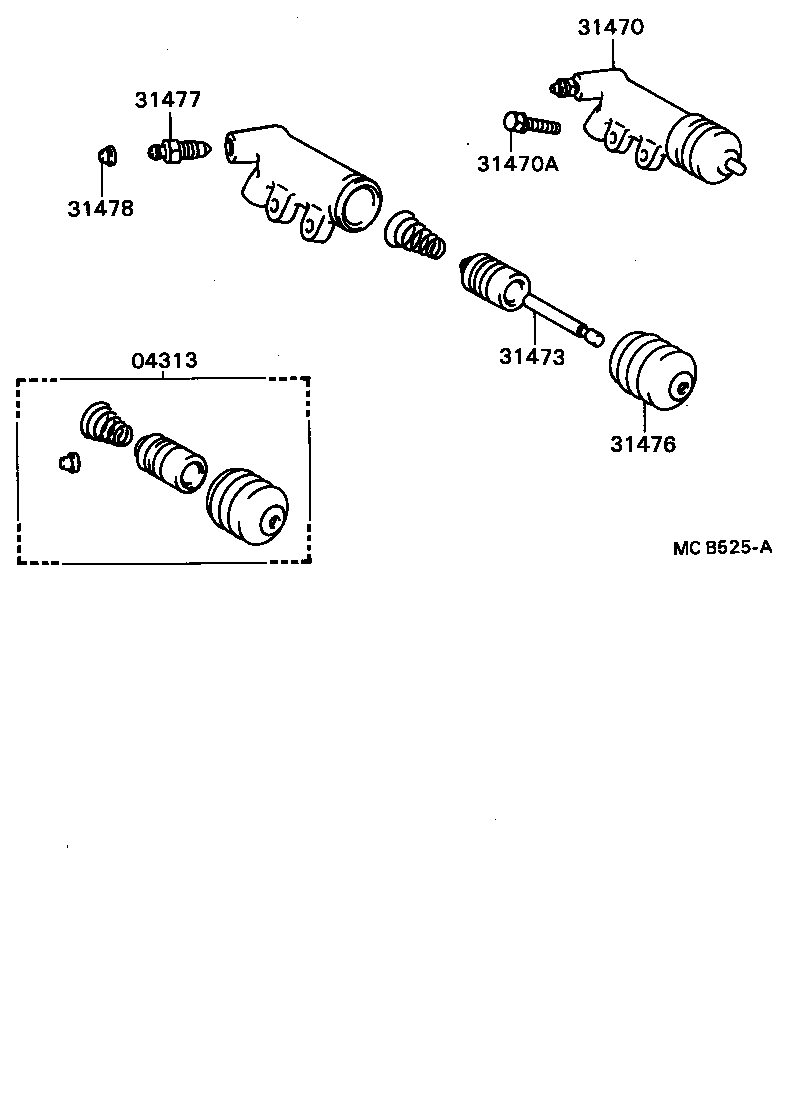

Click highlighted areas on diagram

diagram 04313 31470 31470A 31473 31476 31477 31478
Part # Description Qty Price
04313 - CYLINDER KIT, CLUTCH RELEASE
04313-30120

EE80..MTM

 1
31470 - CYLINDER ASSY, CLUTCH RELEASE
31470-12060

EE80..MTM

 1
31473 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1
31473-32010

AE8#,CE80,EE80..MTM..(EUR,GEN,SA,SAA)

 1
31476 - BOOT, CLUTCH RELEASE CYLINDER
31476-22010

AE8#,CE80,EE80..MTM..(EUR,GEN,SA,SAA)

 1
31477 - PLUG, BLEEDER(FOR RELEASE CYLINDER)
47547-12010

CE80,EE80..MTM

 1
31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)
31478-30010

AE8#,CE80,EE80..MTM

 1
