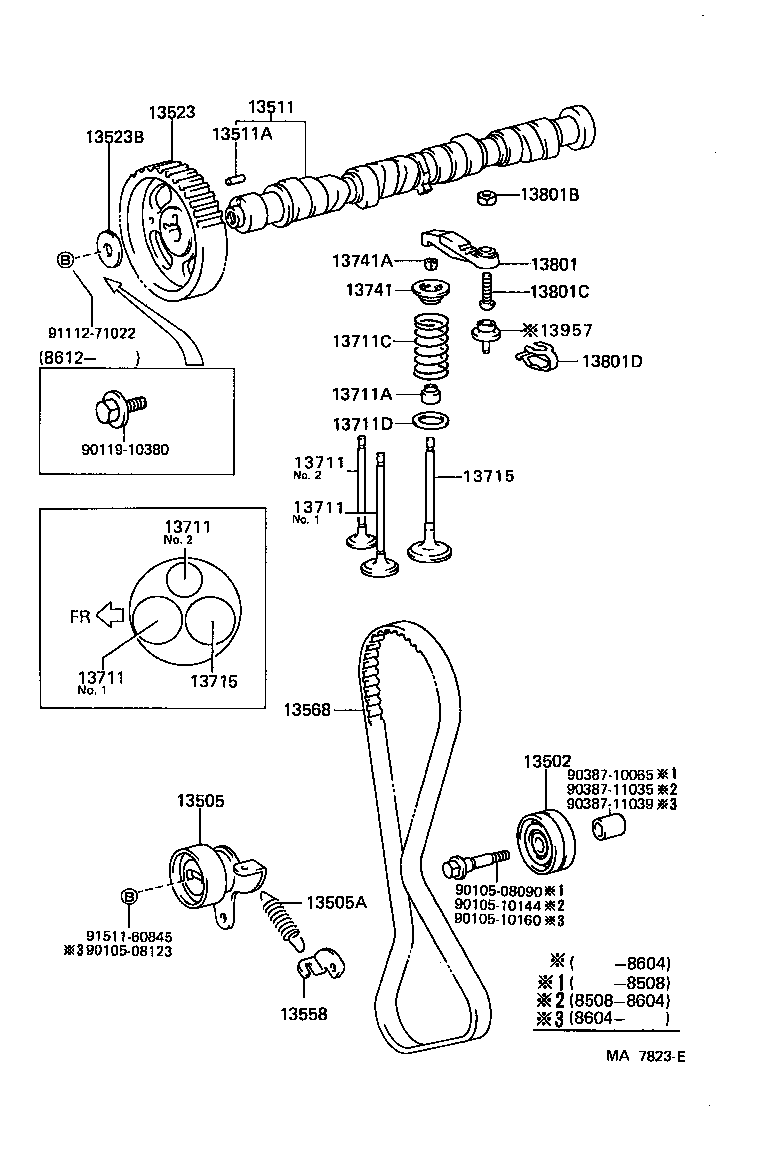

Toyota Corolla sed/lb EE80 CAMSHAFT & VALVE

Part #	Description	Period	Qty
13502 - IDLER SUB-ASSY, TIMING BELT, NO.2
13503-10010	2EL#..EE80	10/1984 - 04/1986	1
13505 - IDLER SUB-ASSY, TIMING BELT, NO.1
13505-10010	2EL#..EE80	10/1984 - 04/1986	1
13505A - SPRING, TENSION(FOR IDLER)
90506-20050	2EL#..EE80	04/1986 - 04/1987	1
90506-16050	2EL#..EE80	10/1984 - 04/1986	1
13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK)
90250-05121	2EL..EE80 L=15,OD=5	05/1983 - 01/1985	2
13523 - GEAR OR SPROCKET, CAMSHAFT TIMING
13523-10030	2EL#..EE80	10/1984 - 04/1986	1
13523B - WASHER, PLATE(FOR TIMING GEAR)
90201-10019	2EL#..EE80	05/1983 - 07/1988	1
13558 - BRACKET, SPRING(FOR IDLER)
13558-10010	2EL#..EE80	10/1984 - 04/1986	1
13568 - BELT, TIMING
13568-11050	2EL#..EE80	04/1986 - 04/1987	1
13568-11010	2EL#..EE80	10/1984 - 04/1986	1
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02070	2EL#..EE80	01/1986 - 05/1986	12
90913-02067	2EL#..EE80	10/1984 - 01/1986	12
13957 - PIVOT, VALVE ROCKER ARM
13957-10010	2EL#..EE80	10/1984 - 04/1986	12
Common parts
90105-08090
90105-08123
90105-10144
90105-10160
90119-10380
90387-10065
90387-11035
90387-11039
91112-71022
91511-60845

EE80R-EEKDS (1984)
