EE80R-EEHNSW (1984)
Toyota Corolla Sed/Lb
(8305-8505)RHD ; (8505-8605)ARL,SA ; (8605- )ARL

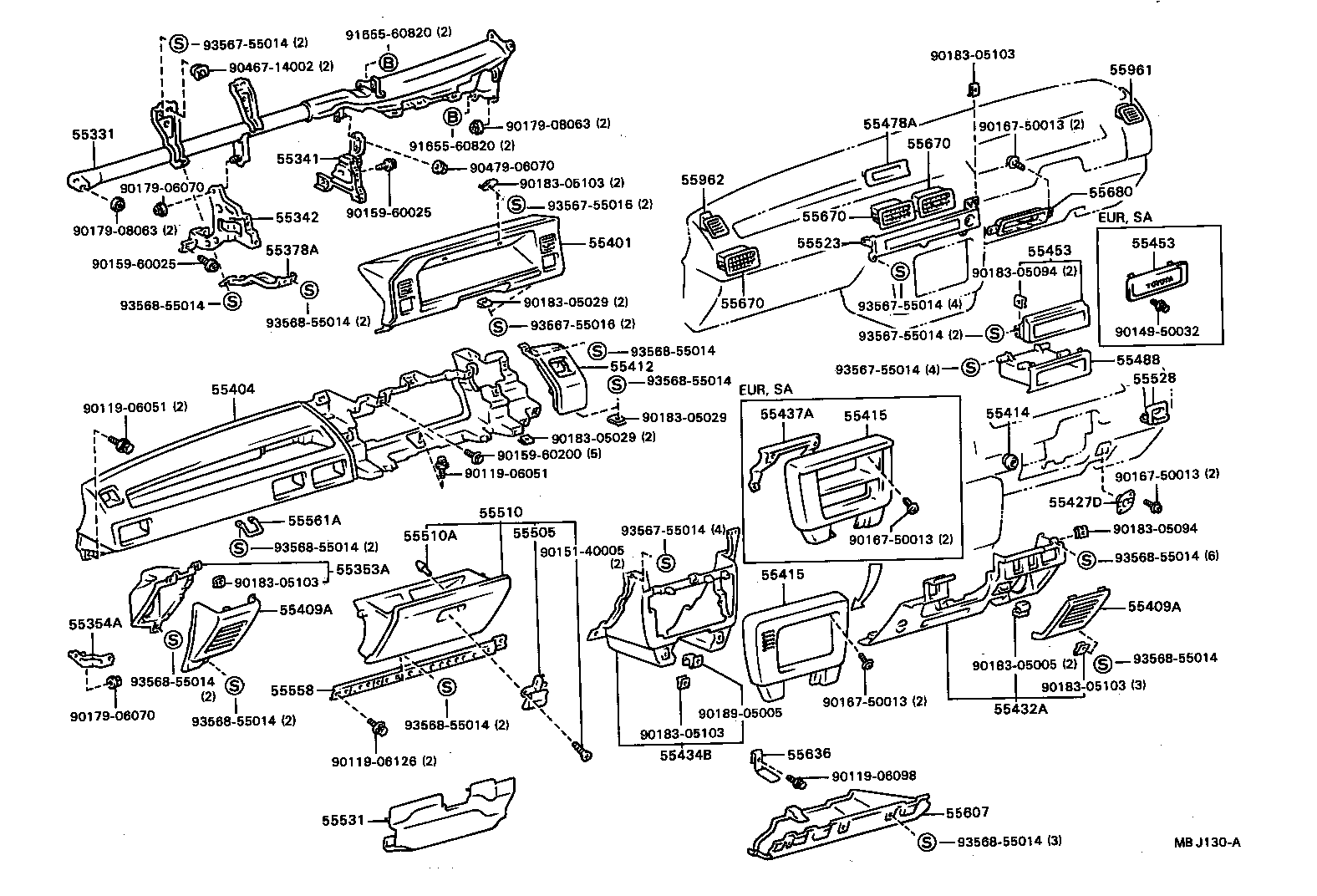

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-12080 |
AE82,CE80,EE80..RHD..(EUR,GEN) |
1 | ||
| 55330-12030 |
AE8#,CE80,EE80..RHD |
1 | ||
| 55330-12080 |
AE82,CE80,EE80..RHD..(EUR,GEN,SA) |
1 | ||
| 55341 - BRACE, INSTRUMENT PANEL, NO.1 | ||||
| 55351-12010 |
AE8#,CE80,EE80..RHD |
1 | ||
| 55342 - BRACE, INSTRUMENT PANEL, NO.2 | ||||
| 55307-12070 |
AE8#,CE80,EE80..RHD |
1 | ||
| 55353A - BRACKET, SPEAKER MOUNTING, NO.1 | ||||
| 55353-12020 |
AE8#,CE80,EE80..RHD |
1 | ||
| 55354A - BRACKET, SPEAKER MOUNTING, NO.2 | ||||
| 55354-12020 |
AE8#,CE80,EE80..RHD |
1 | ||
| 55378A - BRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING | ||||
| 55378-12080 |
AE8#,CE80,EE80 |
1 | ||
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-1253004 |
AE8#,CE80,EE80..(4DS,5D)..RHD..(CS,CSX,DX,GL,S,STD,XL) BLUE,BLUE,TRIM8# |
1 | ||
| 55404-1253104 |
AE82,CE80,EE80..(4DS,5D)..RHD..(DX,GL,XL) BLUE,BLUE,TRIM8# |
1 | ||
| 55404-1253003 |
AE8#,CE80,EE80..RHD GRAY,GRAY,TRIM1# |
1 | ||
| 55404-1253106 |
AE82,CE80,EE80..RHD..(DX,GL,GT,XL)..(EUR,GEN) BROWN,BROWN,TRIM4# |
1 | ||
| 55404-1253103 |
AE82,CE80,EE80..RHD..(DX,GL,GT,XL)..(EUR,GEN) GRAY,GRAY,TRIM1# |
1 | ||
| 55404-1253206 |
AE82,CE80,EE80..RHD..(DX,GL,GT,XL)..(EUR,GEN) BROWN,BROWN,TRIM4# |
1 | ||
| 55404-1253203 |
AE82,CE80,EE80..RHD..(DX,GL,GT,XL)..(EUR,GEN) GRAY,GRAY,TRIM1# |
1 | ||
| 55404-1253204 |
AE82,CE80,EE80..(4DS,5D)..RHD..(DX,GL,XL)..(EUR,GEN) BLUE,BLUE,TRIM8# |
1 | ||
| 55401B - CUSHION, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55419-16010 |
AE8#,CE80,EE80 |
2 | ||
| 55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER | ||||
| 55401-1214004 |
AE8#,CE80,EE80..(4DS,5D)..RHD..(CS,CSX,DX,GL,S,STD,XL) BLUE,BLUE,TRIM8# |
1 | ||
| 55401-1220004 |
AE8#,CE80,EE80..(4DS,5D)..RHD..(DX,GL,STD,XL) BLUE,BLUE,TRIM8# |
1 | ||
| 55401-1220003 |
AE8#,CE80,EE80..RHD GRAY,GRAY,TRIM1# |
1 | ||
| 55401-1214003 |
AE8#,CE80,EE80..RHD GRAY,GRAY,TRIM1# |
1 | ||
| 55401-1220006 |
AE8#,CE80,EE80..RHD BROWN,BROWN,TRIM4# |
1 | ||
| 55412 - PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 55414-1206004 |
AE8#,CE80,EE80..(4DS,5D)..RHD..(CS,CSX,DX,GL,S,STD,XL) BLUE,BLUE,TRIM8# |
1 | ||
| 55414-1209004 |
AE82,CE80,EE80..(4DS,5D)..RHD..(DX,GL,STD,XL)..(EUR,GEN) BLUE,TRIM8# |
1 | ||
| 55414-1206003 |
AE8#,CE80,EE80..RHD GRAY,GRAY,TRIM1# |
1 | ||
| 55414-1209003 |
AE82,CE80,EE80..RHD..(EUR,GEN) GRAY,GRAY,TRIM1# |
1 | ||
| 55414-1209006 |
AE82,CE80,EE80..RHD..(EUR,GEN) BROWN,BROWN,TRIM4# |
1 | ||
| 55414 - BEZEL, CIGAR LIGHTER HOLE | ||||
| 55477-12060 |
AE8#,CE80,EE80 |
1 | ||
| 55415 - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-1226003 |
AE8#,CE80,EE80..RHD..(EUR,SA) GRAY,GRAY,TRIM1# |
1 | ||
| 55405-1226004 |
AE8#,CE80,EE80..(4DS,5D)..RHD..(DX,GL,SE,STD)..(EUR,SA) BLUE,BLUE,TRIM8# |
1 | ||
| 55415 - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-1226003 |
AE8#,CE80,EE80..RHD..(EUR,SA) GRAY,GRAY,TRIM1# |
1 | ||
| 55405-1226004 |
AE8#,CE80,EE80..(4DS,5D)..RHD..(DX,GL,SE,STD)..(EUR,SA) BLUE,BLUE,TRIM8# |
1 | ||
| 55427D - RETAINER, INSTRUMENT FINISH PANEL, LOWER, NO.1 | ||||
| 55427-12070 |
AE8#,CE80,EE80..RHD..(DX,GL,GT,XL)..(EUR,GEN) W/RHEOSTAT |
1 | ||
| 55432A - PANEL, INSTRUMENT PANEL FINISH, LOWER RH | ||||
| 55432-1218103 |
AE82,EE80..RHD..(GL,GT)..(EUR,GEN) W/TILT STEERING,GRAY,GRAY,TRIM1# |
1 | ||
| 55432-1219104 |
AE82,CE80,EE80..(4DS,5D)..RHD..(DX,GL,STD,XL)..(EUR,GEN) W/O TILT STEERING,BLUE,BLUE,TRIM8# |
1 | ||
| 55432-1218106 |
AE82,EE80..RHD..(GL,GT)..(EUR,GEN) W/TILT STEERING,BROWN,BROWN,TRIM4# |
1 | ||
| 55432-1219106 |
AE82,CE80,EE80..RHD..(DX,GL,STD,XL)..(EUR,GEN) W/O TILT STEERING,BROWN,BROWN,TRIM4# |
1 | ||
| 55432-1218104 |
AE82,EE80..(4DS,5D)..RHD..GL..(EUR,GEN) W/TILT STEERING,BLUE,BLUE,TRIM8# |
1 | ||
| 55432-1219103 |
AE82,CE80,EE80..RHD..(DX,GL,STD,XL)..(EUR,GEN) W/O TILT STEERING,GRAY,GRAY,TRIM1# |
1 | ||
| 55437A - RETAINER, INSTRUMENT PANEL FINISH PANEL, NO.1 | ||||
| 55437-12020 |
AE8#,CE80,EE80..EUR,SA |
1 | ||
| 55453 - COVER, RADIO TUNER OPENING | ||||
| 55522-14070 |
AE8#,CE80,EE80..EUR,SA |
1 | ||
| 55453 - COVER, RADIO TUNER OPENING | ||||
| 55522-14070 |
AE8#,CE80,EE80..EUR,SA |
1 | ||
| 55478A - BEZEL, AUTO CLOCK HOLE | ||||
| 55478-1203004 |
AE8#,CE80,EE80..(4DS,5D)..(DX,GL,STD,XL)..(EUR,GEN,SAA) BLUE,BLUE,TRIM8# |
1 | ||
| 55478-1203003 |
AE8#,CE80,EE80..EUR,GEN,SAA GRAY,GRAY,TRIM1# |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-03015 |
AE8#,CE80,EE80 |
3 | ||
| 55528 - COVER, AUTO DRIVE OPENING | ||||
| 55528-12010 |
AE8#,CE80,EE80..RHD |
1 | ||
| 55558 - REINFORCEMENT, GLOVE COMPARTMENT DOOR | ||||
| 55558-12020 |
AE8#,CE80,EE80..RHD |
1 | ||
| 55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-12040 |
AE8#,CE80,EE80 |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-12100 |
AE8#,CE80,EE80..RHD |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-12180 |
AE8#,CE80,EE80..RHD |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-1208003 |
AE8#,CE80,EE80..EUR,SA GRAY,GRAY,TRIM1# |
3 | ||
| 55670-1208004 |
AE8#,CE80,EE80..(4DS,5D)..(DX,GL,STD)..(EUR,SA) BLUE,BLUE,TRIM8# |
3 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-1208003 |
AE8#,CE80,EE80..EUR,SA GRAY,GRAY,TRIM1# |
3 | ||
| 55670-1208004 |
AE8#,CE80,EE80..(4DS,5D)..(DX,GL,STD)..(EUR,SA) BLUE,BLUE,TRIM8# |
3 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-1208003 |
AE8#,CE80,EE80..EUR,SA GRAY,GRAY,TRIM1# |
3 | ||
| 55670-1208004 |
AE8#,CE80,EE80..(4DS,5D)..(DX,GL,STD)..(EUR,SA) BLUE,BLUE,TRIM8# |
3 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55093-1203004 |
AE82..4DS..4FC..ARL;AE8#,CE80,EE80..(4DS,5D)..(DX,GL,SE,STD,XL) BLUE,BLUE,TRIM8# |
1 | ||
| 55093-1203003 |
AE8#,CE80,EE80 GRAY,GRAY,TRIM1# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55094-1203004 |
AE82..4DS..4FC..ARL;AE8#,CE80,EE80..(4DS,5D)..(DX,GL,SE,STD,XL) BLUE,BLUE,TRIM8# |
1 | ||
| 55094-1203003 |
AE8#,CE80,EE80 GRAY,GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-06051 | ||||
| 90119-06098 | ||||
| 90119-06126 | ||||
| 90149-50032 | ||||
| 90151-40005 | ||||
| 90159-60025 | ||||
| 90159-60200 | ||||
| 90167-50013 | ||||
| 90179-06070 | ||||
| 90179-08063 | ||||
| 90183-05005 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90467-14002 | ||||
| 90468-04032 | ||||
| 91656-60818 | ||||
| 93229-54012 | ||||
| 93567-55014 | ||||
| 93567-55016 | ||||
| 93568-55014 | ||||
(8505-8605)RHD..EUR,GEN ; (8605- )RHD..EUR,GEN,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-12080 |
AE82,CE80,EE80..RHD..(EUR,GEN) |
1 | ||
| 55330-12030 |
AE8#,CE80,EE80..RHD |
1 | ||
| 55330-12080 |
AE82,CE80,EE80..RHD..(EUR,GEN,SA) |
1 | ||
| 55341 - BRACE, INSTRUMENT PANEL, NO.1 | ||||
| 55351-12010 |
AE8#,CE80,EE80..RHD |
1 | ||
| 55342 - BRACE, INSTRUMENT PANEL, NO.2 | ||||
| 55307-12070 |
AE8#,CE80,EE80..RHD |
1 | ||
| 55353A - BRACKET, SPEAKER MOUNTING, NO.1 | ||||
| 55353-12020 |
AE8#,CE80,EE80..RHD |
1 | ||
| 55354A - BRACKET, SPEAKER MOUNTING, NO.2 | ||||
| 55354-12020 |
AE8#,CE80,EE80..RHD |
1 | ||
| 55378A - BRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING | ||||
| 55378-12080 |
AE8#,CE80,EE80 |
1 | ||
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-1253004 |
AE8#,CE80,EE80..(4DS,5D)..RHD..(CS,CSX,DX,GL,S,STD,XL) BLUE,BLUE,TRIM8# |
1 | ||
| 55404-1253104 |
AE82,CE80,EE80..(4DS,5D)..RHD..(DX,GL,XL) BLUE,BLUE,TRIM8# |
1 | ||
| 55404-1253003 |
AE8#,CE80,EE80..RHD GRAY,GRAY,TRIM1# |
1 | ||
| 55404-1253106 |
AE82,CE80,EE80..RHD..(DX,GL,GT,XL)..(EUR,GEN) BROWN,BROWN,TRIM4# |
1 | ||
| 55404-1253103 |
AE82,CE80,EE80..RHD..(DX,GL,GT,XL)..(EUR,GEN) GRAY,GRAY,TRIM1# |
1 | ||
| 55404-1253206 |
AE82,CE80,EE80..RHD..(DX,GL,GT,XL)..(EUR,GEN) BROWN,BROWN,TRIM4# |
1 | ||
| 55404-1253203 |
AE82,CE80,EE80..RHD..(DX,GL,GT,XL)..(EUR,GEN) GRAY,GRAY,TRIM1# |
1 | ||
| 55404-1253204 |
AE82,CE80,EE80..(4DS,5D)..RHD..(DX,GL,XL)..(EUR,GEN) BLUE,BLUE,TRIM8# |
1 | ||
| 55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER | ||||
| 55401-1214004 |
AE8#,CE80,EE80..(4DS,5D)..RHD..(CS,CSX,DX,GL,S,STD,XL) BLUE,BLUE,TRIM8# |
1 | ||
| 55401-1220004 |
AE8#,CE80,EE80..(4DS,5D)..RHD..(DX,GL,STD,XL) BLUE,BLUE,TRIM8# |
1 | ||
| 55401-1220003 |
AE8#,CE80,EE80..RHD GRAY,GRAY,TRIM1# |
1 | ||
| 55401-1214003 |
AE8#,CE80,EE80..RHD GRAY,GRAY,TRIM1# |
1 | ||
| 55401-1220006 |
AE8#,CE80,EE80..RHD BROWN,BROWN,TRIM4# |
1 | ||
| 55412 - PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 55414-1206004 |
AE8#,CE80,EE80..(4DS,5D)..RHD..(CS,CSX,DX,GL,S,STD,XL) BLUE,BLUE,TRIM8# |
1 | ||
| 55414-1209004 |
AE82,CE80,EE80..(4DS,5D)..RHD..(DX,GL,STD,XL)..(EUR,GEN) BLUE,TRIM8# |
1 | ||
| 55414-1206003 |
AE8#,CE80,EE80..RHD GRAY,GRAY,TRIM1# |
1 | ||
| 55414-1209003 |
AE82,CE80,EE80..RHD..(EUR,GEN) GRAY,GRAY,TRIM1# |
1 | ||
| 55414-1209006 |
AE82,CE80,EE80..RHD..(EUR,GEN) BROWN,BROWN,TRIM4# |
1 | ||
| 55414 - BEZEL, CIGAR LIGHTER HOLE | ||||
| 55477-12060 |
AE8#,CE80,EE80 |
1 | ||
| 55415 - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-1226003 |
AE8#,CE80,EE80..RHD..(EUR,SA) GRAY,GRAY,TRIM1# |
1 | ||
| 55405-1226004 |
AE8#,CE80,EE80..(4DS,5D)..RHD..(DX,GL,SE,STD)..(EUR,SA) BLUE,BLUE,TRIM8# |
1 | ||
| 55415 - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-1226003 |
AE8#,CE80,EE80..RHD..(EUR,SA) GRAY,GRAY,TRIM1# |
1 | ||
| 55405-1226004 |
AE8#,CE80,EE80..(4DS,5D)..RHD..(DX,GL,SE,STD)..(EUR,SA) BLUE,BLUE,TRIM8# |
1 | ||
| 55427D - RETAINER, INSTRUMENT FINISH PANEL, LOWER, NO.1 | ||||
| 55427-12070 |
AE8#,CE80,EE80..RHD..(DX,GL,GT,XL)..(EUR,GEN) W/RHEOSTAT |
1 | ||
| 55432A - PANEL, INSTRUMENT PANEL FINISH, LOWER RH | ||||
| 55432-1218103 |
AE82,EE80..RHD..(GL,GT)..(EUR,GEN) W/TILT STEERING,GRAY,GRAY,TRIM1# |
1 | ||
| 55432-1219104 |
AE82,CE80,EE80..(4DS,5D)..RHD..(DX,GL,STD,XL)..(EUR,GEN) W/O TILT STEERING,BLUE,BLUE,TRIM8# |
1 | ||
| 55432-1218106 |
AE82,EE80..RHD..(GL,GT)..(EUR,GEN) W/TILT STEERING,BROWN,BROWN,TRIM4# |
1 | ||
| 55432-1219106 |
AE82,CE80,EE80..RHD..(DX,GL,STD,XL)..(EUR,GEN) W/O TILT STEERING,BROWN,BROWN,TRIM4# |
1 | ||
| 55432-1218104 |
AE82,EE80..(4DS,5D)..RHD..GL..(EUR,GEN) W/TILT STEERING,BLUE,BLUE,TRIM8# |
1 | ||
| 55432-1219103 |
AE82,CE80,EE80..RHD..(DX,GL,STD,XL)..(EUR,GEN) W/O TILT STEERING,GRAY,GRAY,TRIM1# |
1 | ||
| 55437A - RETAINER, INSTRUMENT PANEL FINISH PANEL, NO.1 | ||||
| 55437-12020 |
AE8#,CE80,EE80..EUR,SA |
1 | ||
| 55453 - COVER, RADIO TUNER OPENING | ||||
| 55522-14070 |
AE8#,CE80,EE80..EUR,SA |
1 | ||
| 55453 - COVER, RADIO TUNER OPENING | ||||
| 55522-14070 |
AE8#,CE80,EE80..EUR,SA |
1 | ||
| 55478A - BEZEL, AUTO CLOCK HOLE | ||||
| 55478-1203004 |
AE8#,CE80,EE80..(4DS,5D)..(DX,GL,STD,XL)..(EUR,GEN,SAA) BLUE,BLUE,TRIM8# |
1 | ||
| 55478-1203003 |
AE8#,CE80,EE80..EUR,GEN,SAA GRAY,GRAY,TRIM1# |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-03015 |
AE8#,CE80,EE80 |
3 | ||
| 55528 - COVER, AUTO DRIVE OPENING | ||||
| 55528-12010 |
AE8#,CE80,EE80..RHD |
1 | ||
| 55531 - PANEL, GLOVE COMPARTMENT | ||||
| 55531-12100 |
AE82,CE80,EE80..RHD..(EUR,GEN) |
1 | ||
| 55558 - REINFORCEMENT, GLOVE COMPARTMENT DOOR | ||||
| 55558-12020 |
AE8#,CE80,EE80..RHD |
1 | ||
| 55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-12040 |
AE8#,CE80,EE80 |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-1208003 |
AE8#,CE80,EE80..EUR,SA GRAY,GRAY,TRIM1# |
3 | ||
| 55670-1208004 |
AE8#,CE80,EE80..(4DS,5D)..(DX,GL,STD)..(EUR,SA) BLUE,BLUE,TRIM8# |
3 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-1208003 |
AE8#,CE80,EE80..EUR,SA GRAY,GRAY,TRIM1# |
3 | ||
| 55670-1208004 |
AE8#,CE80,EE80..(4DS,5D)..(DX,GL,STD)..(EUR,SA) BLUE,BLUE,TRIM8# |
3 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-1208003 |
AE8#,CE80,EE80..EUR,SA GRAY,GRAY,TRIM1# |
3 | ||
| 55670-1208004 |
AE8#,CE80,EE80..(4DS,5D)..(DX,GL,STD)..(EUR,SA) BLUE,BLUE,TRIM8# |
3 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55093-1203004 |
AE82..4DS..4FC..ARL;AE8#,CE80,EE80..(4DS,5D)..(DX,GL,SE,STD,XL) BLUE,BLUE,TRIM8# |
1 | ||
| 55093-1203003 |
AE8#,CE80,EE80 GRAY,GRAY,TRIM1# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55094-1203004 |
AE82..4DS..4FC..ARL;AE8#,CE80,EE80..(4DS,5D)..(DX,GL,SE,STD,XL) BLUE,BLUE,TRIM8# |
1 | ||
| 55094-1203003 |
AE8#,CE80,EE80 GRAY,GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-06051 | ||||
| 90119-06098 | ||||
| 90119-06126 | ||||
| 90149-50032 | ||||
| 90151-40005 | ||||
| 90159-60025 | ||||
| 90159-60200 | ||||
| 90167-50013 | ||||
| 90179-06070 | ||||
| 90179-08063 | ||||
| 90183-05005 | ||||
| 90183-05029 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90189-05005 | ||||
| 90467-14002 | ||||
| 90479-06070 | ||||
| 91655-60820 | ||||
| 93567-55014 | ||||
| 93567-55016 | ||||
| 93568-55014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
