EE80R-EEHNS (1984)
Toyota Corolla Sed/Lb
Production
Oct 1984
-
Apr 1987
Engine
2EL
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8410- )EE80..RHD

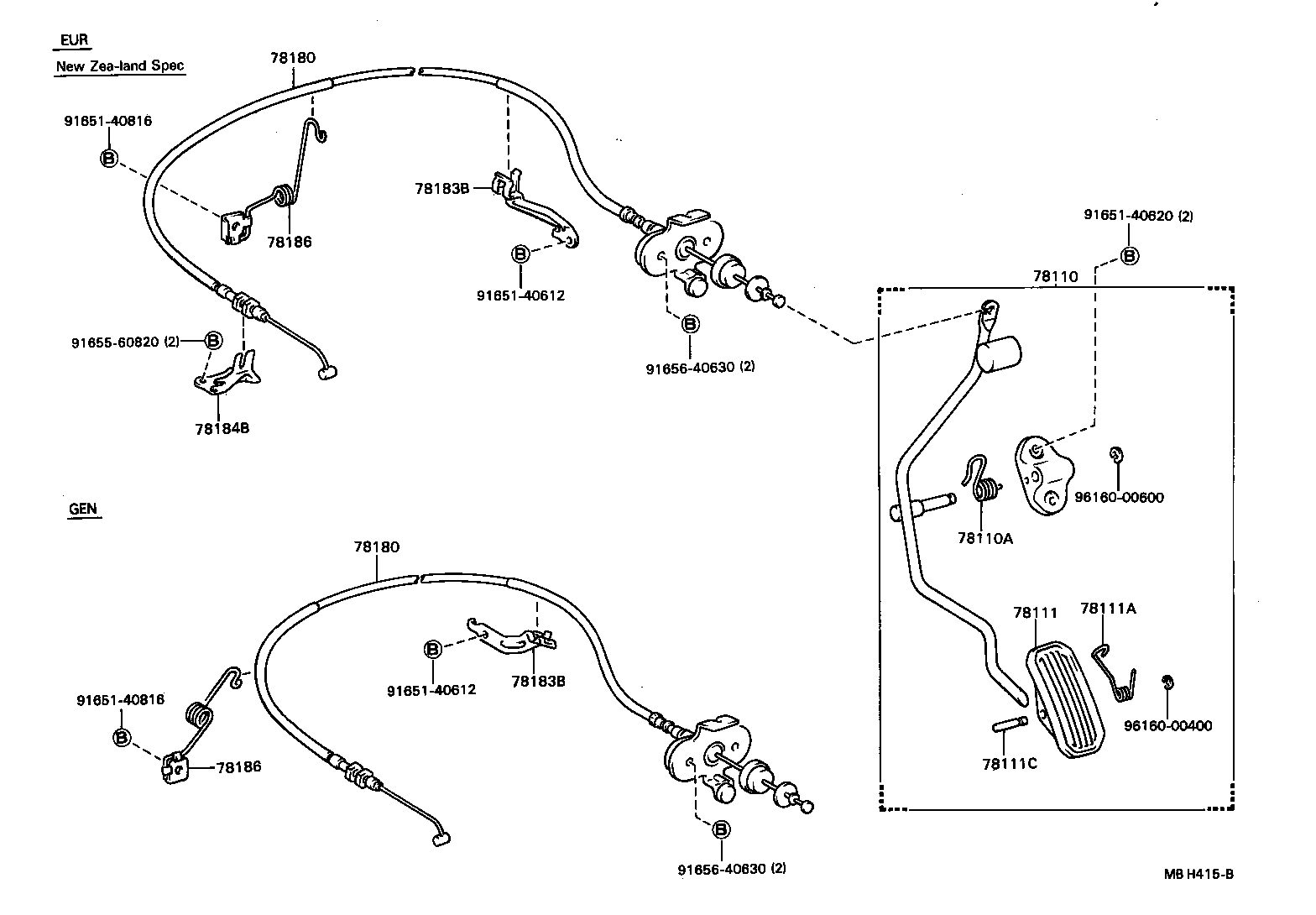

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-12020 |
AE8#,EE80..RHD..(CS,CSX,DX,GL,S,SE,STD,XL) |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-18025 |
EE80..RHD;EE80..LHD..GEN;AE80..ARL,EUR,GEN,SA;AE82,EE80..LHD..(DX,GL,STD)..(EUG,SDZ);AE82..(CS,CSX,DX,GL,S,SE,STD,XL)..(ARL,GEN,SA) |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-32010 |
AE8#,CE80,EE80 |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-20056 |
AE8#,CE80,EE80 |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-05001 |
AE8#,CE80,EE80 |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-12440 |
EE80..RHD..GEN *NZ |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-12440 |
EE80..RHD..GEN *NZ |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-10070 |
EE80..RHD..GEN *NZ |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-12180 |
EE80..RHD..GEN *NZ |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-12180 |
EE80..RHD..GEN *NZ |
1 | ||
| Common parts | ||||
| 91651-40612 | ||||
| 91651-40620 | ||||
| 91651-40816 | ||||
| 91655-60820 | ||||
| 91656-40630 | ||||
| 96160-00400 | ||||
| 96160-00600 | ||||
