EE80R-EEHDS (1984)
Toyota Corolla Sed/Lb
Production
Oct 1984
-
Apr 1987
Engine
2EL
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8410- )EE80..3FC

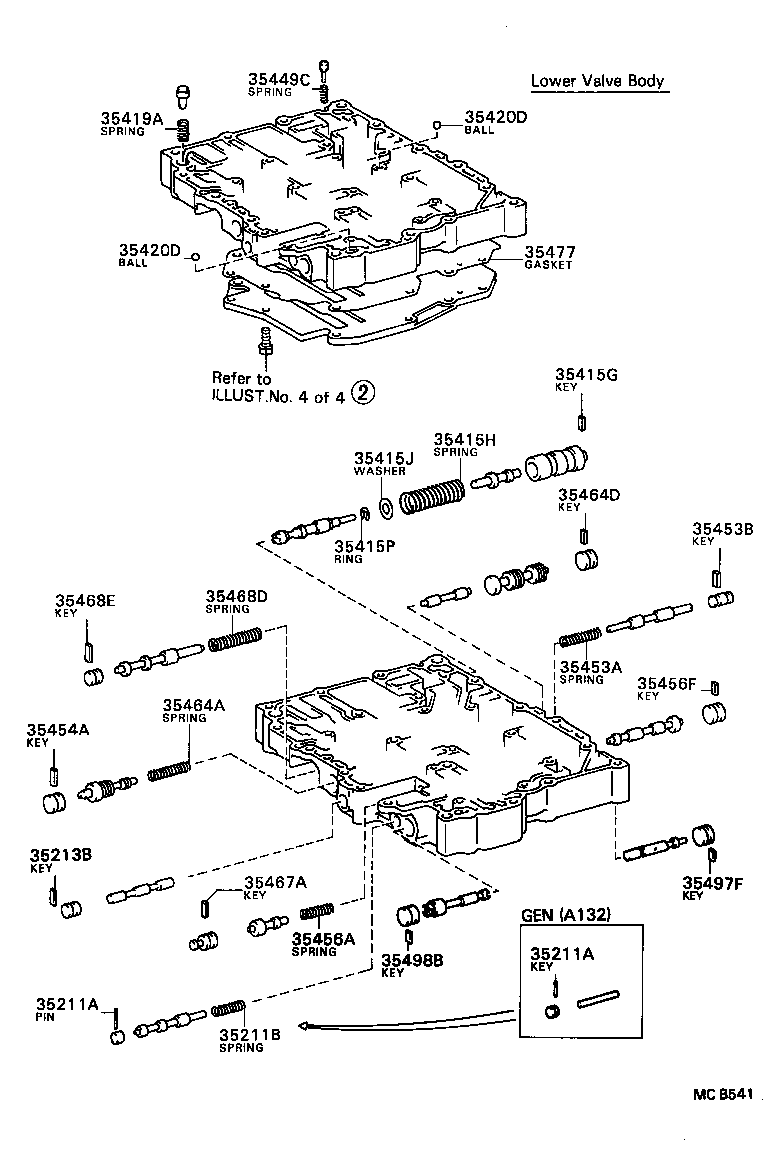

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35211A - PIN, STRAIGHT (FOR LOCK UP SIGNAL VALVE) | ||||
| 90250-02013 |
AE8#,EE80..3FC |
1 | ||
| 35211A - PIN, STRAIGHT (FOR LOCK UP SIGNAL VALVE) | ||||
| 90250-02013 |
AE8#,EE80..3FC |
1 | ||
| 35415G - KEY, STRAIGHT (FOR PRIMARY REGULATOR VALVE) | ||||
| 90282-03001 |
AE8#,EE80..3FC |
1 | ||
| 35415H - SPRING, COMPRESSION (FOR PRIMARY REGULATOR VALVE) | ||||
| 90501-16065 |
AE8#,EE80..3FC |
1 | ||
| 35415J - WASHER (FOR PRIMARY REGULATOR VALVE) | ||||
| 94614-10600 |
AE8#,EE80..3FC |
1 | ||
| 90201-06013 |
AE8#,EE80..3FC |
1 | ||
| 35415P - RING, E (FOR PRIMARY REGULATOR VALVE) | ||||
| 90523-06004 |
AE8#,EE80..3FC |
4 | ||
| 35419A - SPRING, COMPRESSION (FOR CHECK VALVE) | ||||
| 90501-10056 |
AE8#,EE80..3FC |
1 | ||
| 35420D - BALL (FOR LOWER VALVE BODY) | ||||
| 35495-22010 |
AE8#,EE80..3FC OD=5.535,RUBBER |
3 | ||
| 35420D - BALL (FOR LOWER VALVE BODY) | ||||
| 35495-22010 |
AE8#,EE80..3FC OD=5.535,RUBBER |
3 | ||
| 35449C - SPRING, COMPRESSION (FOR VALVE PRESSURE RELIEF) | ||||
| 90501-09032 |
AE8#,EE80..ATM |
1 | ||
| 35453B - KEY, STRAIGHT (FOR DETENT REGULATOR VALVE) | ||||
| 90282-03002 |
AE8#,EE80..ATM |
1 | ||
| 35454A - KEY, STRAIGHT (FOR LOW COAST SHIFT VALVE) | ||||
| 90282-03001 |
AE8#,EE80..3FC |
1 | ||
| 35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE) | ||||
| 90501-06027 |
AE8#,EE80..ATM |
1 | ||
| 35456F - KEY, STRAIGHT (FOR 2-3 SHIFT VALVE) | ||||
| 90282-03004 |
AE8#,EE80..3FC |
1 | ||
| 35464A - SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE) | ||||
| 90501-06025 |
AE8#,EE80..ATM |
1 | ||
| 35464D - KEY, STRAIGHT (FOR 1-2 SHIFT VALVE) | ||||
| 90282-03001 |
AE8#,EE80..3FC |
1 | ||
| 35467A - KEY, STRAIGHT (FOR INTERMEDIATE SHIFT VALVE) | ||||
| 90282-03002 |
AE8#,EE80..3FC |
1 | ||
| 35468D - SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE) | ||||
| 90501-14059 |
AE8#,EE80..3FC |
1 | ||
| 35468E - KEY, STRAIGHT (FOR SECONDARY REGULATOR VALVE) | ||||
| 90282-03002 |
AE8#,EE80..3FC |
1 | ||
