EE80R-EEHDS (1984)

Toyota Corolla Sed/Lb

Production Oct 1984 - Apr 1987
Engine 2EL
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )2EL..GEN,SA,SAA

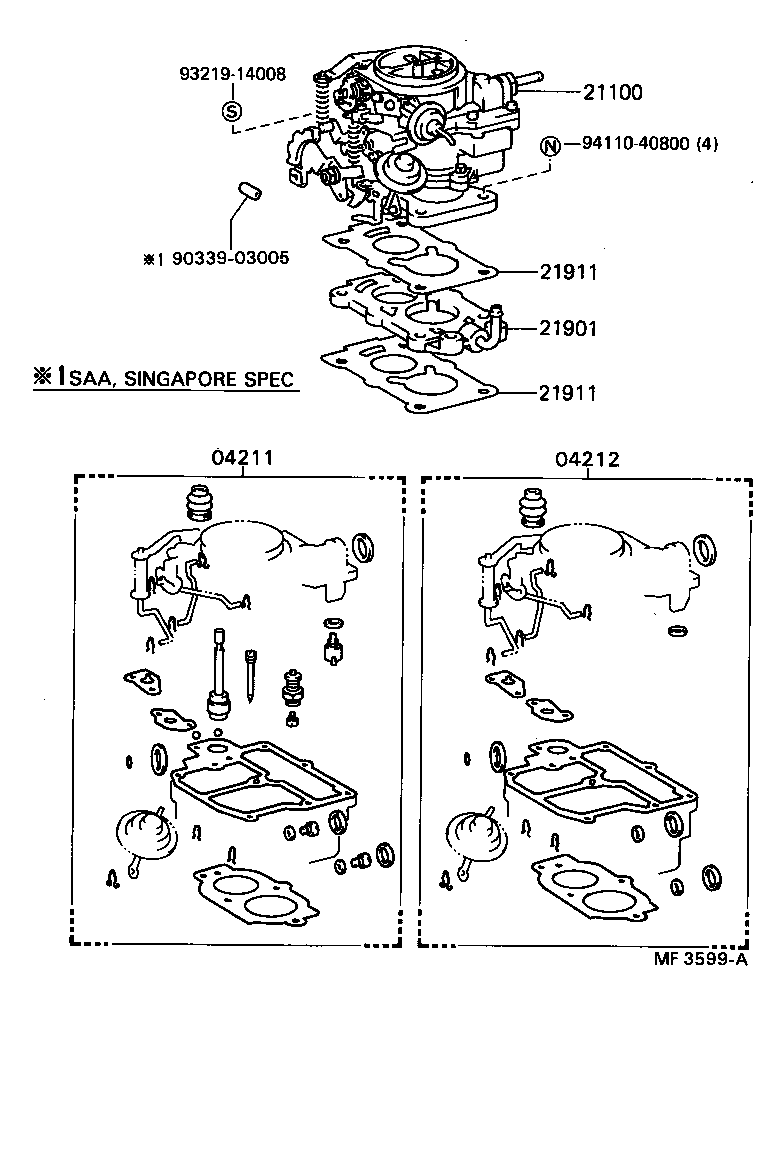

Click highlighted areas on diagram

diagram 04211 04212 21100 21901 21911 21911 9033903005 9321914008 9411040800
Part # Description Qty Price
21100 - CARBURETOR ASSY
21100-11170

2EL..EE80..3FC..GEN

 1
21100-11171

2EL..EE80..3FC..GEN

 1
Common parts
90339-03005
93219-14008
94110-40800
