EE80L-ELHDS (1984)

Toyota Corolla Sed/Lb

Production Oct 1984 - Apr 1987
Engine 2EL
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8305-8505) ; (8505-8605)ARL,SA

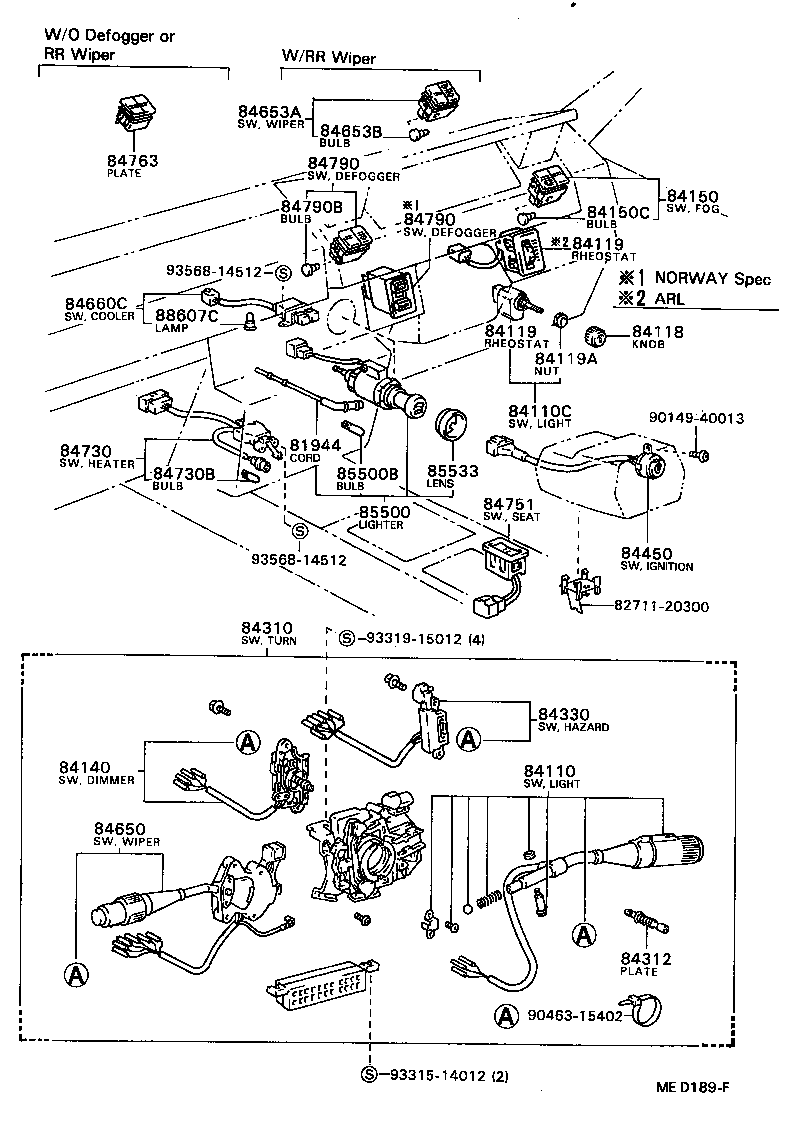

Click highlighted areas on diagram

diagram 81944 8271120300 84110 84110C 84118 84119 84119 84119A 84140 84150 84150C 84310 84312 84330 84450 84650 84653A 84653B 84660C 84730 84730B 84751 84763 84790 84790 84790B 85500 85500B 85533 88607C 9014940013 9046315402 9331514012 9331915012 9356814512 9356814512
Part # Description Qty Price
81944 - CORD, OPTICAL FIBER
81944-12010

AE8#,CE80,EE80

 1
84110 - SWITCH ASSY, LIGHT CONTROL, NO.1
84112-19525

AE8#,CE80,EE80..LHD

 1
84118 - KNOB, LIGHT CONTROL RHEOSTAT
84118-20011

AE8#,CE80,EE80..EUR,GEN,SAA

 1
84119 - RHEOSTAT, LIGHT CONTROL
84119-12070

AE8#,CE80,EE80..EUR,GEN,SAA

 1
84119 - RHEOSTAT, LIGHT CONTROL
84119-12070

AE8#,CE80,EE80..EUR,GEN,SAA

 1
84119A - BOLT OR NUT, RHEOSTAT CONTROL SET
90984-01007

AE8#,CE80,EE80..EUR,GEN,SAA

 1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-19265

AE8#,CE80,EE80..LHD

 1
84310 - SWITCH ASSY, TURN SIGNAL
84310-12680

AE8#,CE80,EE80..LHD..(DX,GL,GT,XL)

W/*IW

 1
84310-12670

AE8#,CE80,EE80..LHD..(DX,STD,XL)

 1
84312 - PLATE, HORN CONTACT
84312-32020

AE8#,CE80,EE80..LHD

 1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-19235

AE8#,CE80,EE80..LHD

 1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-12120

AE8#,CE80,EE80

 1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-80013

AE8#,CE80,EE80..LHD..(DX,GL,GT,XL)

W/*IW

 1
84652-80012

AE8#,CE80,EE80..LHD..(DX,STD,XL)

 1
84653A - SWITCH, REAR WIPER
84653-12090

AE8#,EE80..(3DS,5D,5DS)..(GEN,SAA)

 1
84660C - SWITCH, COOLER
84660-12060

AE8#,CE80,EE80..LHD..(GEN,SAA)

 1
84730 - SWITCH ASSY, HEATER BLOWER
84732-12110

AE8#,CE80,EE80..EUR,GEN,SA,SAA

 1
84730B - BULB, HEATER BLOWER SWITCH
90981-11014

AE8#,CE80,EE80..EUR,GEN,SA,SAA

14V 1.4W,12V 1.4W

 1
84763 - PLATE, SWITCH
84763-12030

AE8#,CE80,EE80..GEN,SAA

 2
84790 - SWITCH ASSY, REAR WINDOW DEFOGGER
84790-12140

AE8#,CE80,EE80..EUR,GEN,SAA

 1
84790 - SWITCH ASSY, REAR WINDOW DEFOGGER
84790-12140

AE8#,CE80,EE80..EUR,GEN,SAA

 1
84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH)
84999-10170

AE8#,CE80,EE80..EUR,GEN,SAA

12V 1.12W,12V 1.12W

 1
85500B - BULB, CIGARETTE LIGHTER
90981-11014

AE8#,CE80,EE80

14V 1.4W,12V 1.4W

 1
85533 - LENS, CIGARETTE LIGHTER INDICATOR
85533-20011

AE8#,CE80,EE80..EUR,GEN,SA,SAA

 1
88607C - LAMP SUB-ASSY, INDICATOR
88607-12010

AE8#,CE80,EE80..ARL,GEN,SA,SAA

 2
Common parts
82711-20300
90149-40013
90463-15402
93315-14012
93319-15012
93568-14512

(8410- )EE80

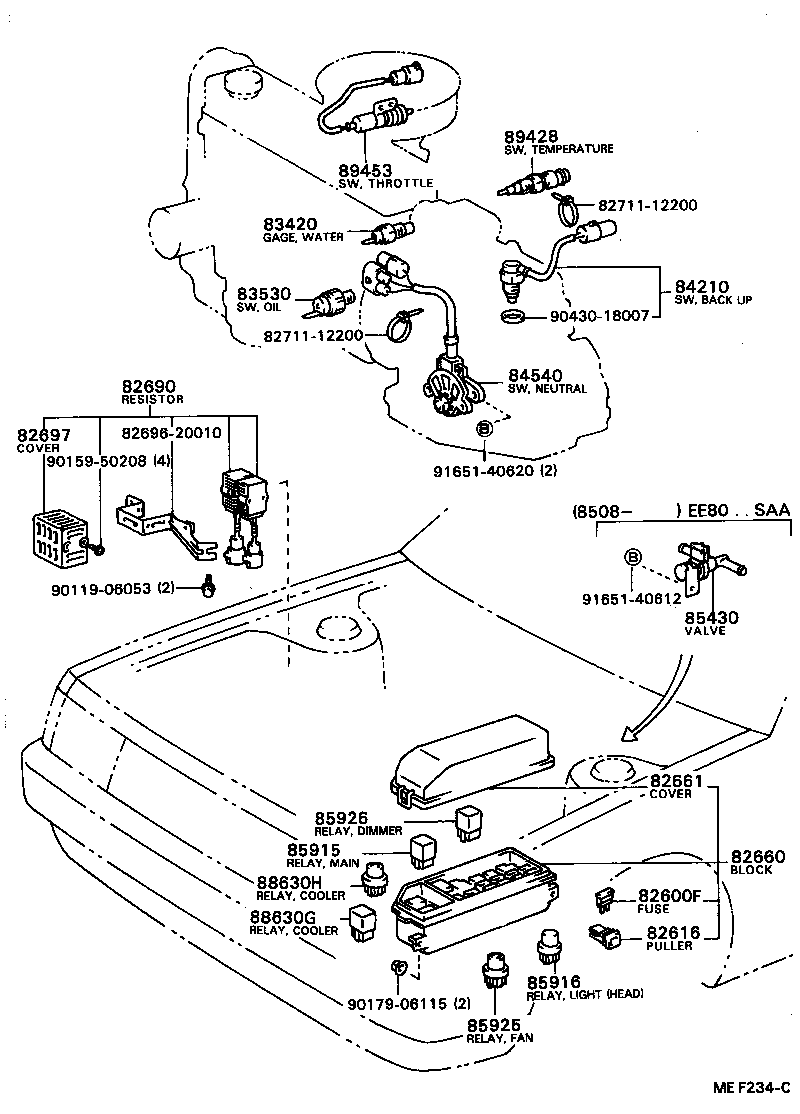

Click highlighted areas on diagram

diagram 82600F 82616 82660 82661 82690 8269620010 82697 8271112200 8271112200 83420 83530 84210 84540 85430 85915 85916 85925 85926 88630G 88630H 89428 89453 9011906053 9015950208 9017906115 9043018007 9165140612 9165140620
Part # Description Qty Price
82600F - FUSE, FUSE BLOCK
90982-07011

AE8#,CE80,EE80

30A,GREEN,30A

 1
90982-09003

AE8#,CE80,EE80

15A,15A

 11
90982-09002

AE8#,CE80,EE80

10A,10A

 12
90982-09004

AE8#,CE80,EE80

20A,YELLOW,20A

 2
90982-09005

AE8#,CE80,EE80

7.5A,7.5A

 7
82616 - PULLER, FUSE
82616-12020

AE8#,CE80,EE80

 1
82661 - COVER, RELAY BLOCK, NO.1
82661-12100

AE8#,CE80,EE80..LHD

COWL SIDE

 1
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-16020

EE80

 1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-12040

AE8#,EE80

 1
83530-14040

AE8#,EE80

 1
84540 - SWITCH ASSY, NEUTRAL START
84540-12160

AE8#,EE80..ATM

 1
85915 - RELAY, MAIN
85913-30020

AE8#,CE80,EE80

 1
85916 - RELAY, LIGHT CONTROL
90987-01003

AE8#,CE80,EE80

TAIL & HEAD

 2
85925 - RELAY, RADIATOR FAN
90987-03001

AE8#,CE80,EE80

 1
88630G - RELAY ASSY, COOLER
88630-32010

AE8#,CE80,EE80..ARL,GEN,SA,SAA

 1
88630H - RELAY ASSY, COOLER
90987-02004

AE8#,CE80,EE80..ARL,GEN,SA,SAA

 1
Common parts
82696-20010
82711-12200
90119-06053
90159-50208
90179-06115
90430-18007
91651-40612
91651-40620
