EE80L-EHMNS (1984)

Toyota Corolla Sed/Lb

Production Oct 1984 - Apr 1987
Engine 2EL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )5DS

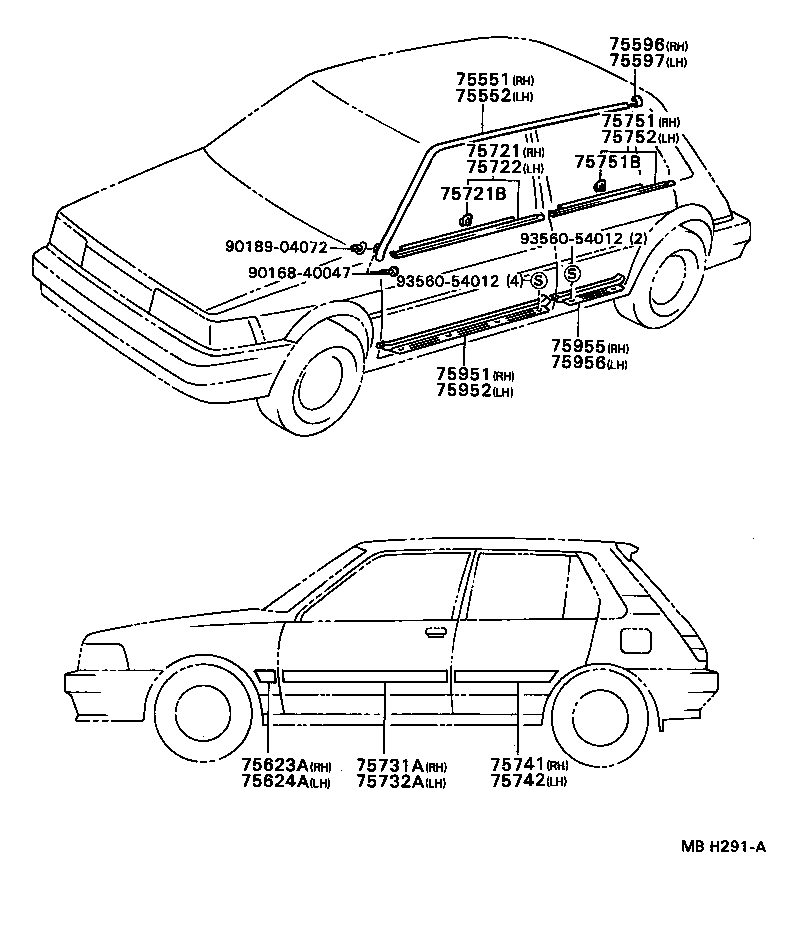

Click highlighted areas on diagram

diagram 75551 75552 75596 75597 75623A 75624A 75721 75721B 75722 75731A 75732A 75741 75742 75751 75751B 75752 75951 75952 75955 75956 9016840047 9018904072 9356054012 9356054012
Part # Description Qty Price
75551 - MOULDING, ROOF DRIP SIDE FINISH, RH
75551-19165

AE8#,CE80,EE80..5D

 1
75552 - MOULDING, ROOF DRIP SIDE FINISH, LH
75552-19165

AE8#,CE80,EE80..5D

 1
75721 - MOULDING, FRONT DOOR BELT, RH
75710-12360

AE8#,EE80..(4DS,5D,5DS)..(GL,GT)..(GEN,SAA)

 1
75721B - CLIP(FOR FRONT DOOR BELT MOULDING SET)
68211-12090

AE8#,EE80..(4DS,5D,5DS)..(GL,GT)..(GEN,SAA)

 12
75722 - MOULDING, FRONT DOOR BELT, LH
75720-12360

AE8#,EE80..(4DS,5D,5DS)..(GL,GT)..(GEN,SAA)

 1
75741 - MOULDING, REAR DOOR, OUTSIDE RH
75741-1221101

AE82,CE80,EE80..(4DS,5D,5DS)..(DX,GL,STD,XL)..(EUR,GEN,SAA)

BLACK,BLACK

 1
75742 - MOULDING, REAR DOOR, OUTSIDE LH
75742-1220101

AE82,CE80,EE80..(4DS,5D,5DS)..(DX,GL,STD,XL)..(EUR,GEN,SAA)

BLACK,BLACK

 1
75751 - MOULDING, REAR DOOR BELT, RH
75730-12060

AE8#,EE80..(4DS,5D,5DS)..(GL,GT)..(GEN,SAA)

 1
75751B - CLIP (FOR REAR DOOR BELT MOULDING SET)
68211-12080

AE8#,EE80..(4DS,5D,5DS)..(GL,GT)..(GEN,SAA)

 8
75752 - MOULDING, REAR DOOR BELT, LH
75740-12150

AE8#,EE80..(4DS,5D,5DS)..(GL,GT)..(GEN,SAA)

 1
75951 - PLATE, FRONT DOOR SCUFF, OUTSIDE RH
67913-1214003

AE8#,CE80,EE80..4DS,5D,5DS

GRAY,GRAY,TRIM1#

 1
67913-1214004

AE82..4DS..4FC..ARL;AE8#,CE80,EE80..(4DS,5D,5DS)..(DX,GL,SE,STD,XL)

BLUE,BLUE,TRIM8#

 1
75952 - PLATE, FRONT DOOR SCUFF, OUTSIDE LH
67913-1214003

AE8#,CE80,EE80..4DS,5D,5DS

GRAY,GRAY,TRIM1#

 1
67913-1214004

AE82..4DS..4FC..ARL;AE8#,CE80,EE80..(4DS,5D,5DS)..(DX,GL,SE,STD,XL)

BLUE,BLUE,TRIM8#

 1
75955 - PLATE, REAR DOOR SCUFF, OUTSIDE RH
67917-1205003

AE8#,CE80,EE80..4DS,5D,5DS

GRAY,GRAY,TRIM1#

 1
67917-1205004

AE82..4DS..4FC..ARL;AE8#,CE80,EE80..(4DS,5D,5DS)..(DX,GL,SE,STD,XL)

BLUE,BLUE,TRIM8#

 1
75956 - PLATE, REAR DOOR SCUFF, OUTSIDE LH
67917-1205003

AE8#,CE80,EE80..4DS,5D,5DS

GRAY,GRAY,TRIM1#

 1
67917-1205004

AE82..4DS..4FC..ARL;AE8#,CE80,EE80..(4DS,5D,5DS)..(DX,GL,SE,STD,XL)

BLUE,BLUE,TRIM8#

 1
Common parts
90168-40047
90189-04072
93560-54012
