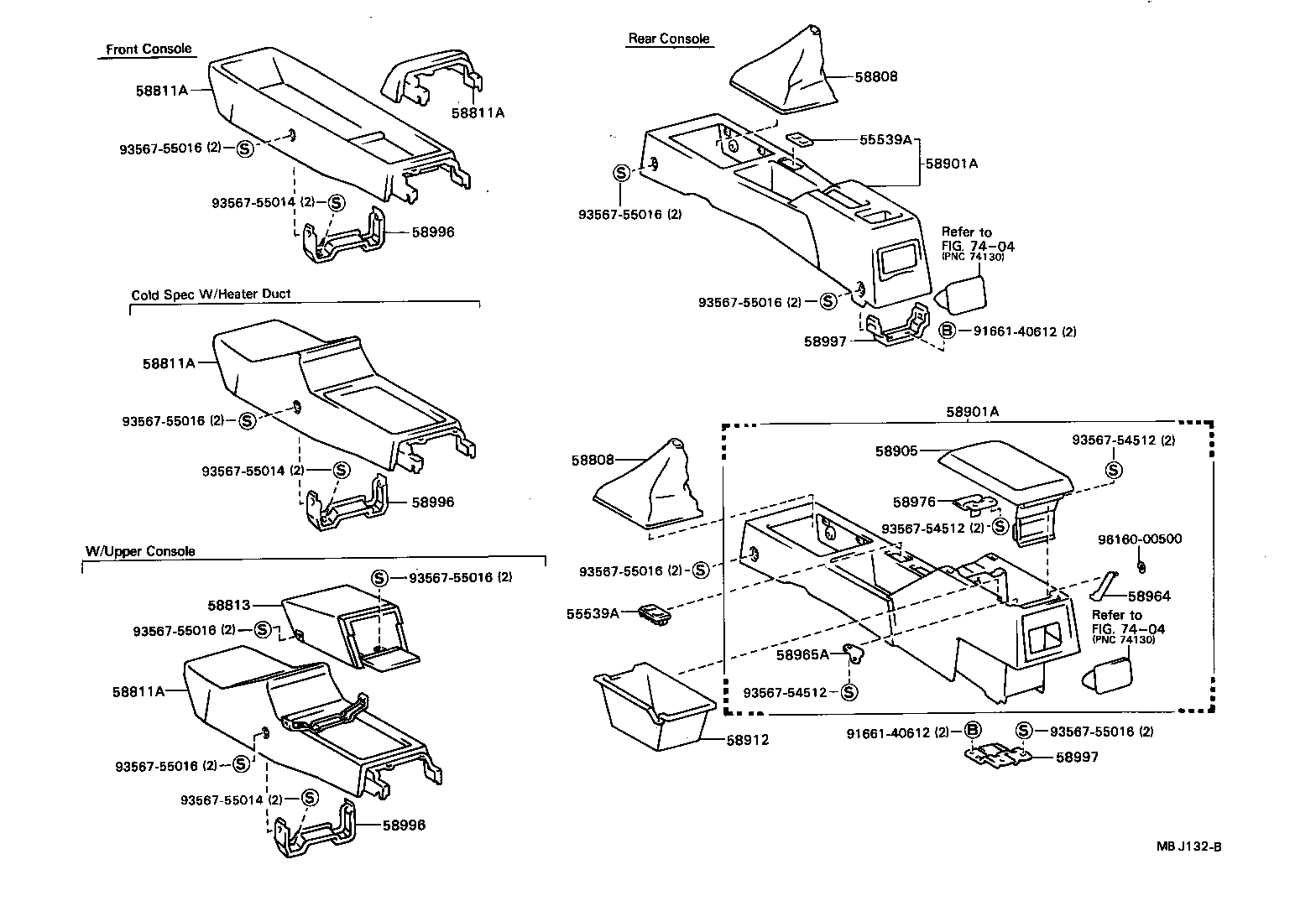

EE80L-EHMNS (1984)
Toyota Corolla Sed/Lb
(8305-8505) ; (8505- )ARL,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-1403104 |
AE8#,EE80..(4DS,5D)..GL..(GEN,SAA) BLUE,BLUE,TRIM8# |
1 | ||
| 55539-1403113 |
AE8#,EE80..(GL,GT)..(GEN,SAA) GRAY,GRAY,TRIM1# |
1 | ||
| 55539-1403113 |
AE8#,CE80,EE80..(CS,S,STD,XL)..(ARL,GEN,SAA) GRAY,GRAY,TRIM1# |
1 | ||
| 55539-1403104 |
AE82,EE80..(4DS,5D)..GL..GEN BLUE,BLUE,TRIM8# |
2 | ||
| 55539-1403113 |
AE82,EE80..(GL,GT)..GEN GRAY,GRAY,TRIM1# |
2 | ||
| 55539-1403126 |
AE8#,CE80,EE80..(CS,S,STD,XL)..(ARL,GEN,SAA) BROWN,BROWN,TRIM4# |
1 | ||
| 55539-1403126 |
AE82,EE80..(GL,GT)..GEN BROWN,BROWN,TRIM4# |
2 | ||
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-1403104 |
AE8#,EE80..(4DS,5D)..GL..(GEN,SAA) BLUE,BLUE,TRIM8# |
1 | ||
| 55539-1403113 |
AE8#,EE80..(GL,GT)..(GEN,SAA) GRAY,GRAY,TRIM1# |
1 | ||
| 55539-1403113 |
AE8#,CE80,EE80..(CS,S,STD,XL)..(ARL,GEN,SAA) GRAY,GRAY,TRIM1# |
1 | ||
| 55539-1403104 |
AE82,EE80..(4DS,5D)..GL..GEN BLUE,BLUE,TRIM8# |
2 | ||
| 55539-1403113 |
AE82,EE80..(GL,GT)..GEN GRAY,GRAY,TRIM1# |
2 | ||
| 55539-1403126 |
AE8#,CE80,EE80..(CS,S,STD,XL)..(ARL,GEN,SAA) BROWN,BROWN,TRIM4# |
1 | ||
| 55539-1403126 |
AE82,EE80..(GL,GT)..GEN BROWN,BROWN,TRIM4# |
2 | ||
| 58808 - COVER SUB-ASSY, SHIFTING HOLE | ||||
| 58808-1208016 |
AE8#,CE80,EE80..MTM..(EUR,GEN,SAA) BROWN,BROWN,TRIM4# |
1 | ||
| 58808-1208013 |
AE8#,CE80,EE80..MTM..(EUR,GEN,SAA) GRAY,GRAY,TRIM1# |
1 | ||
| 58808-1208014 |
AE8#,CE80,EE80..(4DS,5D)..MTM..(EUR,GEN,SAA) BLUE,BLUE,TRIM8# |
1 | ||
| 58808-1208016 |
AE82,CE80,EE80..MTM..(EUR,GEN,SAA) BROWN,BROWN,TRIM4# |
1 | ||
| 58808-1208013 |
AE82,CE80,EE80..MTM..(EUR,GEN,SAA) GRAY,GRAY,TRIM1# |
1 | ||
| 58808-1208014 |
AE82,CE80,EE80..(4DS,5D)..MTM..(DX,GL,STD,XL)..(EUR,GEN,SAA) BLUE,BLUE,TRIM8# |
1 | ||
| 58808 - COVER SUB-ASSY, SHIFTING HOLE | ||||
| 58808-1208016 |
AE8#,CE80,EE80..MTM..(EUR,GEN,SAA) BROWN,BROWN,TRIM4# |
1 | ||
| 58808-1208013 |
AE8#,CE80,EE80..MTM..(EUR,GEN,SAA) GRAY,GRAY,TRIM1# |
1 | ||
| 58808-1208014 |
AE8#,CE80,EE80..(4DS,5D)..MTM..(EUR,GEN,SAA) BLUE,BLUE,TRIM8# |
1 | ||
| 58808-1208016 |
AE82,CE80,EE80..MTM..(EUR,GEN,SAA) BROWN,BROWN,TRIM4# |
1 | ||
| 58808-1208013 |
AE82,CE80,EE80..MTM..(EUR,GEN,SAA) GRAY,GRAY,TRIM1# |
1 | ||
| 58808-1208014 |
AE82,CE80,EE80..(4DS,5D)..MTM..(DX,GL,STD,XL)..(EUR,GEN,SAA) BLUE,BLUE,TRIM8# |
1 | ||
| 58811A - BOX, CONSOLE, FRONT | ||||
| 58811-1233004 |
AE8#,CE80,EE80..(4DS,5D)..(DX,GL,XL)..(EUR,GEN) LONG TRAY,BLUE,BLUE,TRIM8# |
1 | ||
| 58811-1233003 |
AE8#,CE80,EE80..(DX,GL,XL)..(EUR,GEN) LONG TRAY,GRAY,GRAY,TRIM1# |
1 | ||
| 58802-1203003 |
AE82,CE80,EE80..(DX,GL,XL)..(EUR,GEN) W/UPR CONSOLE,GRAY,GRAY,TRIM1# |
1 | ||
| 58811-1233006 |
AE8#,CE80,EE80..(DX,GL,XL)..(EUR,GEN) LONG TRAY,BROWN,BROWN,TRIM4# |
1 | ||
| 58802-1203006 |
AE82,CE80,EE80..(DX,GL,XL)..(EUR,GEN) W/UPR CONSOLE,BROWN,BROWN,TRIM4# |
1 | ||
| 58802-1203004 |
AE82,CE80,EE80..(4DS,5D)..(DX,GL,XL)..(EUR,GEN) W/UPR CONSOLE,BLUE,BLUE,TRIM8# |
1 | ||
| 58811A - BOX, CONSOLE, FRONT | ||||
| 58811-1233004 |
AE8#,CE80,EE80..(4DS,5D)..(DX,GL,XL)..(EUR,GEN) LONG TRAY,BLUE,BLUE,TRIM8# |
1 | ||
| 58811-1233003 |
AE8#,CE80,EE80..(DX,GL,XL)..(EUR,GEN) LONG TRAY,GRAY,GRAY,TRIM1# |
1 | ||
| 58802-1203003 |
AE82,CE80,EE80..(DX,GL,XL)..(EUR,GEN) W/UPR CONSOLE,GRAY,GRAY,TRIM1# |
1 | ||
| 58811-1233006 |
AE8#,CE80,EE80..(DX,GL,XL)..(EUR,GEN) LONG TRAY,BROWN,BROWN,TRIM4# |
1 | ||
| 58802-1203006 |
AE82,CE80,EE80..(DX,GL,XL)..(EUR,GEN) W/UPR CONSOLE,BROWN,BROWN,TRIM4# |
1 | ||
| 58802-1203004 |
AE82,CE80,EE80..(4DS,5D)..(DX,GL,XL)..(EUR,GEN) W/UPR CONSOLE,BLUE,BLUE,TRIM8# |
1 | ||
| 58811A - BOX, CONSOLE, FRONT | ||||
| 58811-1233004 |
AE8#,CE80,EE80..(4DS,5D)..(DX,GL,XL)..(EUR,GEN) LONG TRAY,BLUE,BLUE,TRIM8# |
1 | ||
| 58811-1233003 |
AE8#,CE80,EE80..(DX,GL,XL)..(EUR,GEN) LONG TRAY,GRAY,GRAY,TRIM1# |
1 | ||
| 58802-1203003 |
AE82,CE80,EE80..(DX,GL,XL)..(EUR,GEN) W/UPR CONSOLE,GRAY,GRAY,TRIM1# |
1 | ||
| 58811-1233006 |
AE8#,CE80,EE80..(DX,GL,XL)..(EUR,GEN) LONG TRAY,BROWN,BROWN,TRIM4# |
1 | ||
| 58802-1203006 |
AE82,CE80,EE80..(DX,GL,XL)..(EUR,GEN) W/UPR CONSOLE,BROWN,BROWN,TRIM4# |
1 | ||
| 58802-1203004 |
AE82,CE80,EE80..(4DS,5D)..(DX,GL,XL)..(EUR,GEN) W/UPR CONSOLE,BLUE,BLUE,TRIM8# |
1 | ||
| 58811A - BOX, CONSOLE, FRONT | ||||
| 58811-1233004 |
AE8#,CE80,EE80..(4DS,5D)..(DX,GL,XL)..(EUR,GEN) LONG TRAY,BLUE,BLUE,TRIM8# |
1 | ||
| 58811-1233003 |
AE8#,CE80,EE80..(DX,GL,XL)..(EUR,GEN) LONG TRAY,GRAY,GRAY,TRIM1# |
1 | ||
| 58802-1203003 |
AE82,CE80,EE80..(DX,GL,XL)..(EUR,GEN) W/UPR CONSOLE,GRAY,GRAY,TRIM1# |
1 | ||
| 58811-1233006 |
AE8#,CE80,EE80..(DX,GL,XL)..(EUR,GEN) LONG TRAY,BROWN,BROWN,TRIM4# |
1 | ||
| 58802-1203006 |
AE82,CE80,EE80..(DX,GL,XL)..(EUR,GEN) W/UPR CONSOLE,BROWN,BROWN,TRIM4# |
1 | ||
| 58802-1203004 |
AE82,CE80,EE80..(4DS,5D)..(DX,GL,XL)..(EUR,GEN) W/UPR CONSOLE,BLUE,BLUE,TRIM8# |
1 | ||
| 58813 - BOX, CONSOLE, UPPER | ||||
| 58810-1246004 |
AE82,CE80,EE80..(4DS,5D)..(DX,GL,XL)..(EUR,GEN) BLUE,BLUE,TRIM8# |
1 | ||
| 58810-1246003 |
AE82,CE80,EE80..(DX,GL,XL)..(EUR,GEN) GRAY,GRAY,TRIM1# |
1 | ||
| 58810-1246006 |
AE82,CE80,EE80..(DX,GL,XL)..(EUR,GEN) BROWN,BROWN,TRIM4# |
1 | ||
| 58901A - BOX SUB-ASSY, CONSOLE, REAR | ||||
| 58901-1209003 |
AE8#,CE80,EE80..(CS,DX,S,STD,XL)..(ARL,GEN,SAA) GRAY,GRAY,TRIM1# |
1 | ||
| 58901-1209004 |
AE8#,CE80,EE80..(4DS,5D)..(CS,DX,S,STD,XL)..(ARL,GEN,SAA) BLUE,BLUE,TRIM8# |
1 | ||
| 58910-1201003 |
AE8#,EE80..(GL,GT)..(GEN,SAA) GRAY,GRAY,TRIM1# |
1 | ||
| 58910-1201004 |
AE8#,EE80..(4DS,5D)..GL..(GEN,SAA) BLUE,BLUE,TRIM8# |
1 | ||
| 58901-1209106 |
AE8#,CE80,EE80..(CS,S,STD,XL)..(ARL,GEN,SAA) BROWN,BROWN,TRIM4# |
1 | ||
| 58901-1213006 |
AE82,EE80..(GL,GT)..GEN BROWN,BROWN,TRIM4# |
1 | ||
| 58901-1209103 |
AE8#,CE80,EE80..(CS,S,STD,XL)..(ARL,GEN,SAA) GRAY,GRAY,TRIM1# |
1 | ||
| 58901-1213003 |
AE82,EE80..(GL,GT)..GEN GRAY,GRAY,TRIM1# |
1 | ||
| 58901-1213004 |
AE82,EE80..(4DS,5D)..GL..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 58901A - BOX SUB-ASSY, CONSOLE, REAR | ||||
| 58901-1209003 |
AE8#,CE80,EE80..(CS,DX,S,STD,XL)..(ARL,GEN,SAA) GRAY,GRAY,TRIM1# |
1 | ||
| 58901-1209004 |
AE8#,CE80,EE80..(4DS,5D)..(CS,DX,S,STD,XL)..(ARL,GEN,SAA) BLUE,BLUE,TRIM8# |
1 | ||
| 58910-1201003 |
AE8#,EE80..(GL,GT)..(GEN,SAA) GRAY,GRAY,TRIM1# |
1 | ||
| 58910-1201004 |
AE8#,EE80..(4DS,5D)..GL..(GEN,SAA) BLUE,BLUE,TRIM8# |
1 | ||
| 58901-1209106 |
AE8#,CE80,EE80..(CS,S,STD,XL)..(ARL,GEN,SAA) BROWN,BROWN,TRIM4# |
1 | ||
| 58901-1213006 |
AE82,EE80..(GL,GT)..GEN BROWN,BROWN,TRIM4# |
1 | ||
| 58901-1209103 |
AE8#,CE80,EE80..(CS,S,STD,XL)..(ARL,GEN,SAA) GRAY,GRAY,TRIM1# |
1 | ||
| 58901-1213003 |
AE82,EE80..(GL,GT)..GEN GRAY,GRAY,TRIM1# |
1 | ||
| 58901-1213004 |
AE82,EE80..(4DS,5D)..GL..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58951-1208004 |
AE8#,EE80..(4DS,5D)..GL..(GEN,SAA) BLUE,BLUE,TRIM8# |
1 | ||
| 58951-1208003 |
AE8#,EE80..(GL,GT)..(GEN,SAA) GRAY,GRAY,TRIM1# |
1 | ||
| 58905-1206004 |
AE82,EE80..(4DS,5D)..LHD..GL..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 58905-1206003 |
AE82,EE80..LHD..(GL,GT)..GEN GRAY,GRAY,TRIM1# |
1 | ||
| 58905-1206006 |
AE82,EE80..LHD..(GL,GT)..GEN BROWN,BROWN,TRIM4# |
1 | ||
| 58912 - BOX, REAR CONSOLE, NO.2 | ||||
| 58912-1201003 |
AE8#,EE80..(GL,GT)..(GEN,SAA) GRAY,GRAY,TRIM1# |
1 | ||
| 58912-1201004 |
AE8#,EE80..(4DS,5D)..GL..(GEN,SAA) BLUE,BLUE,TRIM8# |
1 | ||
| 58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2 | ||||
| 58965-12010 |
AE8#,EE80..(GL,GT)..(GEN,SAA) |
1 | ||
| 58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK | ||||
| 58976-20010 |
AE8#,EE80..(GL,GT)..(GEN,SAA) |
1 | ||
| 58976-22020 |
AE82,EE80..(GL,GT)..GEN |
1 | ||
| 58996 - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-12050 |
AE8#,CE80,EE80..(DX,GL,GT,XL)..GEN |
1 | ||
| 58996 - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-12050 |
AE8#,CE80,EE80..(DX,GL,GT,XL)..GEN |
1 | ||
| 58996 - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-12050 |
AE8#,CE80,EE80..(DX,GL,GT,XL)..GEN |
1 | ||
| 58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3 | ||||
| 58997-12030 |
AE8#,EE80..(GL,GT)..(GEN,SAA) |
1 | ||
| 58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3 | ||||
| 58997-12030 |
AE8#,EE80..(GL,GT)..(GEN,SAA) |
1 | ||
| Common parts | ||||
| 91661-40612 | ||||
| 93567-54512 | ||||
| 93567-55014 | ||||
| 93567-55016 | ||||
| 96160-00500 | ||||
| Linked diagrams | ||||
| 7404 | ||||

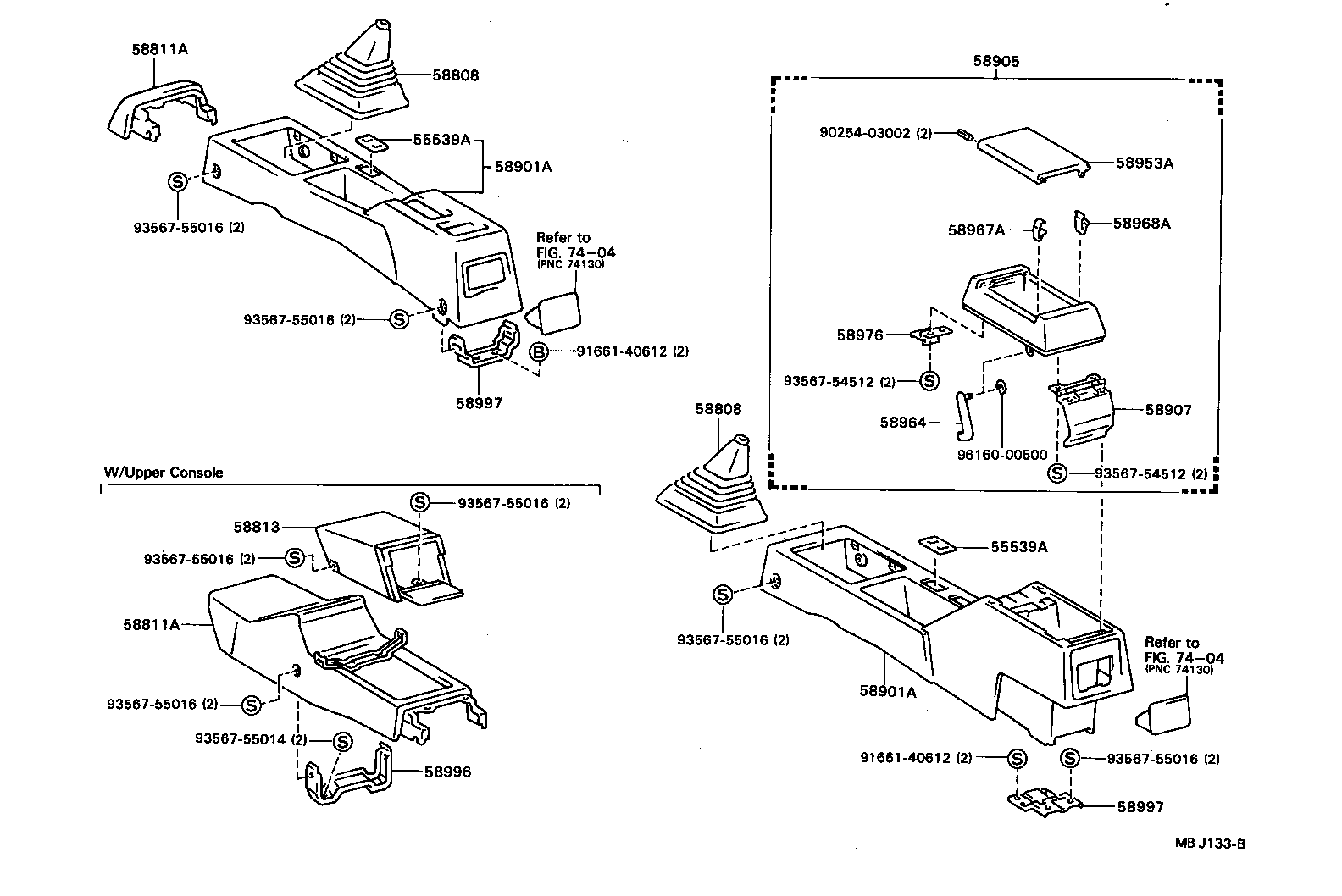

(8505- )EUR,GEN,SAA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-1403104 |
AE8#,EE80..(4DS,5D)..GL..(GEN,SAA) BLUE,BLUE,TRIM8# |
1 | ||
| 55539-1403113 |
AE8#,EE80..(GL,GT)..(GEN,SAA) GRAY,GRAY,TRIM1# |
1 | ||
| 55539-1403113 |
AE8#,CE80,EE80..(CS,S,STD,XL)..(ARL,GEN,SAA) GRAY,GRAY,TRIM1# |
1 | ||
| 55539-1403104 |
AE82,EE80..(4DS,5D)..GL..GEN BLUE,BLUE,TRIM8# |
2 | ||
| 55539-1403113 |
AE82,EE80..(GL,GT)..GEN GRAY,GRAY,TRIM1# |
2 | ||
| 55539-1403126 |
AE8#,CE80,EE80..(CS,S,STD,XL)..(ARL,GEN,SAA) BROWN,BROWN,TRIM4# |
1 | ||
| 55539-1403126 |
AE82,EE80..(GL,GT)..GEN BROWN,BROWN,TRIM4# |
2 | ||
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-1403104 |
AE8#,EE80..(4DS,5D)..GL..(GEN,SAA) BLUE,BLUE,TRIM8# |
1 | ||
| 55539-1403113 |
AE8#,EE80..(GL,GT)..(GEN,SAA) GRAY,GRAY,TRIM1# |
1 | ||
| 55539-1403113 |
AE8#,CE80,EE80..(CS,S,STD,XL)..(ARL,GEN,SAA) GRAY,GRAY,TRIM1# |
1 | ||
| 55539-1403104 |
AE82,EE80..(4DS,5D)..GL..GEN BLUE,BLUE,TRIM8# |
2 | ||
| 55539-1403113 |
AE82,EE80..(GL,GT)..GEN GRAY,GRAY,TRIM1# |
2 | ||
| 55539-1403126 |
AE8#,CE80,EE80..(CS,S,STD,XL)..(ARL,GEN,SAA) BROWN,BROWN,TRIM4# |
1 | ||
| 55539-1403126 |
AE82,EE80..(GL,GT)..GEN BROWN,BROWN,TRIM4# |
2 | ||
| 58808 - COVER SUB-ASSY, SHIFTING HOLE | ||||
| 58808-1208016 |
AE8#,CE80,EE80..MTM..(EUR,GEN,SAA) BROWN,BROWN,TRIM4# |
1 | ||
| 58808-1208013 |
AE8#,CE80,EE80..MTM..(EUR,GEN,SAA) GRAY,GRAY,TRIM1# |
1 | ||
| 58808-1208014 |
AE8#,CE80,EE80..(4DS,5D)..MTM..(EUR,GEN,SAA) BLUE,BLUE,TRIM8# |
1 | ||
| 58808-1208016 |
AE82,CE80,EE80..MTM..(EUR,GEN,SAA) BROWN,BROWN,TRIM4# |
1 | ||
| 58808-1208013 |
AE82,CE80,EE80..MTM..(EUR,GEN,SAA) GRAY,GRAY,TRIM1# |
1 | ||
| 58808-1208014 |
AE82,CE80,EE80..(4DS,5D)..MTM..(DX,GL,STD,XL)..(EUR,GEN,SAA) BLUE,BLUE,TRIM8# |
1 | ||
| 58808 - COVER SUB-ASSY, SHIFTING HOLE | ||||
| 58808-1208016 |
AE8#,CE80,EE80..MTM..(EUR,GEN,SAA) BROWN,BROWN,TRIM4# |
1 | ||
| 58808-1208013 |
AE8#,CE80,EE80..MTM..(EUR,GEN,SAA) GRAY,GRAY,TRIM1# |
1 | ||
| 58808-1208014 |
AE8#,CE80,EE80..(4DS,5D)..MTM..(EUR,GEN,SAA) BLUE,BLUE,TRIM8# |
1 | ||
| 58808-1208016 |
AE82,CE80,EE80..MTM..(EUR,GEN,SAA) BROWN,BROWN,TRIM4# |
1 | ||
| 58808-1208013 |
AE82,CE80,EE80..MTM..(EUR,GEN,SAA) GRAY,GRAY,TRIM1# |
1 | ||
| 58808-1208014 |
AE82,CE80,EE80..(4DS,5D)..MTM..(DX,GL,STD,XL)..(EUR,GEN,SAA) BLUE,BLUE,TRIM8# |
1 | ||
| 58811A - BOX, CONSOLE, FRONT | ||||
| 58811-1233004 |
AE8#,CE80,EE80..(4DS,5D)..(DX,GL,XL)..(EUR,GEN) LONG TRAY,BLUE,BLUE,TRIM8# |
1 | ||
| 58811-1233003 |
AE8#,CE80,EE80..(DX,GL,XL)..(EUR,GEN) LONG TRAY,GRAY,GRAY,TRIM1# |
1 | ||
| 58802-1203003 |
AE82,CE80,EE80..(DX,GL,XL)..(EUR,GEN) W/UPR CONSOLE,GRAY,GRAY,TRIM1# |
1 | ||
| 58811-1233006 |
AE8#,CE80,EE80..(DX,GL,XL)..(EUR,GEN) LONG TRAY,BROWN,BROWN,TRIM4# |
1 | ||
| 58802-1203006 |
AE82,CE80,EE80..(DX,GL,XL)..(EUR,GEN) W/UPR CONSOLE,BROWN,BROWN,TRIM4# |
1 | ||
| 58802-1203004 |
AE82,CE80,EE80..(4DS,5D)..(DX,GL,XL)..(EUR,GEN) W/UPR CONSOLE,BLUE,BLUE,TRIM8# |
1 | ||
| 58811A - BOX, CONSOLE, FRONT | ||||
| 58811-1233004 |
AE8#,CE80,EE80..(4DS,5D)..(DX,GL,XL)..(EUR,GEN) LONG TRAY,BLUE,BLUE,TRIM8# |
1 | ||
| 58811-1233003 |
AE8#,CE80,EE80..(DX,GL,XL)..(EUR,GEN) LONG TRAY,GRAY,GRAY,TRIM1# |
1 | ||
| 58802-1203003 |
AE82,CE80,EE80..(DX,GL,XL)..(EUR,GEN) W/UPR CONSOLE,GRAY,GRAY,TRIM1# |
1 | ||
| 58811-1233006 |
AE8#,CE80,EE80..(DX,GL,XL)..(EUR,GEN) LONG TRAY,BROWN,BROWN,TRIM4# |
1 | ||
| 58802-1203006 |
AE82,CE80,EE80..(DX,GL,XL)..(EUR,GEN) W/UPR CONSOLE,BROWN,BROWN,TRIM4# |
1 | ||
| 58802-1203004 |
AE82,CE80,EE80..(4DS,5D)..(DX,GL,XL)..(EUR,GEN) W/UPR CONSOLE,BLUE,BLUE,TRIM8# |
1 | ||
| 58813 - BOX, CONSOLE, UPPER | ||||
| 58810-1246004 |
AE82,CE80,EE80..(4DS,5D)..(DX,GL,XL)..(EUR,GEN) BLUE,BLUE,TRIM8# |
1 | ||
| 58810-1246003 |
AE82,CE80,EE80..(DX,GL,XL)..(EUR,GEN) GRAY,GRAY,TRIM1# |
1 | ||
| 58810-1246006 |
AE82,CE80,EE80..(DX,GL,XL)..(EUR,GEN) BROWN,BROWN,TRIM4# |
1 | ||
| 58901A - BOX SUB-ASSY, CONSOLE, REAR | ||||
| 58901-1209003 |
AE8#,CE80,EE80..(CS,DX,S,STD,XL)..(ARL,GEN,SAA) GRAY,GRAY,TRIM1# |
1 | ||
| 58901-1209004 |
AE8#,CE80,EE80..(4DS,5D)..(CS,DX,S,STD,XL)..(ARL,GEN,SAA) BLUE,BLUE,TRIM8# |
1 | ||
| 58910-1201003 |
AE8#,EE80..(GL,GT)..(GEN,SAA) GRAY,GRAY,TRIM1# |
1 | ||
| 58910-1201004 |
AE8#,EE80..(4DS,5D)..GL..(GEN,SAA) BLUE,BLUE,TRIM8# |
1 | ||
| 58901-1209106 |
AE8#,CE80,EE80..(CS,S,STD,XL)..(ARL,GEN,SAA) BROWN,BROWN,TRIM4# |
1 | ||
| 58901-1213006 |
AE82,EE80..(GL,GT)..GEN BROWN,BROWN,TRIM4# |
1 | ||
| 58901-1209103 |
AE8#,CE80,EE80..(CS,S,STD,XL)..(ARL,GEN,SAA) GRAY,GRAY,TRIM1# |
1 | ||
| 58901-1213003 |
AE82,EE80..(GL,GT)..GEN GRAY,GRAY,TRIM1# |
1 | ||
| 58901-1213004 |
AE82,EE80..(4DS,5D)..GL..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 58901A - BOX SUB-ASSY, CONSOLE, REAR | ||||
| 58901-1209003 |
AE8#,CE80,EE80..(CS,DX,S,STD,XL)..(ARL,GEN,SAA) GRAY,GRAY,TRIM1# |
1 | ||
| 58901-1209004 |
AE8#,CE80,EE80..(4DS,5D)..(CS,DX,S,STD,XL)..(ARL,GEN,SAA) BLUE,BLUE,TRIM8# |
1 | ||
| 58910-1201003 |
AE8#,EE80..(GL,GT)..(GEN,SAA) GRAY,GRAY,TRIM1# |
1 | ||
| 58910-1201004 |
AE8#,EE80..(4DS,5D)..GL..(GEN,SAA) BLUE,BLUE,TRIM8# |
1 | ||
| 58901-1209106 |
AE8#,CE80,EE80..(CS,S,STD,XL)..(ARL,GEN,SAA) BROWN,BROWN,TRIM4# |
1 | ||
| 58901-1213006 |
AE82,EE80..(GL,GT)..GEN BROWN,BROWN,TRIM4# |
1 | ||
| 58901-1209103 |
AE8#,CE80,EE80..(CS,S,STD,XL)..(ARL,GEN,SAA) GRAY,GRAY,TRIM1# |
1 | ||
| 58901-1213003 |
AE82,EE80..(GL,GT)..GEN GRAY,GRAY,TRIM1# |
1 | ||
| 58901-1213004 |
AE82,EE80..(4DS,5D)..GL..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58951-1208004 |
AE8#,EE80..(4DS,5D)..GL..(GEN,SAA) BLUE,BLUE,TRIM8# |
1 | ||
| 58951-1208003 |
AE8#,EE80..(GL,GT)..(GEN,SAA) GRAY,GRAY,TRIM1# |
1 | ||
| 58905-1206004 |
AE82,EE80..(4DS,5D)..LHD..GL..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 58905-1206003 |
AE82,EE80..LHD..(GL,GT)..GEN GRAY,GRAY,TRIM1# |
1 | ||
| 58905-1206006 |
AE82,EE80..LHD..(GL,GT)..GEN BROWN,BROWN,TRIM4# |
1 | ||
| 58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58907-12010 |
AE82,EE80..(GL,GT)..GEN |
1 | ||
| 58953A - DOOR, CONSOLE COMPARTMENT, UPPER | ||||
| 58953-1202004 |
AE82,EE80..(4DS,5D)..GL..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 58953-1202003 |
AE82,EE80..(GL,GT)..GEN GRAY,GRAY,TRIM1# |
1 | ||
| 58953-1202006 |
AE82,EE80..(GL,GT)..GEN BROWN,BROWN,TRIM4# |
1 | ||
| 58967A - SPRING, CONSOLE DOOR STOPPER | ||||
| 58967-12010 |
AE82,EE80..(GL,GT)..GEN |
1 | ||
| 58968A - BRACKET, CONSOLE DOOR STOPPER | ||||
| 58968-12010 |
AE82,EE80..(GL,GT)..GEN |
2 | ||
| 58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK | ||||
| 58976-20010 |
AE8#,EE80..(GL,GT)..(GEN,SAA) |
1 | ||
| 58976-22020 |
AE82,EE80..(GL,GT)..GEN |
1 | ||
| 58996 - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-12050 |
AE8#,CE80,EE80..(DX,GL,GT,XL)..GEN |
1 | ||
| 58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3 | ||||
| 58997-12030 |
AE8#,EE80..(GL,GT)..(GEN,SAA) |
1 | ||
| 58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3 | ||||
| 58997-12030 |
AE8#,EE80..(GL,GT)..(GEN,SAA) |
1 | ||
| Common parts | ||||
| 90254-03002 | ||||
| 91661-40612 | ||||
| 93567-54512 | ||||
| 93567-55014 | ||||
| 93567-55016 | ||||
| 96160-00500 | ||||
| Linked diagrams | ||||
| 7404 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
