EE80L-EHMNS (1984)

Toyota Corolla Sed/Lb

Production Oct 1984 - Apr 1987
Engine 2EL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )EE80..MTM ; (8411- )MTM..ARL

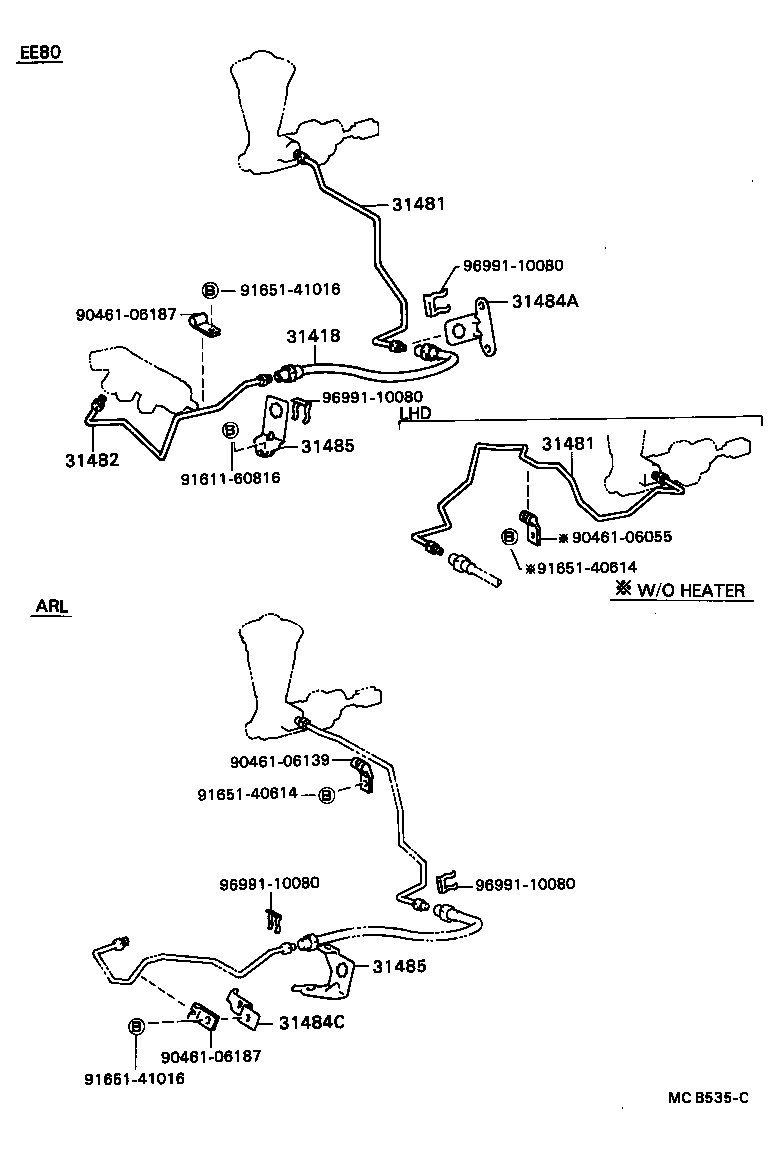

Click highlighted areas on diagram

diagram 31418 31481 31481 31482 31484A 31484C 31485 31485 9046106055 9046106139 9046106187 9046106187 9161160816 9165140614 9165140614 9165141016 9165141016 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
31418 - HOSE, CLUTCH
90931-01004

AE8#,EE80..LHD..MTM

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-12110

AE8#,EE80..LHD..MTM

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-12110

AE8#,EE80..LHD..MTM

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-12050

AE8#,CE80,EE80..MTM..(EUR,GEN,SA,SAA)

 1
Common parts
90461-06055
90461-06139
90461-06187
91611-60816
91651-40614
91651-41016
96991-10080
