EE80L-EHMDSW (1984)

Toyota Corolla Sed/Lb

Production Oct 1984 - Apr 1987
Engine 2EL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410-8505)3DS,5DS..DX,STD..EUR,GEN

Click highlighted areas on diagram

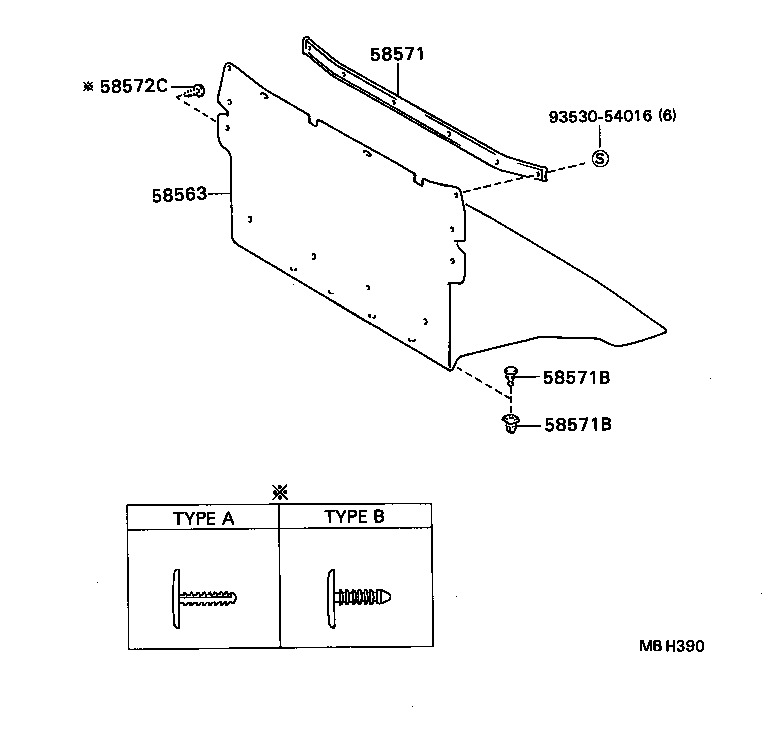

diagram 58563 58571 58571B 58571B 58572C 9353054016
Part # Description Qty Price
58563 - MAT, REAR FLOOR
58570-1219003

AE8#,CE80,EE80..(3DS,5DS)..(DX,STD,XL)..(EUR,GEN)

GRAY,GRAY,TRIM1#

 1
58570-1219006

AE8#,CE80,EE80..(3DS,5DS)..(DX,STD,XL)..(EUR,GEN)

BROWN,BROWN,TRIM4#

 1
58571 - SET PLATE, REAR FLOOR MAT, FRONT
58583-1604013

AE8#,CE80,EE80..(3DS,5DS)..(DX,STD,XL)..(EUR,GEN)

GRAY,GRAY,TRIM1#

 1
58583-1604016

AE8#,CE80,EE80..(3DS,5DS)..(DX,STD,XL)..(EUR,GEN)

BROWN,BROWN,TRIM4#

 1
58571B - CLIP, REAR FLOOR MAT SET
90467-0702616

AE8#,CE80,EE80..(3DS,5DS)..(DX,STD,XL)..(EUR,GEN)

UPR,BROWN,BROWN,TRIM4#

 4
90467-0702613

AE8#,CE80,EE80..(3DS,5DS)..(DX,STD,XL)..(EUR,GEN)

UPR,GRAY,GRAY,TRIM1#

 4
90467-10023

AE8#,CE80,EE80..(3DS,5DS)..(DX,STD,XL)..(EUR,GEN)

LWR

 4
58571B - CLIP, REAR FLOOR MAT SET
90467-0702616

AE8#,CE80,EE80..(3DS,5DS)..(DX,STD,XL)..(EUR,GEN)

UPR,BROWN,BROWN,TRIM4#

 4
90467-0702613

AE8#,CE80,EE80..(3DS,5DS)..(DX,STD,XL)..(EUR,GEN)

UPR,GRAY,GRAY,TRIM1#

 4
90467-10023

AE8#,CE80,EE80..(3DS,5DS)..(DX,STD,XL)..(EUR,GEN)

LWR

 4
58572C - CLIP, REAR FLOOR MAT SET
90467-0603706

AE8#,CE80,EE80..(3DS,5DS)..(DX,STD,XL)..(EUR,GEN)

TYPE B,BROWN,BROWN,TRIM4#

 8
90467-0704903

AE8#,CE80,EE80..(3DS,5DS)..(DX,STD,XL)..(EUR,GEN)

TYPE A,GRAY,GRAY,TRIM1#

 8
90467-0704906

AE8#,CE80,EE80..(3DS,5DS)..(DX,STD,XL)..(EUR,GEN)

TYPE A,BROWN,BROWN,TRIM4#

 8
90467-0603713

AE8#,CE80,EE80..(3DS,5DS)..(DX,STD,XL)..(EUR,GEN)

TYPE B,GRAY,GRAY,TRIM1#

 8
Common parts
93530-54016
